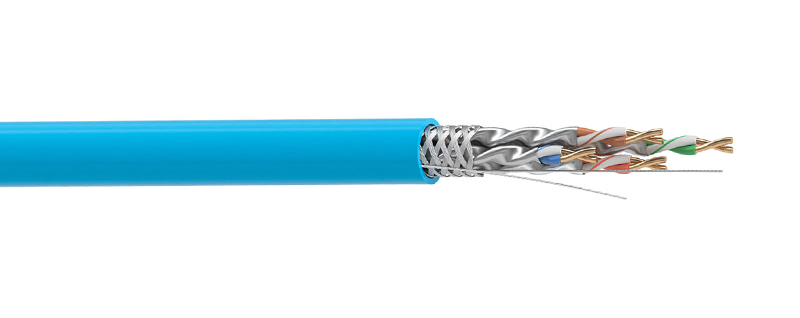

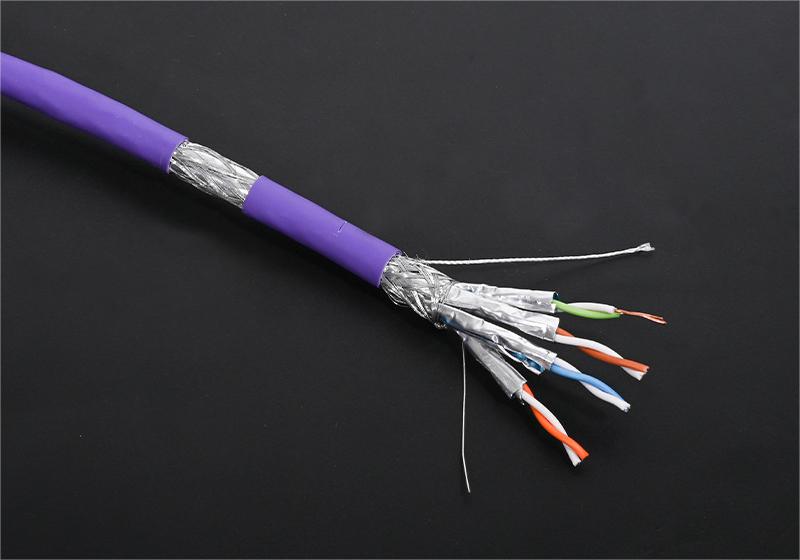

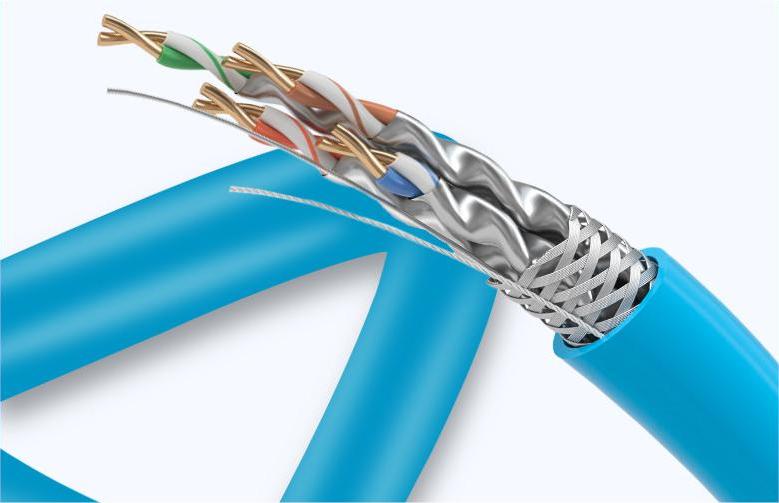

CAT6A wire SFTP LAN cable
CAT6A wire SFTP LAN cable
Item Number:Cat6A SFTP
- Model: CAT6A SFTP LAN CABLE
- Size: 23AWG Solid/Stranded
- Color: White/Blue/Black/Gray/Custom
- Insulation: PE/Custom
- Shield: Polyester/Aluminum Foil shield/Copper braiding shield
- Jacket: PVC/LSOH/Custom
- Packing: 305M(1000FT)/CTN/Custom
- OD: 7.5mm/Custom
- Conductor Material: Bare Copper or CCA/Custom
- Drain wire: None/Tinned Copper/Custom
Environmental Specifications:
Environmental Space – Non-plenum
Flame Test Method – CMR
Installation Temperature – 0 °C to +60 °C (+32 °F to +140 °F)
Operating Temperature – -20 °C to +60 °C (-4 °F to +140 °F)
General Specifications:
Cable Type
SFTP (double shielded)
Pairs, quantity
4
Cable Component Type
Horizontal
Conductor Gauge, singles
23AWG
Conductor Type, singles
Solid/Stranded
Characteristics:
- Performance up to 550 MHz, CAT6 is only 250 MHz.Suitable for 10GBASE-T, CAT6A can support up to 100 meters when transmitting 10Gbps.
- Enhanced protection against crosstalk and system noise.
- There are many brands sold on the market, so everyone must choose a large brand to ensure the quality of the network cable.
- With aluminum foil shielding and copper braiding shielding, it has a much stronger anti-interference ability
- Transmission rate: 1000Mbps
- Suitable for indoor applications
In general, CAT6A SFTP has stronger shielding capabilities, higher transmission rates, and greater flexibility than CAT6A FTP.
Contact Us Now
Categories
Category 6A SFTP Cable
| Electrical Specifications | |
| ANSI/TIA Category | 6A SFTP |
| dc Resistance Unbalance, maximum | 5 % |
| dc Resistance, maximum | 9.38 ohms/100 m |
| Mutual Capacitance | 5.6 nF/100 m @ 1 kHz |
| Nominal Velocity of Propagation (NVP) | 69 % |
| Operating Frequency, maximum | 100 MHz |
| Operating Voltage, maximum | 80 V |
| Transmission Standards | ANSI/TIA-568-C.2 CENELEC EN 50288-3-1 ISO/IEC 11801 Class D |
| Dielectric Strength, minimum | 1500 Vac 2500 Vdc |
Description
What is CAT6A SFTP cable?
CAT6A SFTP cable specification
| Product Construction | |||||
| Conductor | Material | Pure copper | |||
| AWG | 23 | ||||
| Diameter（mm） | 0.575 | ||||
| Insulation | Material | Foam PE | |||
| Average Thickness（mm） | 0.29 | ||||
| Minimum Thickness（mm） | 0.25 | ||||
| Diameter（mm） | 1.15 | ||||
| pair Twist Diameter（mm） | 2.30 | ||||
| Seperator（mm） | w=5.5,h=0.5 | ||||
| PEL（mm） | w=24,h=0.015 | ||||
| Drain Wire（mm） | 0.40 | ||||
| Cable Diameter（mm） | 6.50 | ||||
| Aluminum Foil（mm） | w=25,h=0.07 | ||||
| Braid（mm） | 16/8/0.1 | ||||
| Rip-cord | 1*3D | ||||
| Jacket | Material | PVC | |||
| Average Thickness（mm） | 0.58 | ||||
| Minimum Thickness（mm） | 0.53 | ||||
| Diameter（mm） | 8.00 | ||||
| Color | |||||
| Insulation Wire | Blue*White/Blue | Orange*White/Orange | |||
| Green*White/Green | Brown*White/Brown | ||||
| Jacket | According to the customer's requirement | ||||
CAT6A SFTP Electrical Characteristic
| Electrical Characteristic | ||||||
| Impedance Ω | Propagation Delay Skew ns/100m | Capacitance Unbalance | Conductor Resistance@20℃ Ω/km | Unbalance Resistance % | ||
| 100±15 | <=45 | <=330 | <=9.5 | <=5 | ||
| Frequency MHZ | Return Loss >=dB | Attenuation <=dB/100m | Next >=dB/100m | PS Next >=dB/100m | Elfext >=dB/100m | PS Elfext >=dB/100m |
| 1 | 20.00 | 2.08 | 78.00 | 75.0 | 78.0 | 75.0 |
| 4 | 23.01 | 3.75 | 78.00 | 75.0 | 78.0 | 75.0 |
| 8 | 24.52 | 5.22 | 78.00 | 75.0 | 77.2 | 74.2 |
| 10 | 25.00 | 5.82 | 78.00 | 75.0 | 75.3 | 72.3 |
| 16 | 25.00 | 7.34 | 78.00 | 75.0 | 71.2 | 68.2 |
| 20 | 25.00 | 8.21 | 78.00 | 75.0 | 69.3 | 66.3 |
| 25 | 24.32 | 9.18 | 78.00 | 75.0 | 67.3 | 64.3 |
| 31.25 | 23.64 | 10.26 | 78.00 | 75.0 | 65.4 | 62.4 |
| 50 | 22.21 | 13.01 | 78.00 | 75.0 | 61.3 | 58.3 |
| 62.5 | 21.54 | 14.57 | 78.00 | 75.0 | 59.4 | 56.4 |
| 100 | 20.11 | 15.82 | 75.40 | 72.40 | 55.3 | 52.3 |
| 125 | 19.43 | 20.77 | 73.90 | 71.0 | 53.4 | 50.4 |
| 200 | 18.00 | 26.47 | 70.90 | 67.9 | 49.3 | 46.3 |
| 250 | 17.32 | 29.73 | 69.40 | 66.4 | 47.3 | 44.3 |
| 300 | 17.32 | 32.69 | 68.20 | 65.2 | 45.8 | 42.8 |
| 350 | 17.32 | 35.44 | 67.20 | 64.2 | 44.4 | 41.4 |
| 400 | 17.32 | 38.01 | 66.40 | 63.4 | 43.3 | 40.3 |
| 500 | 17.32 | 42.76 | 64.90 | 61.9 | 41.3 | 38.3 |
CAT6A SFTP Mechanical Characteristic
| Mechanical Characteristic | Product Standard | ||||||
| Testing Object | Jacket Material | Rated Temperature（℃） | 75 | ||||
| Testing Material | PVC | YD/T1019-2001 | Meet | ||||
| Aging Condition（℃*hrs） | 100*168 | UL/C(UL)/ETL | |||||
| Before Aging | Tensile Strength（Mpa） | >=13.5 | ANSI/EIA568C.2 | ||||
| Elongation(%) | >=150 | ISO/IEC 11801 | |||||
| After Aging | Tensile Strength（Mpa） | >=85% of unaged | Packaging | 305M/Box/Reel | |||
| Elongation(%) | >=50% of unaged | Printing | According to the customer's requirement | ||||
| Cold Bending（-20±2℃*4hrs） | No crack | ||||||
