CAT6 wire FTP LAN cable

Item Number:Cat6 FTP

Model: CAT6 FTP LAN CABLE
Size: 23AWG Solid/Stranded
Color: White/Blue/Black/Gray/Custom
Insulation: PE
Shield: Polyester/Aluminum Foil shield
Jacket: PVC/LSOH/Custom
Packing: 305M(1000FT)/CTN/Custom
OD: 7.24mm/Custom
Conductor Material: Bare Copper
Drain wire: Tinned Copper

Environmental Specifications:

Environmental Space – Non-plenum
Flame Test Method – CMR
Installation Temperature – 0 °C to +60 °C (+32 °F to +140 °F)

Operating Temperature – -20 °C to +60 °C (-4 °F to +140 °F)

General Specifications:

Cable Type

F/UTP (shielded)

Pairs, quantity
4

Cable Component Type
Horizontal

Conductor Gauge, singles
23AWG

Conductor Type, singles
Solid/Stranded

Characteristics:

Performance up to 250-300 MHz, CAT5E is only 100 MHz.Suitable for 10GBASE-T
Enhanced protection against crosstalk and system noise.
There are many brands sold on the market, so everyone must choose a large brand to ensure the quality of the network cable.
With aluminum foil shielding, it has a stronger anti-interference ability
Suitable for indoor applications

In general, CAT6 FTP has stronger shielding capabilities, higher transmission rates, and greater flexibility than CAT6 UTP.

Category 6 F/UTP Cable

Electrical Specifications
ANSI/TIA Category	6
dc Resistance Unbalance, maximum	5 %
dc Resistance, maximum	9.38 ohms/100 m
Mutual Capacitance	5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)	68 %
Operating Frequency, maximum	250 MHz
Operating Voltage, maximum	80 V
Transmission Standards	ANSI/TIA-568-C.2 CENELEC EN 50288-6-1 ISO/IEC 11801 Class E
Dielectric Strength, minimum	1500 Vac 2500 Vdc

Description

What is a Cat6 FTP cable?

Cat6 FTP stranded CM rated bulk ethernet cable is ideally suited for applications such as Gigabit Ethernet, ATM, and Broadband Video. This cable, with a gauge of 26AWG, is excellent for shorter cable runs and crafting custom length patch cords. To enhance its protection against external interference and electromagnetic interference (EMI), this cable features shielding. It includes a comprehensive metal foil encasing all four twisted pairs, along with a drain wire for effective grounding. Constructed with pure copper, this 26AWG Cat6 shielded stranded cable ensures superior signal performance. It also meets UL certification standards, ensuring top-notch safety and performance compliance. The slimmer design of the 26AWG Cat6 cable compared to standard 24AWG cables allows for more space-efficient installations and increased cable flexibility.

Features:

Capable of gigabit speeds up to 328 feet, and up to 10Gb speeds at shorter distances.
Shielding provides robust protection from EMI.
Stranded conductors offer enhanced flexibility and longevity.
Pure copper stranded wires ensure optimal signal strength.
Slimmer 26AWG cables offer space-saving benefits in patch panels and network setups.

Our FTP (Foil-screened Twisted Pair) CAT-6 cables are specifically engineered for industrial environments where heavy noise could cause interference. These sturdy CAT 6 cables support network speeds up to 1000 Mbps (Gigabit).

Description and Benefits:

The cable comprises 23 AWG 4 Pair F/UTP Category 6, tested to 550Mhz, and is a premium grade for high-performance network cabling.
Features like cross web filler enhance performance.
Improved cable temperature rating (750 C Riser) for heightened protection.
Sequential footage markings for ease of use.
Verified performance by third-party testing.

Applications:

Suitable for a range of network protocols including IEEE 802.3 1000Base-T, 100Base-Tx, 10Base-T, PoE+.
Compatible with ANSI/TIA 854: 1000Base-TX, CDDI, Token Ring, ATM.
Ideal for Digital Video, Broadband, and Baseband Analog Video applications.

Standard Compliances:

Compliant with ANSI/TIA 568-C.2, ANSI/TIA 862 (Building Automation).
Conforms to ISO/IEC 11801 Ed. 2.0 (Class EI).
ICEA 8-102-700 (Category 6 or 5E) compliant.
Meets REACH and CPR compliance, fully adhering to 305/2011 & EN 50575:2014-09.
RoHS Compliant as per Directive 2002/95/EG.

cat6 FTP

Product Construction
Conductor	Material	Pure copper
	AWG	23
	Diameter（mm）	0.57
Insulation	Material	PE
	Average Thickness（mm）	0.29
	Minimum Thickness（mm）	0.25
	Diameter（mm）	1.15
pair Twist Diameter（mm）		2.30
Seperator（mm）		w=4.5,h=0.5
PEL（mm）		w=24,h=0.015
Drain Wire（mm）		0.50
Cable Diameter（mm）		6.30
Aluminum Foil（mm）		w=25,h=0.07
Rip-cord		1*3D
Jacket	Material	PVC
	Average Thickness（mm）	0.58
	Minimum Thickness（mm）	0.53
	Diameter（mm）	7.80
Color
Insulation Wire	Blue*White/Blue	Orange*White/Orange
	Green*White/Green	Brown*White/Brown
Jacket	Accoring to customer's requirement

CAT6 FTP Electrical Characteristic

Electrical Characteristic
Impedance Ω	Propagation Delay Skew ns/100m	Capacitance Unbalance		Conductor Resistance@20℃ Ω/km		Umbalance Resistance %
100±15	<=45	<=330		<=9.5		<=5
Frequency MHZ	Return Loss >=dB	Attenuation <=dB/100m	Next >=dB/100m	PS Next >=dB/100m	Elfext >=dB/100m	PS Elfext >=dB/100m
1	20.00	1.85	65.31	64.0	63.8	60.8
4	23.01	3.69	56.28	55.0	51.7	48.7
8	24.52	5.26	51.77	48.8	45.7	42.7
10	25.00	5.89	50.31	47.3	43.8	40.8
16	25.00	7.51	47.25	44.3	39.7	36.7
20	25.00	8.42	45.80	42.8	37.7	34.7
25	24.32	9.47	44.35	41.3	35.8	32.8
31.25	23.64	10.64	42.89	39.9	33.9	30.9
50	22.21	13.64	39.83	36.8	29.8	26.8
62.5	21.54	15.36	38.38	35.4	27.8	24.8
100	20.11	19.78	35.31	32.31	23.75	20.75
125	19.43	22.34	33.86	30.9	21.8	18.8
200	18.00	28.97	30.80	27.8	17.7	14.7
250	17.32	32.84	29.35	26.3	15.8	12.8

CAT6 FTP Mechanical Characteristic

Mechanical Characteristic			Product Standard
Testing Object		Jacket Material	Rated Temperature（℃）	75
Testing Material		PVC	YD/T1019-2001	Meet
*Aging Condition（℃hrs）**		*100168**	UL/C(UL)/ETL
Before Aging	Tensile Strength（Mpa）	>=13.5	ANSI/EIA568C.2
	Elongation(%)	>=150	ISO/IEC 11801
After Aging	Tensile Strength（Mpa）	>=85% of unaged	Packaging	305M/Box/Reel
	Elongation (%)	>=50% of unaged	Printing	According to customer's requirement
*Cold Bending（-20±2℃4hrs）**		No crack

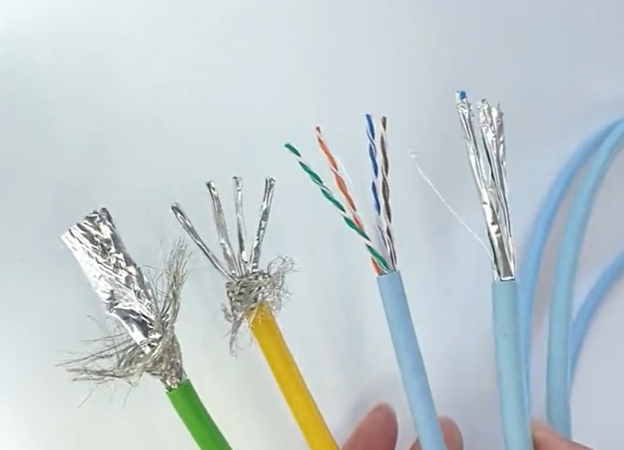

What is the difference between FTP and UTP Cat6?

Understanding the distinction between FTP and UTP Cat6 cables is key to selecting the right cable for your networking needs. Cat6 U/UTP signifies a cable comprising 4 unshielded twisted pairs without any external shielding. In contrast, Cat6 F/UTP consists of 4 unshielded twisted pairs but is equipped with an external foil shield, categorizing it as a shielded cable.

To clarify these types, Ethernet cables are often described using a dual-part acronym system:

The initial segment (prior to the slash) denotes the cable's overall shielding.
The latter segment (post slash) specifies the shielding for each individual pair within the cable.

Here's a breakdown of the various types:

U/UTP: An unshielded cable with unshielded twisted pairs.
U/FTP: An unshielded cable, but with each twisted pair individually foil-shielded.
S/UTP: A shielded cable with unshielded twisted pairs inside.
F/UTP: A cable with an outer foil shield and unshielded twisted pairs.
SF/UTP: Both shielded and foil-wrapped cable containing unshielded twisted pairs.
S/FTP: A shielded cable with each twisted pair also foil-shielded.
F/FTP: A foil-shielded cable with each twisted pair individually foil-shielded.
SF/FTP: A cable that combines both foil and shielded protection overall, with each twisted pair also foil-shielded.

Each type offers different levels of protection against interference, making them suitable for various environments and applications.

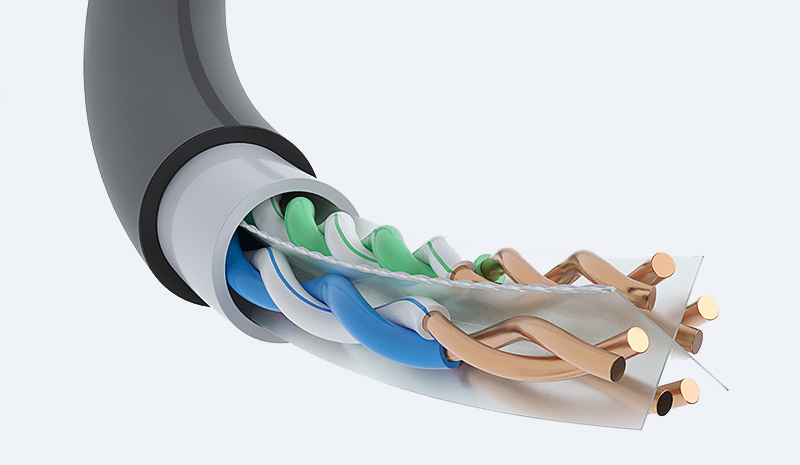

cat6 ftp cable

Is FTP better than UTP?

FTP cables, often labeled as F/UTP, are designed with an encompassing foil tape shield. This shielding is critical for safeguarding against electromagnetic interference (EMI) and crosstalk. When compared to UTP (Unshielded Twisted Pair) cables, FTP (Foiled Twisted Pair) cables exhibit a superior bandwidth and enhanced resistance to interference. However, these benefits come with a trade-off: FTP cables are generally more expensive and offer somewhat reduced flexibility in bending compared to UTP cables.
