CAT6 wire SFTP LAN cable

Item Number:Cat6 SFTP

Model: CAT6 SFTP LAN CABLE
Size: 23AWG Solid/Stranded
Color: White/Blue/Black/Gray/Custom
Insulation: PE/HDPE/Custom
Shield: Polyester/Aluminum Foil shield/Copper braiding shield/Custom
Jacket: PVC/LSOH/PE/Custom
Packing: 305M(1000FT)/CTN
OD: 7.5mm/Custom
Conductor Material: Bare Copper or CCA
Drain wire: None/Tinned Copper/Custom

Environmental Specifications:

Environmental Space – Non-plenum
Flame Test Method – CMR
Installation Temperature – 0 °C to +60 °C (+32 °F to +140 °F)

Operating Temperature – -20 °C to +60 °C (-4 °F to +140 °F)

General Specifications:

Cable Type

SFTP (double shielded)

Pairs, quantity
4

Cable Component Type
Horizontal

Conductor Gauge, singles
23AWG

Conductor Type, singles
Solid/Stranded

Characteristics:

Performance up to 250-300 MHz, CAT5E is only 100 MHz.Suitable for 10GBASE-T
Enhanced protection against crosstalk and system noise.
There are many brands sold on the market, so everyone must choose a large brand to ensure the quality of the network cable.
With aluminum foil shielding and copper braiding shielding, it has a much stronger anti-interference ability
Suitable for indoor applications

In general, CAT6 SFTP has stronger shielding capabilities, higher transmission rates, and greater flexibility than CAT6 FTP.

Category 6 SFTP Cable

Electrical Specifications
ANSI/TIA Category	6
dc Resistance Unbalance, maximum	5 %
dc Resistance, maximum	9.38 ohms/100 m
Mutual Capacitance	5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)	68 %
Operating Frequency, maximum	250 MHz
Operating Voltage, maximum	80 V
Transmission Standards	ANSI/TIA-568-C.2 CENELEC EN 50288-6-1 ISO/IEC 11801 Class E
Dielectric Strength, minimum	1500 Vac 2500 Vdc

Description

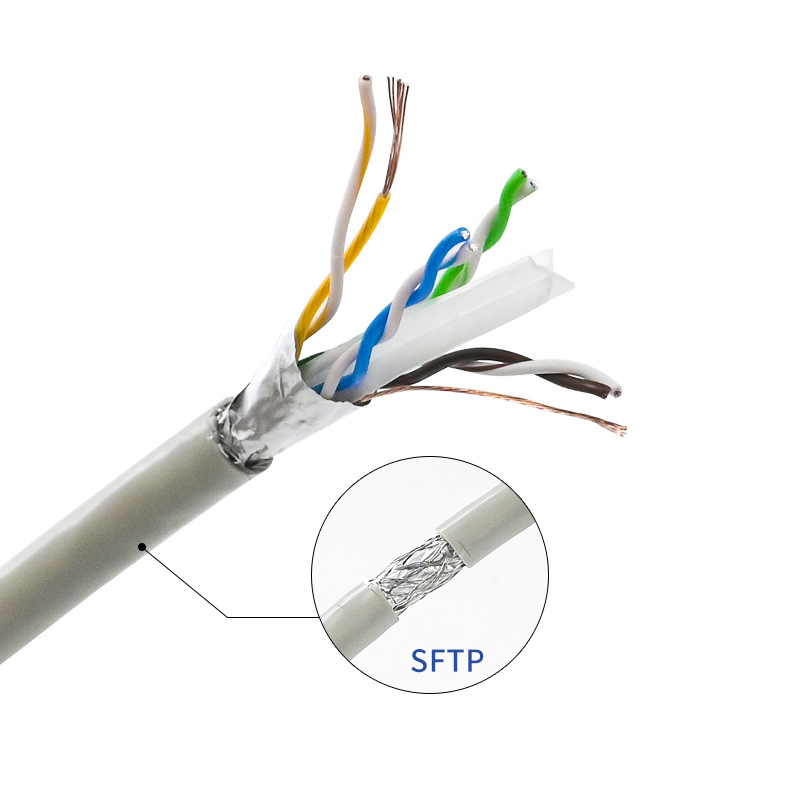

What is CAT6 SFTP cable?

The CAT6 SFTP (Shielded Foiled Twisted Pair) stranded wire Ethernet cable is expertly tailored for mobile application use. Boasting a highly flexible yet sturdy jacket, it ensures consistent and reliable functionality in demanding situations. This cable incorporates advanced shielding technology, effectively preventing external interferences from impacting signal integrity, thus promoting optimal protection and swift data transfer.

Designed to meet your Local Area Network (LAN) connectivity requirements, CAT6 SFTP LAN Cables are fully equipped to support the Gigabit Ethernet (1000 Base-T) standard and are backward compatible. They function efficiently across a bandwidth spectrum of up to 250 MHz.

This high-caliber Cat 6 ethernet LAN cable delivers widespread connectivity to both home and office settings, facilitating a robust, high-speed network connection. It aligns with the Gigabit Ethernet (1000 Base-T) standard, offering a transmission bandwidth capacity of up to 250MHz.

Prepare your network for the future with these cables, which are ready for 10-Gigabit Ethernet while retaining compatibility with existing Fast Ethernet and Gigabit Ethernet networks.

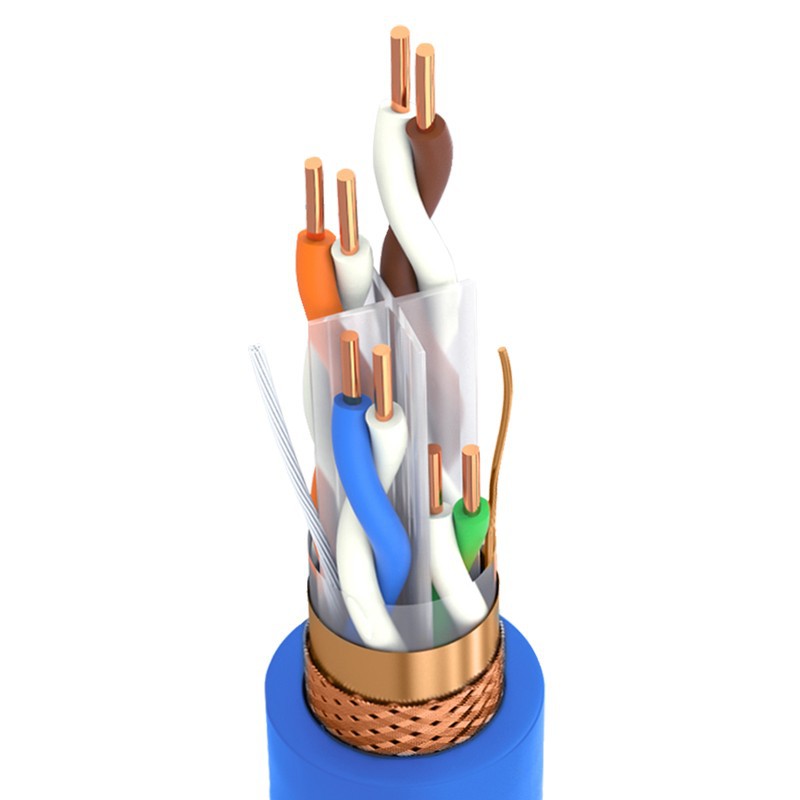

The construction of the cable includes 4 pairs of double-shielded twisted pairs (SFTP), using a 23 AWG conductor. The enhanced thickness of the conductor aids in ensuring heightened reliability and increased data transmission rates, along with a superior signal-to-noise ratio, thus boosting overall network performance and stability.

cat6 sftp

Product Structure
Conductor	Material	Pure copper
	AWG	23
	Diameter（mm）	0.57
Insulation	Material	PE
	Average Thickness（mm）	0.29
	Minimum Thickness（mm）	0.25
	Diameter（mm）	1.15
pair Twist Diameter（mm）		2.30
Seperator（mm）		w=4.5,h=0.5
PEL（mm）		w=24,h=0.015
Drain Wire（mm）		0.50
Cable Diameter（mm）		6.30
Aluminum Foil（mm）		w=25,h=0.07
Rraid（mm）		16/10/0.12
Rip-cord		1*3D
Jacket	Material	PVC
	Average Thickness（mm）	0.58
	Minimum Thickness（mm）	0.53
	Diameter（mm）	7.80
Color
Insulation Wire	Blue*White/Blue	Orange*White/Orange
	Green*White/Green	Brown*White/Brown
Jacket	Accoring to customer's requirement

CAT6 SFTP Electrical Characteristic

Electrical Characteristic
Impedance Ω	Propagation Delay Skew ns/100m	Capacitance Unbalance		Conductor Resistance@20℃ Ω/km		Unbalance Resistance %
100±15	<=45	<=330		<=9.5		<=5
Frequency MHZ	Return Loss >=dB	Attenuation <=dB/100m	Next >=dB/100m	PS Next >=dB/100m	Elfext >=dB/100m	PS Elfext >=dB/100m
1	20.00	1.85	65.31	64.0	63.8	60.8
4	23.01	3.69	56.28	55.0	51.7	48.7
8	24.52	5.26	51.77	48.8	45.7	42.7
10	25.00	5.89	50.31	47.3	43.8	40.8
16	25.00	7.51	47.25	44.3	39.7	36.7
20	25.00	8.42	45.80	42.8	37.7	34.7
25	24.32	9.47	44.35	41.3	35.8	32.8
31.25	23.64	10.64	42.89	39.9	33.9	30.9
50	22.21	13.64	39.83	36.8	29.8	26.8
62.5	21.54	15.36	38.38	35.4	27.8	24.8
100	20.11	19.78	35.31	32.31	23.75	20.75
125	19.43	22.34	33.86	30.9	21.8	18.8
200	18.00	28.97	30.80	27.8	17.7	14.7
250	17.32	32.84	29.35	26.3	15.8	12.8

CAT6 SFTP Mechanical Characteristic

Mechanical Characteristic			Product Standard
Testing Object		Jacket Material	Rated Temperature（℃）	75
Testing Material		PVC	YD/T1019-2001	Meet
*Aging Condition（℃hrs）**		*100168**	UL/C(UL)/ETL
Before Aging	Tensile Strength（Mpa）	>=13.5	ANSI/EIA568C.2
	Elongation(%)	>=150	ISO/IEC 11801
After Aging	Tensile Strength（Mpa）	>=85% of unaged	Packaging	305M/Box/Reel
	Elongation(%)	>=50% of unaged	Printing	According to customer's requirement
*Cold Bending（-20±2℃4hrs）**		No crack

SFTP (Shielded Foil Twisted Pair) for CAT6 cables, while offering benefits, faces certain limitations:

Why not to use SFTP?

Non-standardized Protocol: Unlike the well-defined FTP (File Transfer Protocol), SFTP lacks a uniform set of rules. It's a broader term encompassing various SSH-based implementations. This diversity can lead to compatibility issues, as not all SFTP servers and clients support identical features. For example, certain SFTP servers might not support resume or append functions, and some clients may lack capabilities like file locking.

Performance Overhead: CAT6 SFTP cables, utilizing SSH for encryption, inherently have higher processing and bandwidth needs compared to FTP cables. This encryption process can reduce data transfer speeds. SFTP's reliance on a single TCP connection may also restrict data throughput and concurrent file transfers. Conversely, FTP cables can facilitate parallel file transfers over multiple TCP connections, boosting speed and efficiency. While FTP offers data compression to reduce file sizes, SFTP typically lacks default compression support.

Firewall and Proxy Challenges: CAT6 SFTP cables might confront hurdles with firewall and proxy configurations. SFTP generally operates on SSH's port 22, which some firewalls or proxies may restrict, impeding connection establishment and data transfers. In contrast, FTP cables can adapt to various firewall and proxy settings using different ports and modes. FTP's passive mode, for instance, can navigate firewall limitations, and its TLS options can resolve certain proxy issues.

Security Considerations: While CAT6 SFTP cables are generally more secure than FTP, they're not immune to security risks. Vulnerabilities like man-in-the-middle attacks can compromise SFTP cables. Additionally, SFTP can inadvertently reveal sensitive file information. Addressing these security concerns often entails implementing complex measures like robust password policies and access controls.

Protocol Alternatives: Depending on specific requirements, alternative protocols might be more apt than CAT6 SFTP cables in certain situations. Protocols like FTPS, SCP, and WebDAV present diverse features. FTPS, extending FTP with SSL or TLS encryption, offers similar security as SFTP with greater FTP compatibility. SCP provides secure file transfers with limited functionality, and WebDAV facilitates file transfers over HTTP/HTTPS with broader web service integration but less security.

In summary, while CAT6 SFTP cables offer heightened security and interference protection, they come with considerations regarding performance, firewall compatibility, and potential security trade-offs. Alternate protocols might offer solutions more attuned to specific user needs and contexts.

cat6 sftp cable

What is CAT6 outdoor SFTP cable?

The CAT6 Outdoor SFTP cable, designed for external deployment, features a dual-layered protective sheathing. Its external coating is crafted from black PE material, renowned for its water-repellent properties. Beneath lies an inner PVC layer, enhancing the cable's durability against tension, compression, and UV exposure. This CAT6 Outdoor SFTP cable is engineered for optimal performance in outdoor settings, safeguarding the internal wiring from weather-related damage and enhancing oxidation resistance.

Specifications:

Type: CAT6 SFTP Outdoor Cable
Functionality: Delivers high-speed network connectivity for home or office settings.
Compatibility: Supports Gigabit Ethernet (1000 Base-T), with operational bandwidth up to 250MHz, while maintaining backward compatibility.
Construction: Comprises 4 pairs of shielded twisted pairs (SFTP), specifically for outdoor use.
Gauge: 23 AWG, ensuring a thicker conductor diameter for enhanced reliability and data transmission at higher rates.
Durability: Offers robust protection against water and UV rays, along with resistance to tensile and compressive forces, ensuring prolonged oxidation resistance.
Standards Compliance: Meets the specifications of TIA/EIA-568A/568B and ISO 11801.
Packaging: Available on Wooden Reels for ease of installation; customizable options.
