best flexible electrical hook up wire lead wire manufacturers

What is the hook up wire？

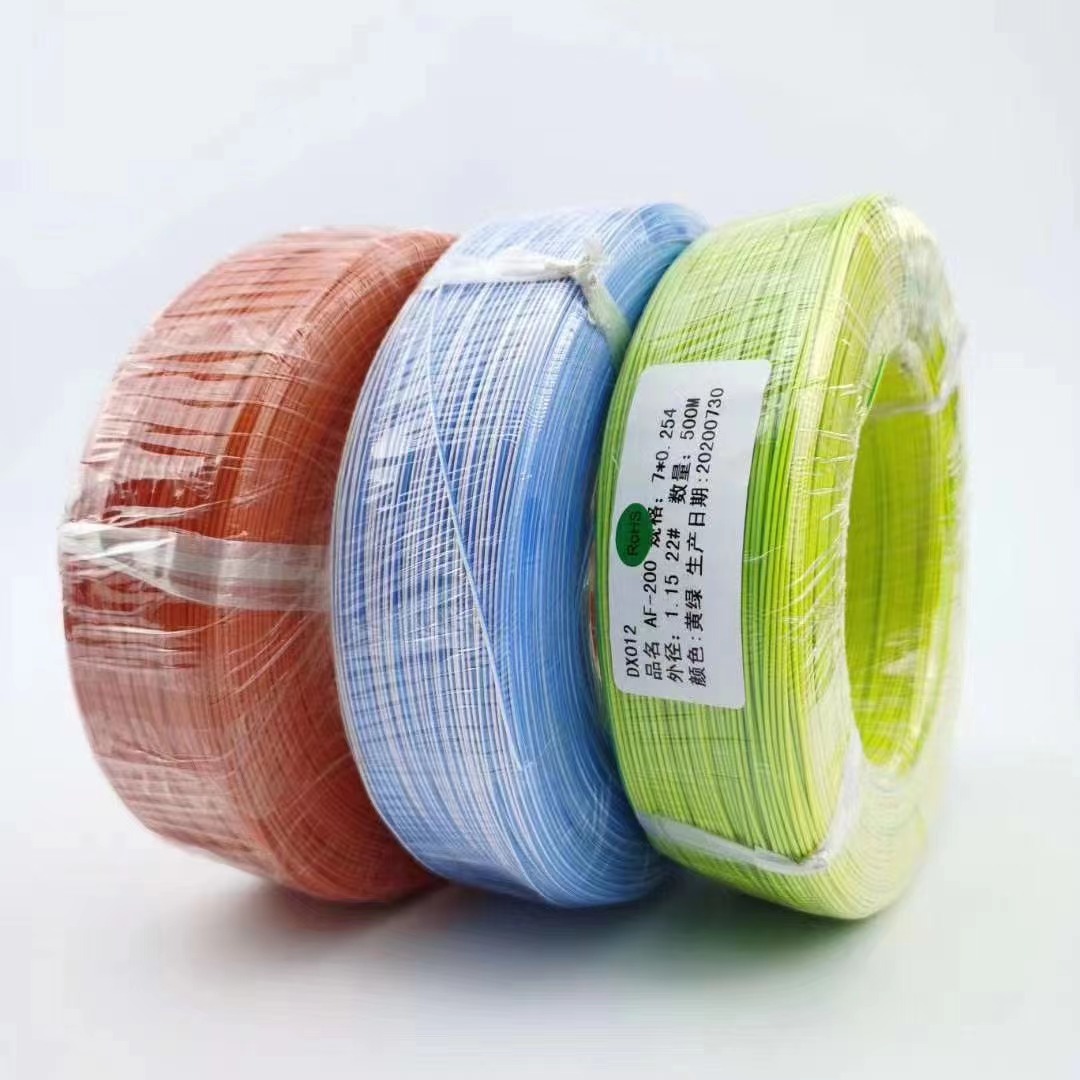

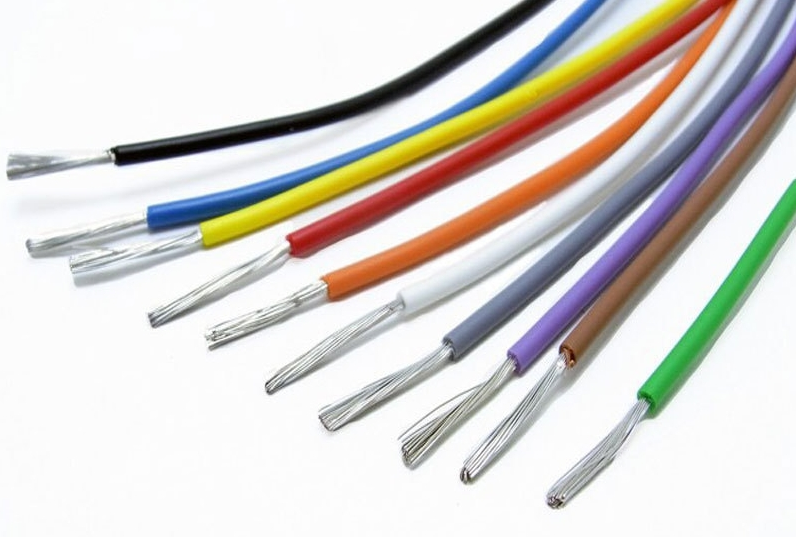

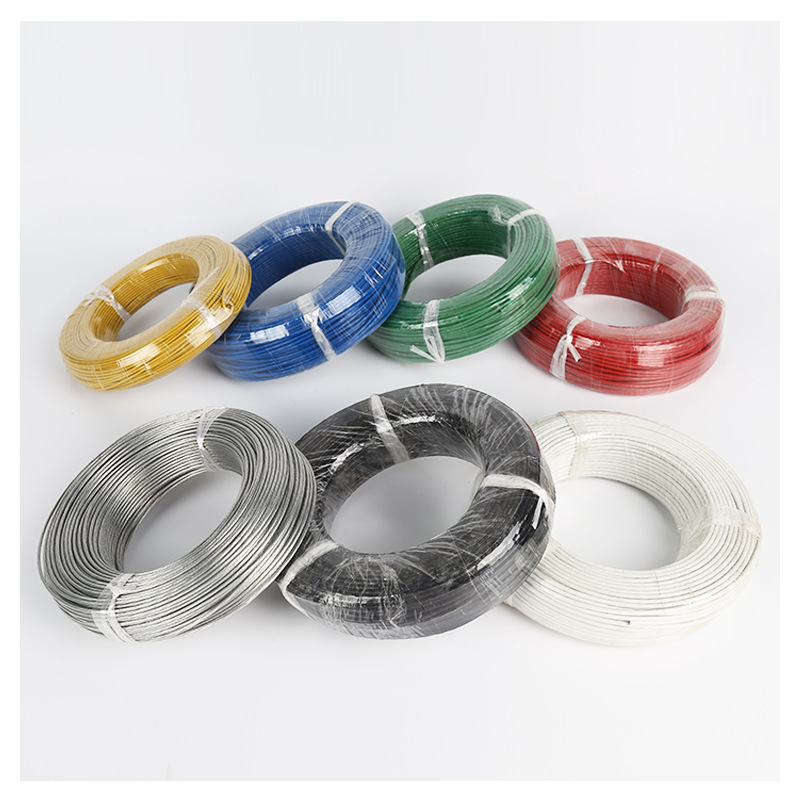

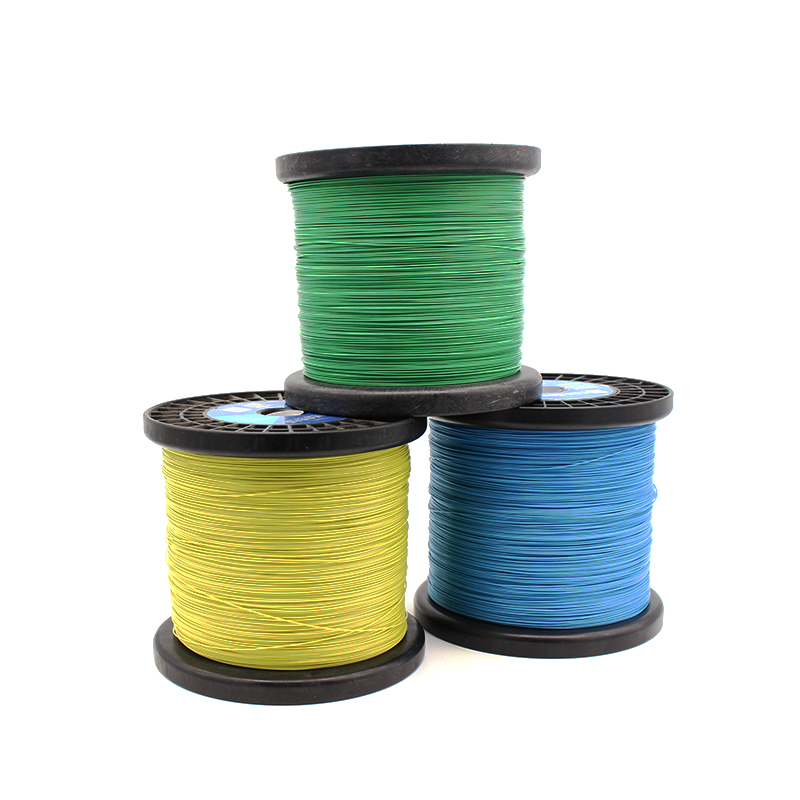

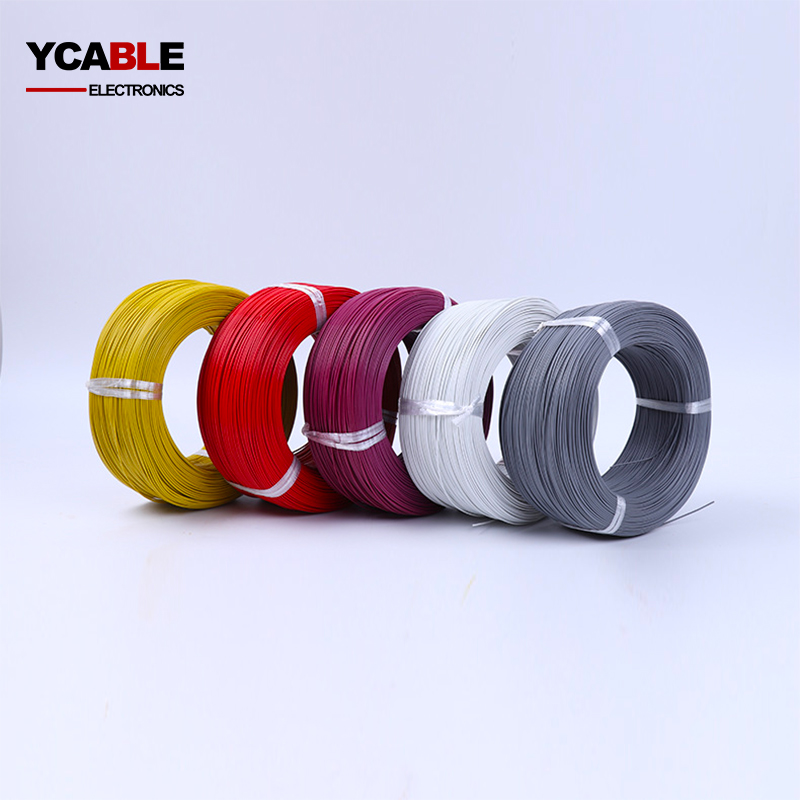

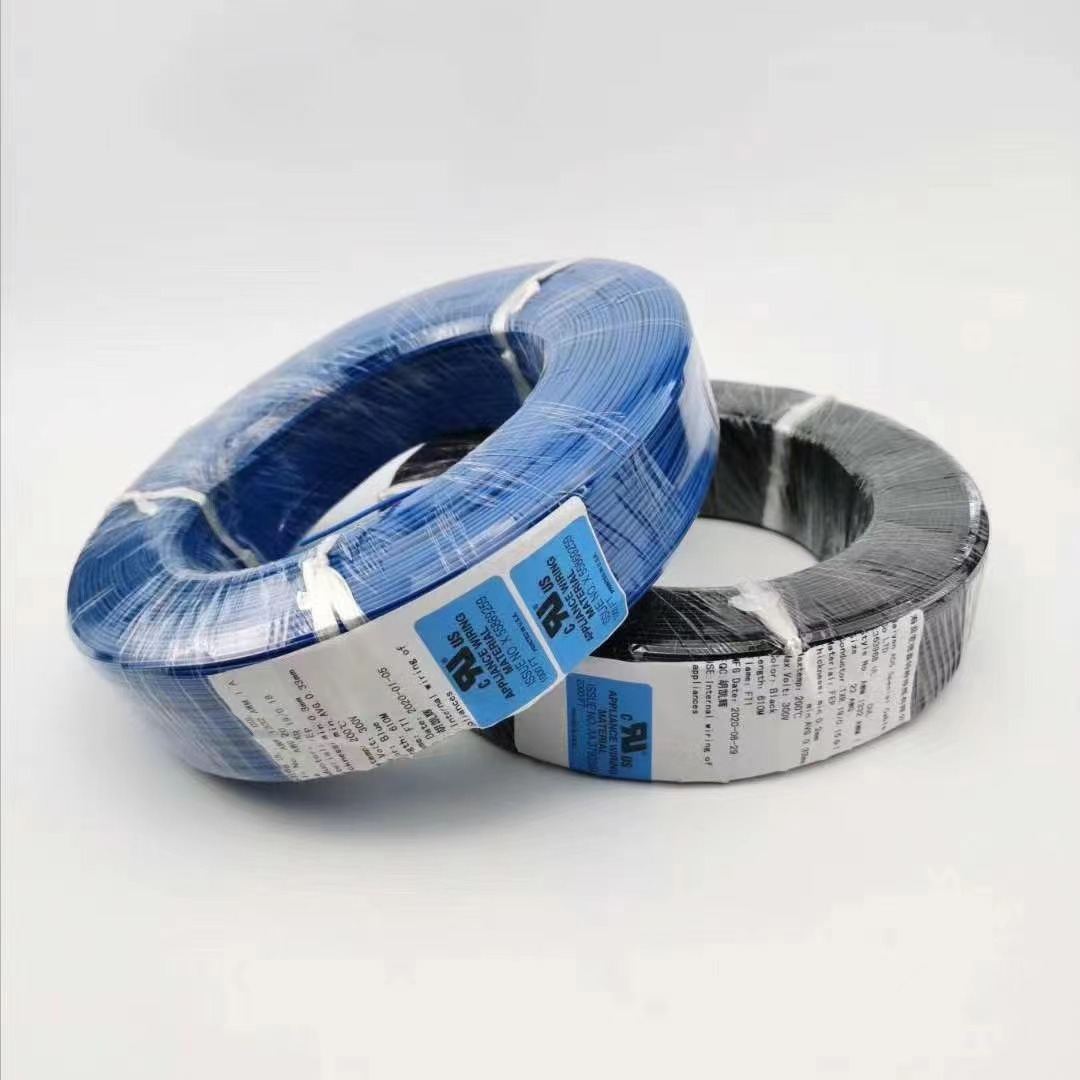

For wire and cable, wire harness manufacturers, we are well known what a hook up wire is, we also can call them lead wires, it is the electrical wire used in various electrical equipment internal wiring and connected various electronic devices. most of the hook up wires are single-core wires insulated with PVC, TEFON, PP, silicone, or XLPE compound. We need to choose different materials of hook up wires based on different usage scenarios. When the internal wires are damaged, we need to replace them with a suitable hook up wire, When we want to DIY some electronic devices, we also need to look for suitable hook up wires. Currently, the most commonly used hook up wire is PVC single-core electrical wire, like UL1007 and UL1015, which can be used in many household electrical equipment. YCABLE ELECTRONICS has years of experience in producing hook up wires and using hook up wires for wiring harnesses, which will help you choose and use the hook up wires in different fields.

How do I choose a hook up wire?

Whether in life or work, we inevitably have to come into contact with hook up wires. When the internal wires of our electrical equipment age or are damaged, we need to find a suitable lead wire to replace it to restore normal use of the appliances.
So how do we choose the right hook up wire? If we want to replace the original hook up wire, then we just need to choose a hook up wire of the same specification and material, formal standard hook up wires are all printed, and we can find specifications and models in the printing, such as UL1007 hook up wire, printed with AWM 1007 28AWG VW-1 ROHS.

Choosing the hook up wire based on your requirements.

• if you want a much more flexible hook up wire, you can try the silicone hook up wire;

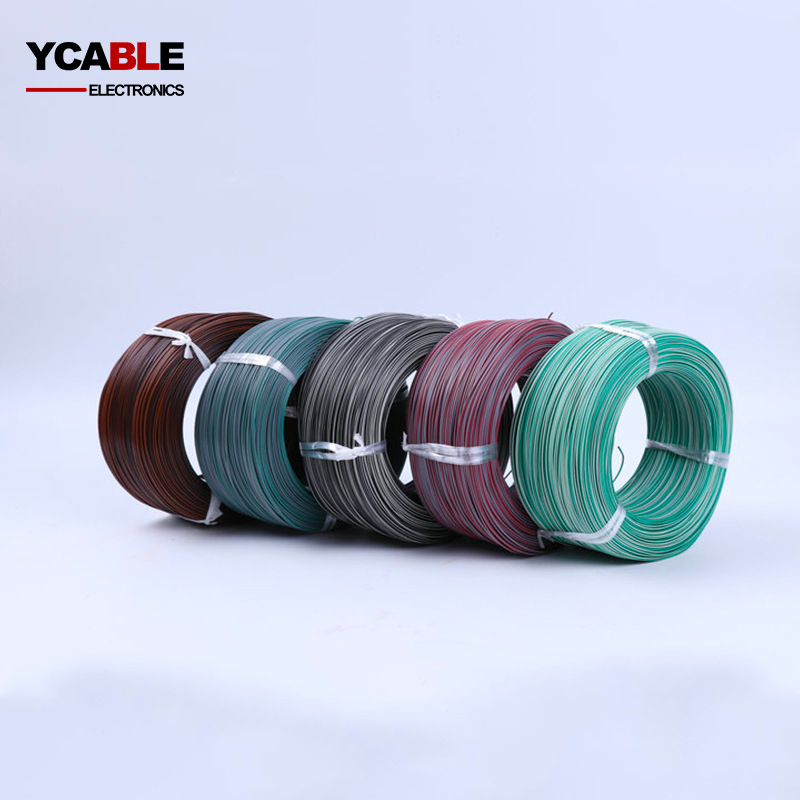

• if you are looking for a hook up wire used for automobile modification, then please consider the automotive wire, please select FLRY-A wire or FLRY-B wire for German standards,  select GPT wire or GXL wire for American standards, select AVSS wire or AESSX wire for Japan standards.
• If you are selecting a lead wire that can withstand high temperatures, then try Teflon wire, like FEP hook up wire(UL1332 wire, 200C), PTFE wire(UL1584 wire, 260C), PFA wire(UL1911 wire,250C), silicone wire(UL3135 wire, 200C), XLPE wire(UL3321,150C), Choose according to your temperature resistance needs.
• If you have requirements for voltage, choose according to different withstand voltage requirements, like UL1007, the rated voltage is 300V, UL1015 wire, the rated voltage is 600V, normally, the 600V hook up wire can meet the vast majority of needs. If your voltage requirement is higher, then we need to customize it for you!

Please do not hesitate to send us an inquiry for your requirements, YCABLE ELECTRONICS will be very enthusiastic and professional in introducing and recommending suitable hook up wires to you!

What gauge is hook up wire?

YCABLE ELECTRONICS can provide you with 10 AWG hook up wire, 14 AWG hook up wire, 18 AWG hook up wire, 20 AWG hook up wire, 22 AWG hook up wire, 28 AWG hook up wire, 30 AWG hook up wire, According to different needs, the specifications of hook up wires can range from 0 gauge to 34 gauge.

What is the voltage rating of hook up wire?

YCABLE ELECTRONICS can provide the hook up with different rated voltages. like 30V hook up wire(UL1571, ), 300V hook up wire(UL1007, UL1569, UL1332 ), 600V hook up wire(UL1015, UL1185, UL3321, UL1330, UL1331,), 1000V/1200V hook up wire(UL1032,), even high voltage hook up wire, 20 KV insulated hook up wire. We can use different voltage-resistant insulation materials and increase the thickness of the insulation to improve voltage resistance performance.
