CCA Ethernet Patch Cord CAT5 CAT6 Patch Cable Manufacturer

CCA Ethernet Patch Cord

Item Number:CCA Ethernet Patch Cord

Model: CCA Ethernet Patch Cord CAT5 CAT6 Patch Cable+RJ45
Size: 24AWG Soild(0.46mm-0.51mm)/Stranded/Custom
Color: White/Blue/Black/Gray/Custom
Insulation: PE//Custom
Shield: Unshielded/Custom
Jacket: PVC/FR-PVC/LSOH/Custom
Packing: Custom
OD: 5.2mm/Custom
Conductor Material: CCA/Copper Clad Aluminum
Drain wire: None/Custom

Environmental Specifications:

Environmental Space – Non-plenum
Flame Test Method – CMR
Installation Temperature – 0 °C to +60 °C (+32 °F to +140 °F)

Operating Temperature – -20 °C to +60 °C (-4 °F to +140 °F)

General Specifications:

Cable Type

CCA Ethernet Patch Cord CAT5 CAT6 Patch Cable+RJ45

Pairs, quantity
4

Cable Component Type
Horizontal

Conductor Gauge, singles
24AWG-20AWG/Custom

Conductor Type, singles
Solid/Stranded

Characteristics:

The transmission speed is very fast. Compared to other types of network cables, the transmission speed of the Super Five network cables will be faster, reaching 10 Mbps.
The manufacturing process is also very good, which can effectively reduce signal interference. Moreover, they are all made of copper wires twisted together, so the electrical conductivity is very good.
There are many brands sold on the market, so everyone must choose a large brand to ensure the quality of the network cable.
Suitable for indoor applications

In general, the network cable Ethernet Patch Cord has several advantages, such as well overall performance, high-cost performance, and relatively low difficulty in construction and maintenance. Choosing it will not disappoint you.

CCA Ethernet Patch Cord CAT5 CAT6 Patch Cable

Electrical Specifications
ANSI/TIA Category	CCA Ethernet Patch Cord CAT5 CAT6 Patch Cable+RJ45
dc Resistance Unbalance, maximum	5 %
dc Resistance, maximum	9.38 ohms/100 m
Mutual Capacitance	5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)	69 %
Operating Frequency, maximum	200 MHz
Operating Voltage, maximum	80 V
Transmission Standards	ANSI/TIA-568-C.2 CENELEC EN 50288-3-1 ISO/IEC 11801 Class D
Dielectric Strength, minimum	1500 Vac 2500 Vdc

Description

Exploring the Viability of CCA Ethernet Patch Cords in Residential Networking

Assessing CCA Cat5e and Cat6 Patch Cords for Home Use
Copper Clad Aluminum (CCA) ethernet cables, encompassing Cat5e and Cat6 CCA patch cords, stand as a notable subject within the networking realm. CCA cables are characterized by their construction, featuring aluminum conductors enveloped in a slim copper coating. This design approach positions CCA cables as a budget-friendly alternative to their fully copper counterparts.

Understanding CCA Cables in Ethernet Networks
In the Ethernet networking domain, CCA cables, which include CCA Ethernet patch cords and CCA network cables, showcase widespread availability. High copper-content CCA cables, such as Cat6 CCA and other CCA Ethernet variants, display commendable flexibility, resisting breakage during installation or extraction from reels and boxes. However, the aluminum core in CCA wires, when terminated, encounters air exposure, leading to rapid oxidation. This oxidation can compromise connections over time, despite the copper cladding.

Electrical Resistance and Data Integrity Concerns
Notably, CCA cables, encompassing both CCA Ethernet and network types, exhibit significantly higher electrical resistance compared to pure copper cables. This heightened resistance can result in substantial data loss and decelerated data transmission, particularly in cable lengths approaching or meeting the 100-meter maximum. Consequently, it's advisable to utilize CCA patch cords in lengths shorter than 100 meters. This strategic usage aims to mitigate connection speed reductions in networks reliant on CCA wiring.

Conclusion: Weighing Cost and Performance for Home Networking
In summary, while Cat6 CCA patch cords and related CCA cables might appear as an economically attractive option for residential networking, their limitations in terms of durability, oxidation susceptibility, and electrical resistance must be carefully weighed. These factors could potentially impact the overall performance and reliability of home network setups.

CCA ethernet patch cord

What CCA ethernet patch cord we can offer you?

CCA CAT5 UTP/SFTP Patch Cord

CCA CAT5E UTP/FTP/SFTP Patch Cord

CCA CAT6 UTP/FTP/SFTP Patch Cord

CCA CAT6A UTP/FFTP/SFTP Patch Cord

CCA CAT7 UTP/SFTP Patch Cord

CCA CAT8 Patch Cord

Examples of common industry abbreviations
Item	Industry acronyms	ISO/IEC	Cable screening	Pair shielding
CAT5、CAT5E、CAT6、CAT6A、CAT7、CAT8	UTP	U/UTP	none	none
	STP	U/FTP	none	Al-Foil
	FTP, STP	F/UTP	Al-Foil	none
	STP	S/UTP	braiding	none
	S-FTP, SFTP, STP	SF/UTP	Al-Foil, braiding	none
	FFTP	F/FTP	Al-Foil	Al-Foil
	SSTP, SFTP, STP	S/FTP	braiding	Al-Foil

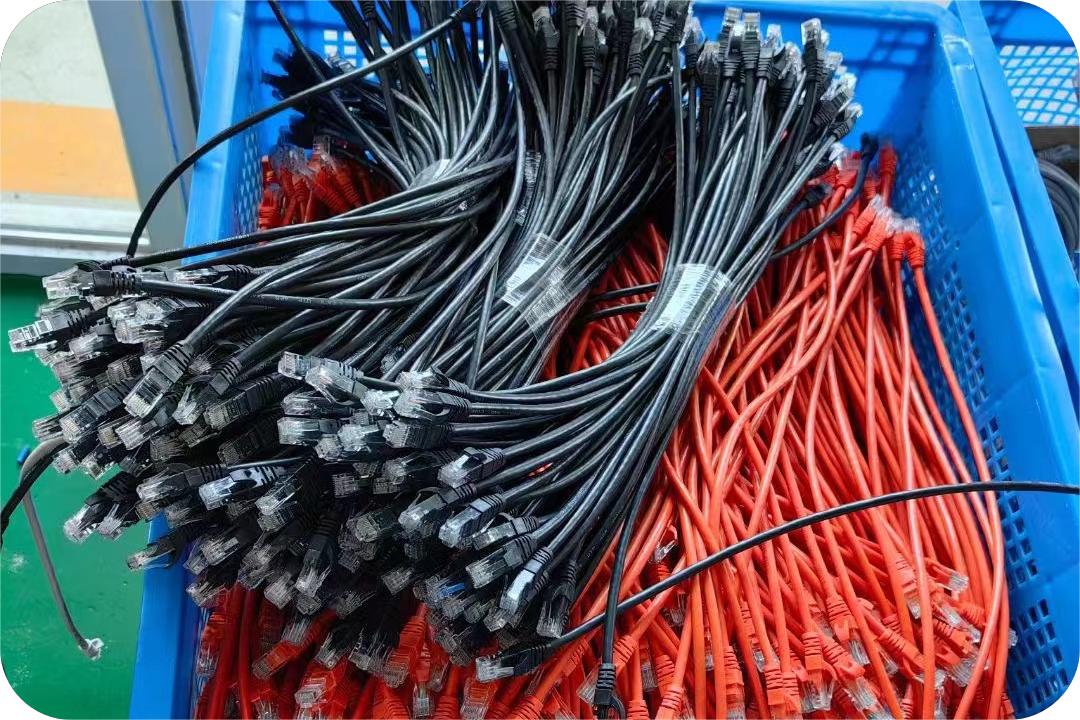

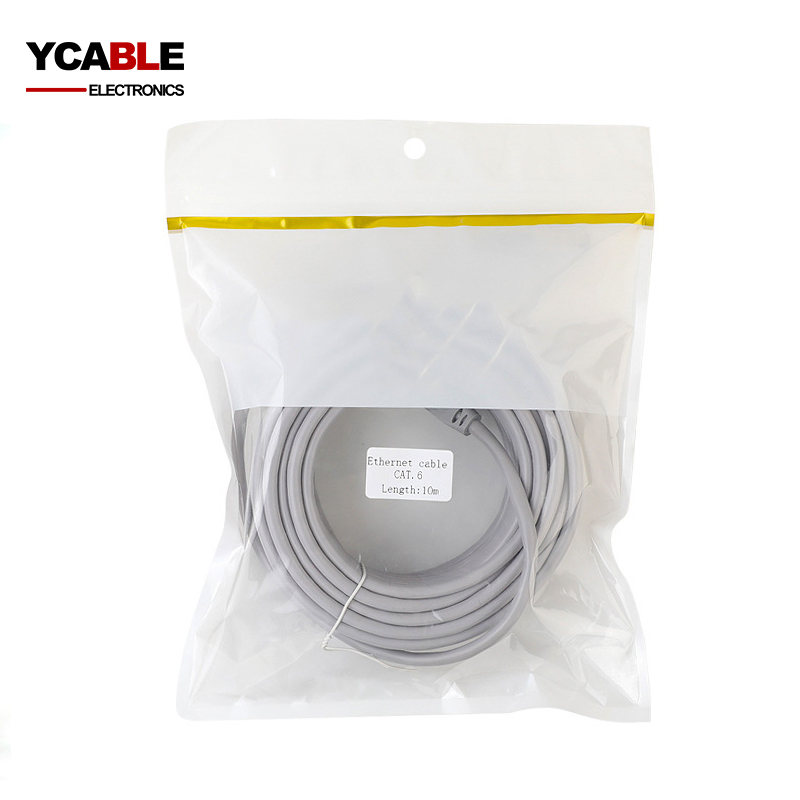

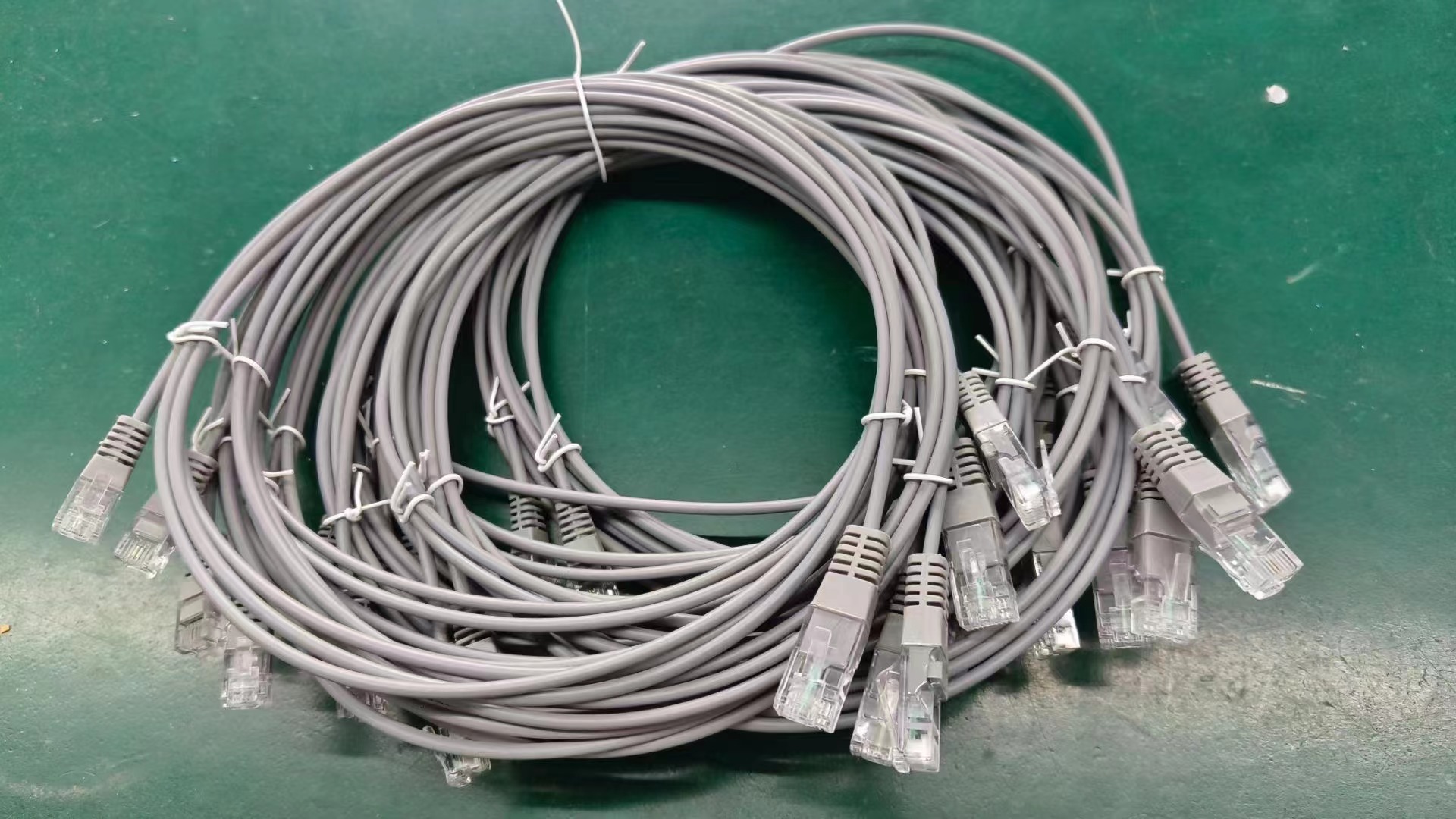

We use CCA with high copper content as a conductor. As an ethernet patch cord, it can pass the fluke test within 100 meters, but please make sure that the CCA copper content used is at least 25%. We have three types of copper-clad aluminum conductors with high copper content of 25%, 50%, and 75%, which are available on the market. Many CCA with 5% copper content are used for lower prices. We recommend using CCA with high copper content. The price is much more affordable than copper wire, and it can also guarantee the performance requirements. We use gold-plated or nickel-plated RJ45 connectors. We can Customize the color of the ethernet patch cord, customize the length of the ethernet patch cord, customize the injection molding shape of the RJ45 connector, and customize your brand.

CCA ethernet patch cable
