Cat 5 Patch Cords Ethernet Patch Cable


Item Number:Cat 5 Ethernet Patch Cable

  • Model: Cat 5 Ethernet Patch Cable
  • Size: 24AWG Soild(0.46mm-0.51mm)/Stranded, RJ45
  • Color: White/Blue/Black/Gray/Custom
  • Insulation: PE
  • Shield: Unshielded
  • Jacket: PVC/FR-PVC/LSOH
  • Packing: Custom
  • OD: 5.2mm/Custom
  • Conductor Material: Pure Copper/OFC/CCA/Copper Clad Aluminum
  • Drain wire: None

Environmental Specifications:

Environmental Space – Non-plenum
Flame Test Method – CMR
Installation Temperature –  0 °C to +60 °C (+32 °F to +140 °F)

Operating Temperature –  -20 °C to +60 °C (-4 °F to +140 °F)


General Specifications:

Cable Type

U/UTP Cat 5 Ethernet Patch Cable+RJ45

Pairs, quantity
4

Cable Component Type
Horizontal

Conductor Gauge, singles
24AWG

Conductor Type, singles
Solid


Characteristics:

  • The transmission speed is very fast. Compared to other types of network cables, the transmission speed of the Super Five network cables will be faster, reaching 10 Mbps.
  • The manufacturing process is also very good, which can effectively reduce signal interference. Moreover, they are all made of copper wires twisted together, so the electrical conductivity is very good.
  • There are many brands sold on the market, so everyone must choose a large brand to ensure the quality of the network cable.
  • Suitable for indoor applications
In general, the network cable CAT5E has several advantages, such as well overall performance, high-cost performance, and relatively low difficulty in construction and maintenance. Choosing it will not disappoint you.
Contact Us Now
Categories

Cat 5 Ethernet Patch Cable


Electrical Specifications
ANSI/TIA Category
Cat 5 Ethernet Patch Cable
dc Resistance Unbalance, maximum
5 %
dc Resistance, maximum
9.38 ohms/100 m
Mutual Capacitance
5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)
69 %
Operating Frequency, maximum
200 MHz
Operating Voltage, maximum
80 V
Transmission Standards
 ANSI/TIA-568-C.2  CENELEC EN 50288-3-1   ISO/IEC 11801 Class D
Dielectric Strength, minimum
1500 Vac                   2500 Vdc

Description


What is a cat 5 patch cord?

A Cat 5 patch cord, commonly known as a patch cable, is a vital component in networking infrastructure. Cablesys, a renowned patch cord manufacturer, offers an array of CAT5e copper patch cables. These cables, available in both standard and customizable options, are equipped with snagless boots to enhance durability by preventing bending. Comprising 24 AWG stranded bare copper conductors, they feature RJ45 jack mates and are adept at supporting VoIP and Ethernet network applications.

These patch cords come in a diverse color palette, including black, blue, gray, green, orange, purple, red, white, and yellow, catering to different aesthetic preferences. Length-wise, they range from one foot to 25 feet, accommodating various spatial requirements.

Patch cords serve the primary function of linking patch panels, work area outlets, network switches, routers, and any device equipped with an Ethernet Local Area Network (LAN), Wide Area Network (WAN), or an RJ-45 enabled port.

In the context of network architecture, Ethernet patch cables are crucial for connecting a network router or Ethernet switch to assorted network devices. These include computers, digital display monitors, Wi-Fi access points, and a growing array of IoT devices. For instance, an Ethernet patch cable might be utilized to connect a router to a switch.

The construction of Ethernet patch cables from stranded copper conductors is a strategic choice. It allows for flexibility and positional adjustments without damaging the copper strands or the termination connection. This contrasts with Ethernet cables made of solid core construction, which are prone to damage from excessive handling.

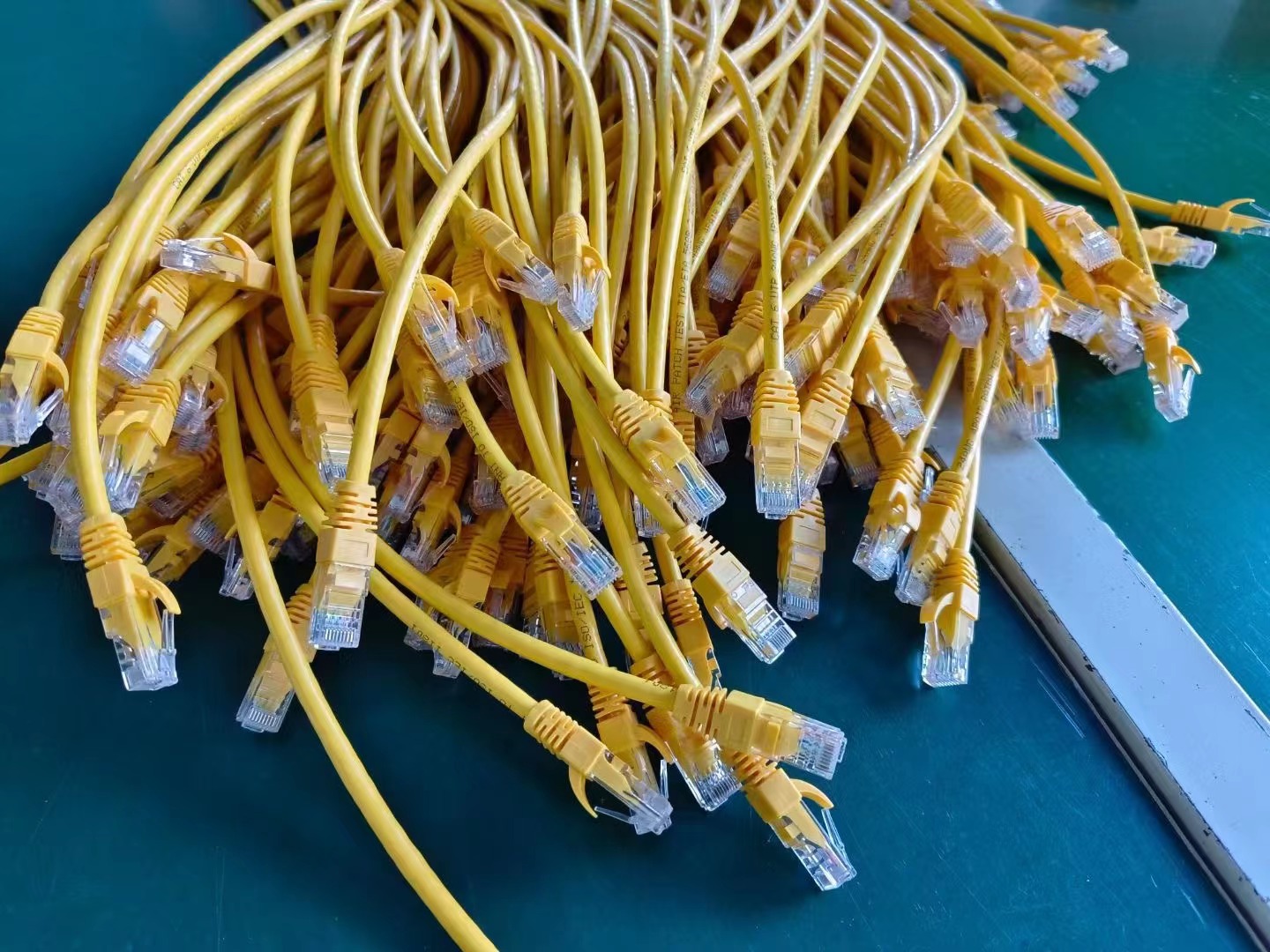

ethernet patch cord manufacturer

In the realm of network connectivity, our inventory includes an extensive selection of Cat5e Ethernet cables, patch cords, and bulk cabling solutions. Our offerings encompass both unshielded and shielded cables, with specialized varieties such as Plenum, riser, flame retardant, and gel-filled outdoor cables for diverse applications. Additionally, we provide unique options like flat data cables, lockable cables, retractable Ethernet cords, and outdoor plant cables suited for environments like parking areas, educational institutions, and mobile units. Catering to different requirements, we supply both unterminated bulk cables and pre-terminated patch cables, ensuring a comprehensive range of Cat5e cable options.

cat 5 patch cords


Understanding Cat5e and Cat6 Patch Cords

The efficiency of a network might be hampered by substandard patch cords, despite having advanced servers. Patch cords, likened to a data 'highway', facilitate data movement between patch panels and routers/switches, or from an office PC to an RJ45 wall jack.

Characteristics of Patch Cords

Patch cords, customizable in various lengths and colors, consist of two RJ45 modular plugs attached to each end of a stranded cable. This stranded cable, composed of four pairs of twisted wire, is ideal for patch cables due to its flexibility and damage resistance during bending, ensuring uninterrupted data transfer. Patch cords essentially connect computers to a network via a NIC card or link network equipment in data centers.

Distinguishing Cat5e from Cat6 Patch Cords

The key distinction between Cat5e and Cat6 lies in their performance quality. Cat5e is generally used in 100 Mbit/s or gigabit networks, offering up to 100 MHz performance. In contrast, Cat6 is suitable for networks up to 250 MHz, providing over twice the performance of Cat5e. While Cat6 can handle greater data loads, it's crucial to match the patch cord with the existing cabling in your building.

Compatibility of Cat5e and Cat6

If faced with a scenario where your building is wired for Cat5e but only Cat6 patch cords are available, they can still be utilized. While it's optimal to match cable types, mixing and matching Cat5e and Cat6 is feasible. When uncertain about the building's wiring or seeking maximum performance, opting for Cat6 and employing the best network components available is advisable.

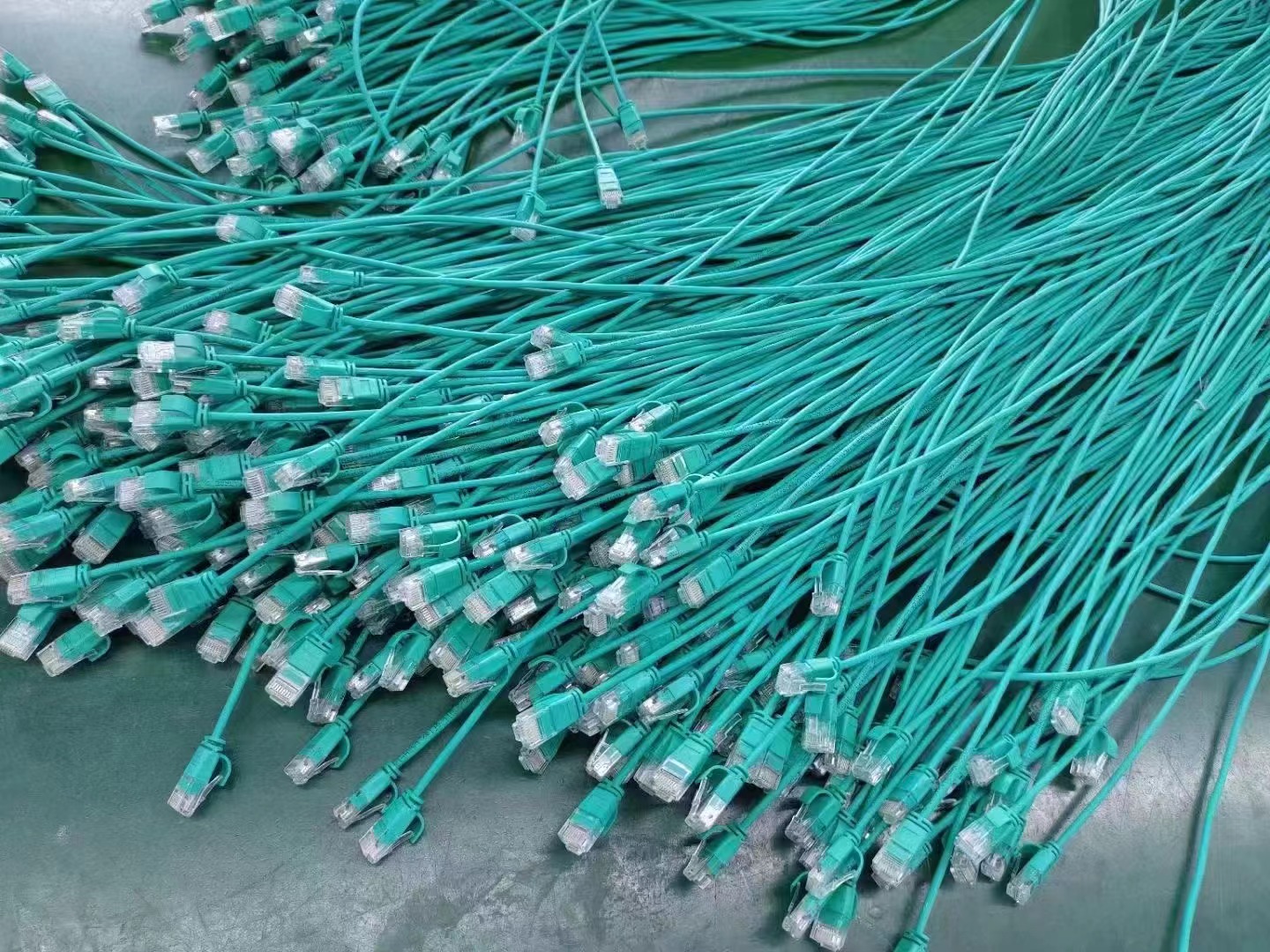

cat5e patch cords

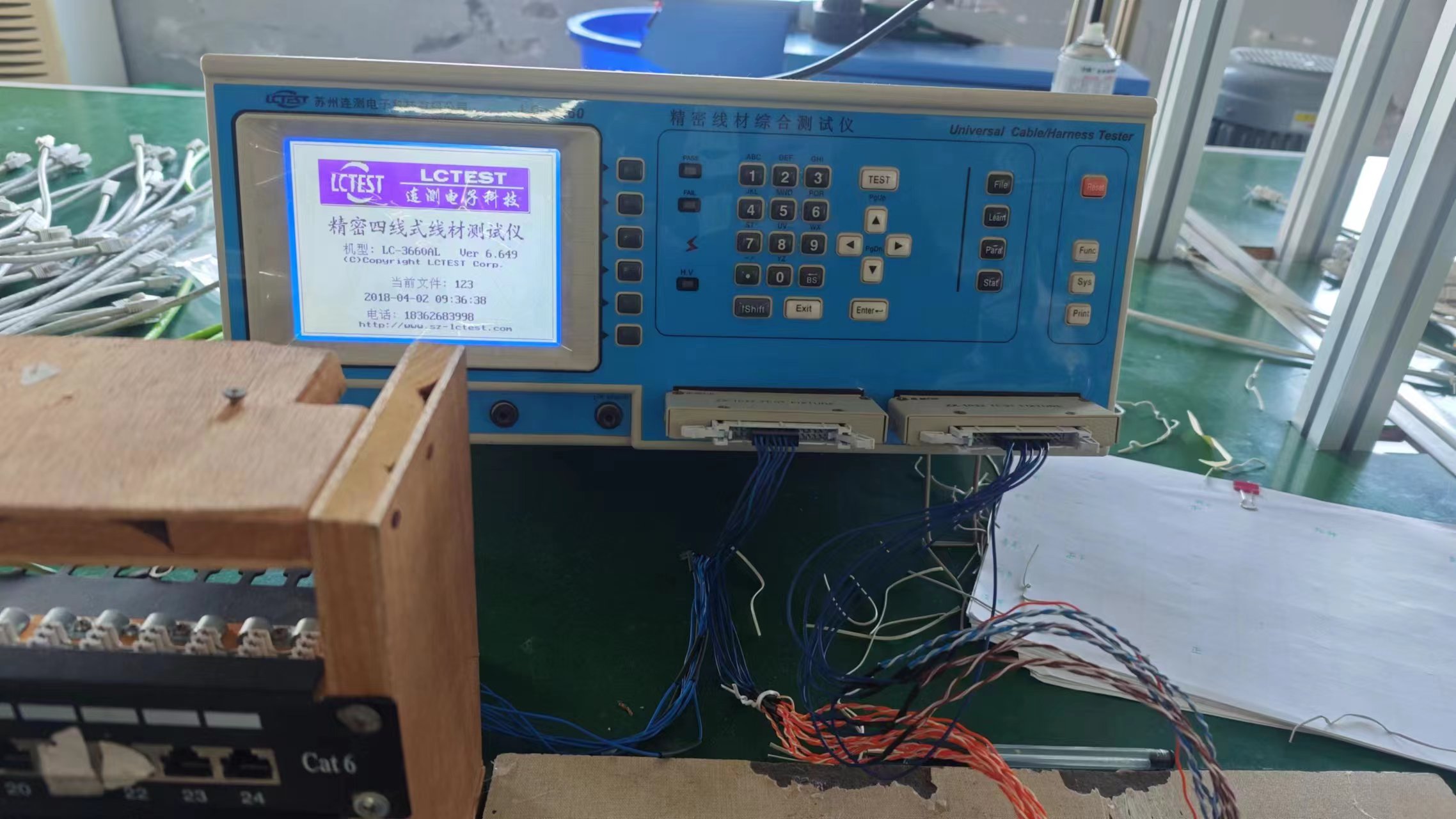

How to Test and Solve Ethernet Patch Cord Problems

Ethernet cables, a critical component in any electrical system, play a pivotal role in maintaining network functionality. Faulty Ethernet cables can lead to sluggish performance and network disruptions. Here, we delve into several indicators that suggest whether your Ethernet cable is performing optimally.

Frequent Connection Loss

When an Ethernet cable is plugged into an adapter and the indicator light fails to illuminate, it could signal an issue with either the cable or the adapter. Regular notifications such as 'network connection is lost' or 'no connection' are red flags pointing to a problematic Ethernet cable. Even with correct connections, a defective cable may still fail to function.

Persistent Slow Connection

A continuously dropping or slow connection often hints at cable damage. Torn cables can disrupt internal wire connections, potentially causing short circuits. If a cable appears bent, try to straighten it manually. However, if the cable is excessively damaged, replacement becomes necessary.

Reconnection via Cable Manipulation

If adjusting the cable position temporarily restores connectivity, it could indicate a faulty connector. Ethernet cables are equipped with a plastic lever designed to secure the cable within the Ethernet adapter port. A broken lever can lead to unstable connections.

Frequent Cable Replacement

Regularly needing to replace Ethernet cables suggests broader network ecosystem issues. If a new cable resolves the problem, the issue was likely cable-specific. However, persistent issues with new cables suggest network-related problems, possibly involving hardware malfunctions.

Network Cable Issue Types

  • Testing Connectivity Issues: These issues predominantly stem from defective cables. For testing, connect the suspect cable to a different network device or computer network connector. Network adapters, typically featuring one or two LED lights, signify a live connection and active data transmission. A non-illuminating or non-flashing LED upon cable connection can indicate problems with the cable or its connector.
  • Testing Performance Issues: Slow data transmission or connection failures point to performance-related issues, often due to damaged or bent cables. Inspect the cable for sharp bends or kinks; straightening the cable might resolve the issue. If problems persist, consider cable replacement. Before doing so, gently shake the cable near the connector to check if connectivity can be restored. If it does, the connector is likely the issue.
  • Testing Continuity Issues: Continuity problems can arise from faulty connectors, cable bends, or external damage like cuts or object penetration (nails, staples, etc.), as well as electromagnetic interference. Visually inspect the cable for such damages or use a continuity tester, a device designed to detect issues caused by EMI or radio frequency interference.

In summary, understanding and identifying these signs is crucial for maintaining an efficient and reliable network environment, especially when using Ethernet cables from a patch cord manufacturer.

ethernet patch cable manufacturer

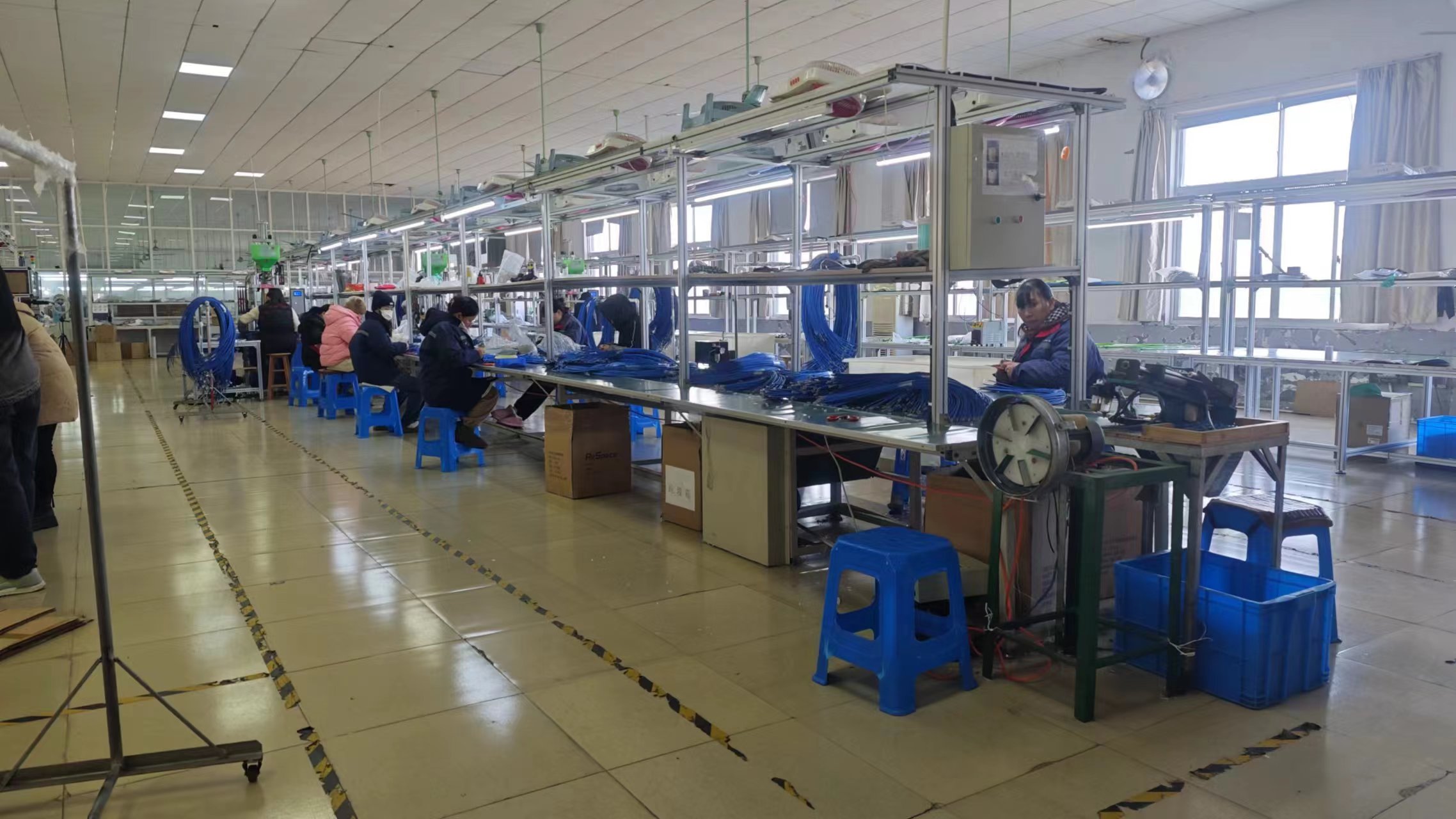

Custom Ethernet Patch Cord Manufacturer In China

At YCABLE ELECTRONICS, we specialize in crafting custom Ethernet patch cables in China using high-grade components. Our range of custom patch cords includes options for both booted and non-booted designs, in a variety of lengths and colors. Each custom Ethernet patch cable undergoes rigorous Fluke testing, ensuring they meet stringent quality standards, including assessments for near end crosstalk (NEXT) and return loss. We offer the convenience of custom labeling on one or both ends of the cables, making them ideal for critical network setups.

Our selection of custom Ethernet patch cables encompasses a range of category types: Cat 5E, Cat 5E Shielded, Cat 6E, Cat 6E Shielded, and Cat 6A Shielded. Options for both plenum and riser rated jacket cables are available to suit different installation needs. For environments that demand extra durability, like outdoor or harsh conditions, we provide custom outdoor direct burial rated Ethernet patch cables in Cat 5E and Cat 6 categories.

We also pride ourselves on offering Tactical & Rugged Deployable Custom Ethernet Assemblies. These are exceptionally suited for outdoor events, such as concerts and conventions, as well as for military and industrial testing scenarios.

For those with a tighter budget, our Stock Ethernet patch cables are a reliable alternative, offering great quality across a spectrum of categories: Cat 5E, Cat 6, Cat 6A, Cat 7, and Cat 8, in both shielded and unshielded variants. We also offer a diverse range of jacket diameters and strain relief boot styles to fit specific custom Ethernet cable installation requirements.

In addition to our premium custom patch cords, our Ethernet Patch Cables are compliant with industry standards, supporting a wide range of patching performance needs. Whether connecting to routers, network servers, computers, or other hardware, our cables support Power over Ethernet (PoE) and are readily available in stock.

Our easy-to-use Configuration Tool assists in quickly identifying the right products for your needs. At YCABLE ELECTRONICS, customer support is paramount, and we are always ready to assist with any queries about our products or services.

Ethernet Patch Cord Specifications:

  • Cat 5e Patch Cord: Offers basic data transfer speeds up to 1 Gigabit per second at 100 MHz, suitable for most applications with minimal crosstalk.
  • Cat 6 Patch Cord: Supports faster data transfer up to 10 Gbps at 250 MHz, ideal for Gigabit Ethernet networks with improved insulation.
  • Cat 6a Patch Cord: Advanced option for long-term Gigabit Ethernet networks, supporting 10 Gbps up to 328 feet at 500 MHz.
  • Cat 7 Patch Cord: Designed for Gigabit Ethernet infrastructure, with up to 600MHz performance, ideal for smart home devices.
  • Cat 8 Patch Cord: Tailored for high-speed data centers, capable of handling 25G and 40G networks, with a focus on reducing crosstalk.

Our Range of Copper Patch Cables:

YCABLE ELECTRONICS offers an extensive variety of patch cables, both in premium custom and in-stock formats, ensuring top performance for critical network applications.

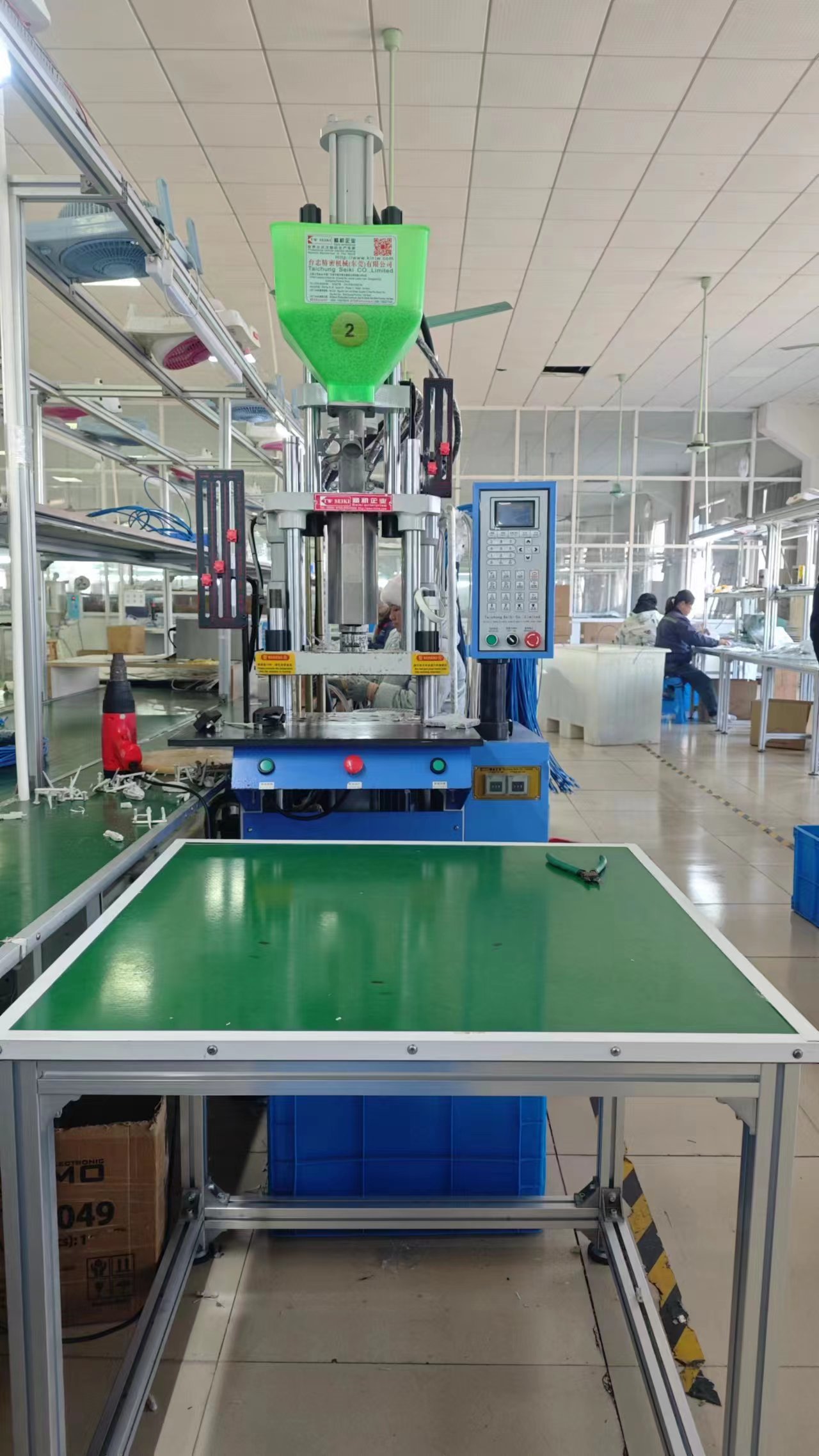

custom patch cord manufacturer
