Cat 6a SFTP Patch Cord

Description

What is CAT6A SFTP Patch Cord?

Augmented Category 6 (Cat 6A) Screened Fully Shielded Twisted Pair (SFTP) cable, a high-standard cable suitable for Gigabit Ethernet and other network protocols, seamlessly integrates with older standards like Cat 5/5e and Cat 3. It's engineered to support 10Gb/s transmission, aligning with the IEEE802.3an standard.

The Cat 6A SFTP patch cable, a part of YCABLE ELECTRONICS's advanced product lineup, features intricately twisted pairs with individual wire shielding plus an external screen, offering robust defense against electromagnetic interference (EMI). This 500MHz cabling system enables 10Gb/s speeds over distances up to 100 meters, showing marked improvement in alien crosstalk suppression over its Cat 6 predecessor.

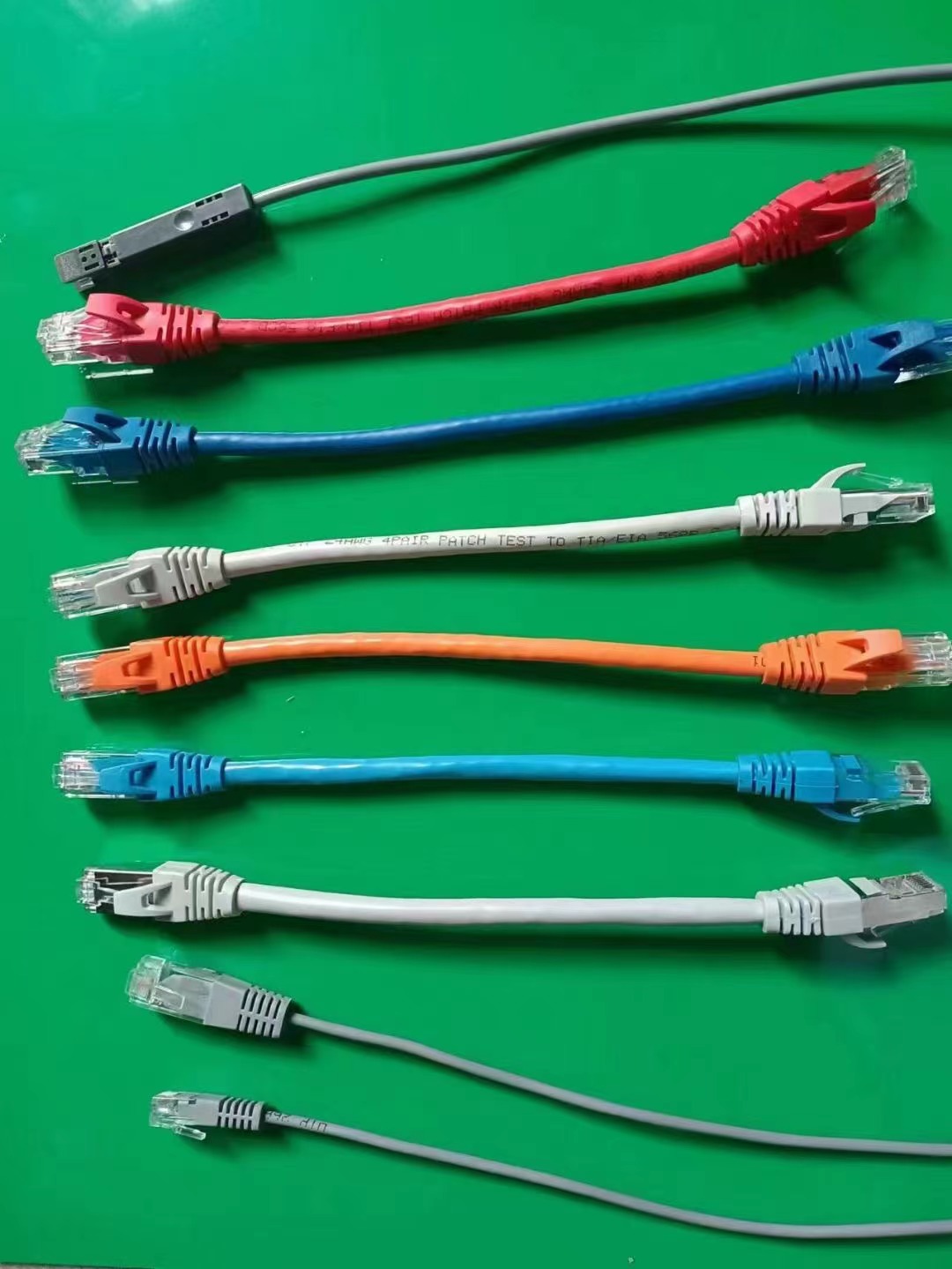

Each Cat 6A SFTP patch cable from YCABLE ELECTRONICS terminates in 8P8C modular connectors. It’s an ideal choice for varied sectors including automotive, communications, consumer electronics, data-centric applications, and industrial instrumentation.

The CAT6A network patch cable is synonymous with universal connectivity, ensuring consistent performance. This assembly excels in transmission efficiency with minimal signal loss, supporting data speeds up to 10 Gbps. It's compatible with 10/100/1000 Base-T networks and boasts high internet speed.

CAT6A Snagless cables excel in frequency handling, noise cancellation, and PoE capabilities. Recommended for Wi-Fi 6 and high-power PoE devices, it's essential for IoT equipment like surveillance cameras and inter-device connections in data racks.

Constructed with a stranded copper conductor, durable PVC jacket, and strain relief boots, this CAT6A Ethernet patch cable is built for dependability. It ensures secure connectivity for a variety of network components, including servers, computers, routers, switch boxes, VOIP phones, and network media players.

The CAT6A features a lightweight HD-PE insulator with thin sheds for enhanced creep distance, boasting an insulation resistance of >5000 Ohm/km. With a 14.3 Ohm/km conductor DC resistance and 26 AWG wire gauge, this stranded copper conductor CAT6A Ethernet patch cord is equipped with universal RJ45 connectors, making it suitable for any standard LAN device. Designed for Gigabit networks, it's ideal for connecting hubs to distribution panels, workstations to outlets, and is UL Listed.

Available in four distinct color pairs(Can be custom):

• Orange, white/orange
• Green, white/green
• Blue, white/blue
• Brown, white/brown

This selection ensures not only technical superiority but also visual differentiation for organized and efficient network management.

Why did we choose CAT6A S/FTP Patch Cord?

In the realm of structured cable networks, CAT6A (Category 6 Augmented) is increasingly becoming a preferred choice for distributing HD signals over twisted pair cables. Boasting the capability to transmit high-frequency 500MHz signals up to 10Gbps, CAT6A adheres to the 10GBASE-T standards as outlined in ANSI/TIA 569.C-2 and ISO/IEC 11801 Class Ea.

Given the higher frequencies employed by 10GBASE-T, CAT6A cables exhibit heightened sensitivity to performance and environmental factors, surpassing both Cat6 and Cat5e in this regard. This sensitivity underscores the recommendation of shielded CAT6A cables for most 10G installations. Notably, shielded CAT6A is the prevalent infrastructure cable in Europe and many international markets, and it’s gaining traction in the USA, where unshielded CAT6A has been popular.

There are multiple construction types for CAT6A in the market, such as F/UTP, U/FTP, F/FTP, and S/FTP. Focusing on F/UTP versus S/FTP:

• F/UTP Construction: This consists of four 23awg unshielded twisted pair wires, enclosed in an overall AL Foil Shield, and includes a central spline to separate each pair, a common structure in Cat6 STP cables.
• S/FTP Construction: Each wire pair in S/FTP is surrounded by its own AL Foil Shield, negating the need for a center spline.

The differences between F/UTP and S/FTP extend beyond basic construction, impacting cable performance significantly. S/FTP cables are generally superior in performance, simpler to terminate, and more installation-friendly than F/UTP.

Key Advantages of S/FTP over F/UTP:

• Smaller Overall Diameter: S/FTP cables lack a center spline, resulting in a smaller diameter, increased flexibility, and reduced conduit space usage.
• Ease of Termination: S/FTP’s individual foil shields control NEXT and FEXT loss, allowing for longer, looser twists. This results in lower DC resistance, facilitating termination and enhancing PoE/PoH support.
• Lower Delay Skew: The similar lay lengths/twists in S/FTP cables lead to minimal propagation delay skew, boosting data rate efficiency.
• Enhanced PoE/PoH Support: The looser twists and individual foil shields in S/FTP cables reduce DC resistance and improve heat dissipation, crucial for PoE/PoH applications.
• Superior Performance: Individual foil shields in S/FTP cables minimize crosstalk, offering better overall performance compared to F/UTP cables.
• Improved Insulation: S/FTP cables use Foam PE insulation, which has a lower dielectric constant, leading to higher propagation velocity and lower attenuation.

In summary, S/FTP is the recommended standard for shielded CAT6A cables in most 10G installations, offering numerous advantages in terms of flexibility, ease of installation, PoE/PoH support, and overall performance. F/UTP cables, while an option, may not deliver the same level of efficiency and are not advised for 10GBASE-T system certification.

CAT6A SFTP Patch Cord Manufacturer In China

CAT6A Shielded and Foiled Twisted Pair (SFTP) Bulk Cable, featuring 23 AWG (0.57mm) 100% Bare Copper construction, is not only UL and ETL Listed but also adheres to RoHS compliance. This cable is a fortress of protection against intense interference, crosstalk, and attenuation, surpassing the capabilities of UTP and FTP cables. The SFTP design incorporates both individual wire foiling and an overall robust PVC jacket shield, ensuring unparalleled network integrity.

The CAT6A SFTP, a hallmark product of YCABLE ELECTRONICS, excels in environments demanding the utmost cable performance such as military, medical, and high-EMI applications. It has been rigorously tested to function flawlessly up to 250 MHz, facilitating rapid data transfer. This Screened and Foiled CAT6A bulk cable is typically procured for sizable installations or for crafting custom-length patch cables.

YCABLE ELECTRONICS: Your CAT6A SFTP Cable Expert

As a renowned CAT6A SFTP cable manufacturer in China, YCABLE ELECTRONICS specializes in high-speed, solid-conductor CAT6A SFTP cables, essential in numerous backbone cabling solutions. We offer:

• Factory direct sales
• Prompt shipping from local warehouses
• OEM and ODM services for CAT6A FTP cable

CAT6A SFTP Bulk Ethernet Cables: A Shield Against Noise

Our Screened/Shielded and Foiled CAT6A SFTP bulk cable is a popular choice for extensive installations or custom cable lengths. The cable's bandwidth speed is doubled, delivering up to 250MHz at a maximum distance of 328 ft. The CAT6A FTP's design ensures it excels for 10/100/1000BASE-T networking speeds.

YCABLE ELECTRONICS is equipped to handle bulk orders, providing large wooden or plastic reels, packed in sizable carton boxes, pull boxes, or pallets as per customer preference.

Quality Assurance in CAT6A Bulk Ethernet Cables

Quality and performance are paramount in our manufacturing process for bulk CAT6A SFTP cables. We ensure compliance with UL444, TIA/EIA568B, and ISO/IEC11801 standards before dispatch, alongside offering OEM and ODM services.

Applications of CAT6A SFTP Cable

CAT6A SFTP cables are indispensable in settings that require the highest performance cables and intense shielding from EMI, such as in military devices, medical applications, heavy machinery, data communication, and telephony.

Our CAT6A SFTP Bulk Indoor cable, with its individual and overall shielding, is designed for indoor applications involving voice, security, and data. The cable's PVC jacket complies with RoHS standards.

Variety in CAT6A SFTP Cables

• Outdoor Shielded SFTP UV Resistant Cable: Perfect for outdoor applications, this 24 AWG Solid Copper CAT6A Ethernet Cable is coated with UV-resistant PVC for durability.
• Riser Rated CAT6A SFTP Bulk Ethernet Cable CMR: Manufactured to meet Category 6 T568B standards, suitable for installation in risers.
• Plenum Rated CAT6A SFTP Bulk Ethernet Cable CMP: Ideal for indoor use in plenums, these cables meet NEC requirements, being fire-retardant with low smoke and toxicity.
• 100M CAT6A Bulk SFTP Installation Cable: Designed for smaller setups, this cable offers high speeds, tested up to 350 MHz, and is suitable for both non-plenum and plenum areas.
• 305m CAT6A Bulk SFTP Cable: A standard length for data center network installations, available in various ratings for both indoor and outdoor solutions.
• 500m/1000m CAT6A Bulk SFTP Cable: Perfect for large-scale installations, these cables are ideal for extensive network setups, UL and ETL verified, and RoHS compliant.
