Optical Fiber Patch Cord Classification and Insights from an Optical Fiber Patch Cord Manufacturer
Understanding Optical Fiber Patch Cords Optical fiber patch cords, also known as fiber optic patch cables or fiber jumper cables, are essential components in fiber optic systems. They are terminated with fiber optic connectors on both ends and primarily used in two areas: connecting computer workstations to outlets and interfacing with fiber optic patch panels or optical cross connect distribution centers. These cords are typically designed for indoor applications.
Diverse Types of Optical Fiber Patch Cords Optical fiber patch cords vary based on several factors like fiber cable mode, cable structure, connector types, connector polishing types, and cable sizes.
Fiber Cable Mode:
- Single Mode Optical Fiber Patch Cords: Utilize 9/125 micron bulk single mode fiber cable, typically with a yellow jacket.
- Multimode Optical Fiber Patch Cords: Use 62.5/125 micron or 50/125 micron bulk multimode fiber cable, generally with an orange jacket.
- 10gig Multimode Optical Fiber Patch Cords: Designed for 10Gig Ethernet with 50/125 micron fiber optimized for 850nm VCSEL lasers, usually featuring an aqua jacket.
Fiber Cable Structure:
- Simplex Optical Fiber Patch Cords: Contain one fiber and one connector on each end.
- Duplex Optical Fiber Patch Cords: Have two fibers and two connectors on each end, with distinct markings for polarity.
- Ribbon Fan-out Cable Assemblies: Combine ribbon fiber with multi-fibers and a ribbon fiber connector on one end and multiple simplex fiber cables with connectors on the other.
Connector Types:
Various connector types are available, including same-connector and hybrid fiber optic patch cables.
Connector Polishing Types:
Polishing shapes vary, especially important in single mode applications, with typical back reflection grades ranging from -30dB to -60dB.
Fiber Cable Sizes:
Options include 250um bare fiber, 900um tight buffer fiber, and 1.6mm, 2.0mm, 3.0mm fiber optic cables.
Stock and Special Types from Optical Fiber Patch Cord Manufacturers Optical fiber patch cord manufacturers like Fiber Optics for Sale Co. offer a range of stock and special types, including LC, ST, SC, FC, MTRJ, E2000, VF-45 connectors, and specialized cords like polarization maintaining and mode conditioning fiber optic patch cords.
Alternate Nomenclature for Optical Fiber Patch Cords These cords are also known as fiber optic patch cords, fiber jumpers, duplex fiber jumpers, and more.
Cord Cleaning Methods
For maintaining optical fiber patch cords, various cleaning methods are recommended, such as reel connector cleaners, isopropyl alcohol with lint-free wipes, dusters, and swab cleaners.
Handling Cautions for Optical Fiber Patch Cords
When handling optical fiber patch cords, it's important to be aware of the bend radius to avoid kinking. Also, avoid using tie-wraps too tightly as they may damage the cable.
In summary, understanding the variety and specifications of optical fiber patch cords is crucial for optimal performance in fiber optic networks. Manufacturers like Fiber Optics for Sale Co. offer a wide range of these cords, tailored to diverse applications and requirements.
Fiber Optic Patch Cable Manufacturer In China
As an experienced optical fiber patch cord manufacturer, we possess deep insights into the elements that constitute a high-quality patch cord. Optical fiber patch cords consist of three critical components, which also represent the primary raw materials sourced by patch cord factories. These components, in order of importance, are the core, the fiber, and the assembly. The foundation of quality lies in high-grade raw materials, which, when combined with refined manufacturing processes, result in premium optical fiber patch cords.
Our Range of Optical Fiber Patch Cords:

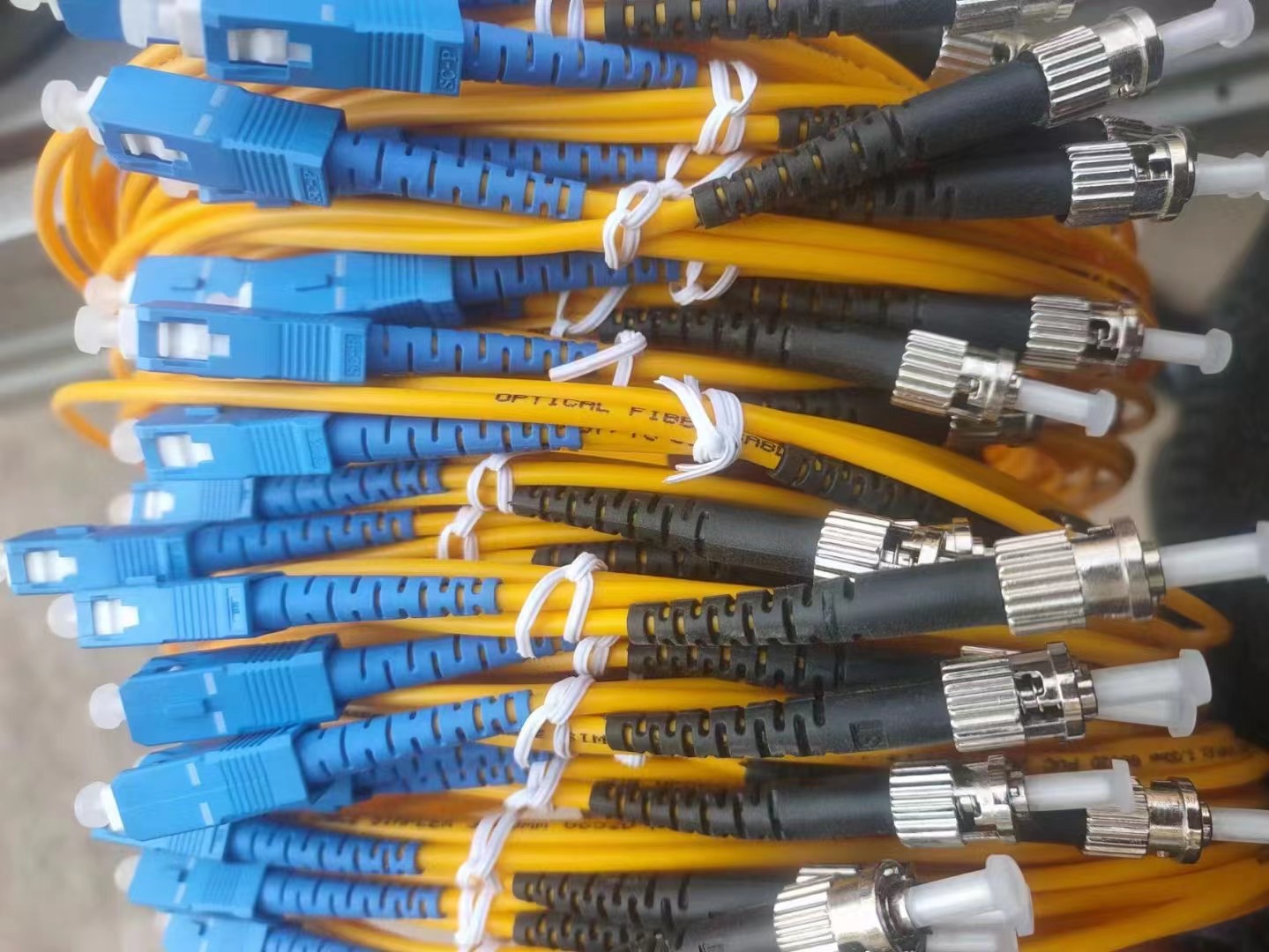

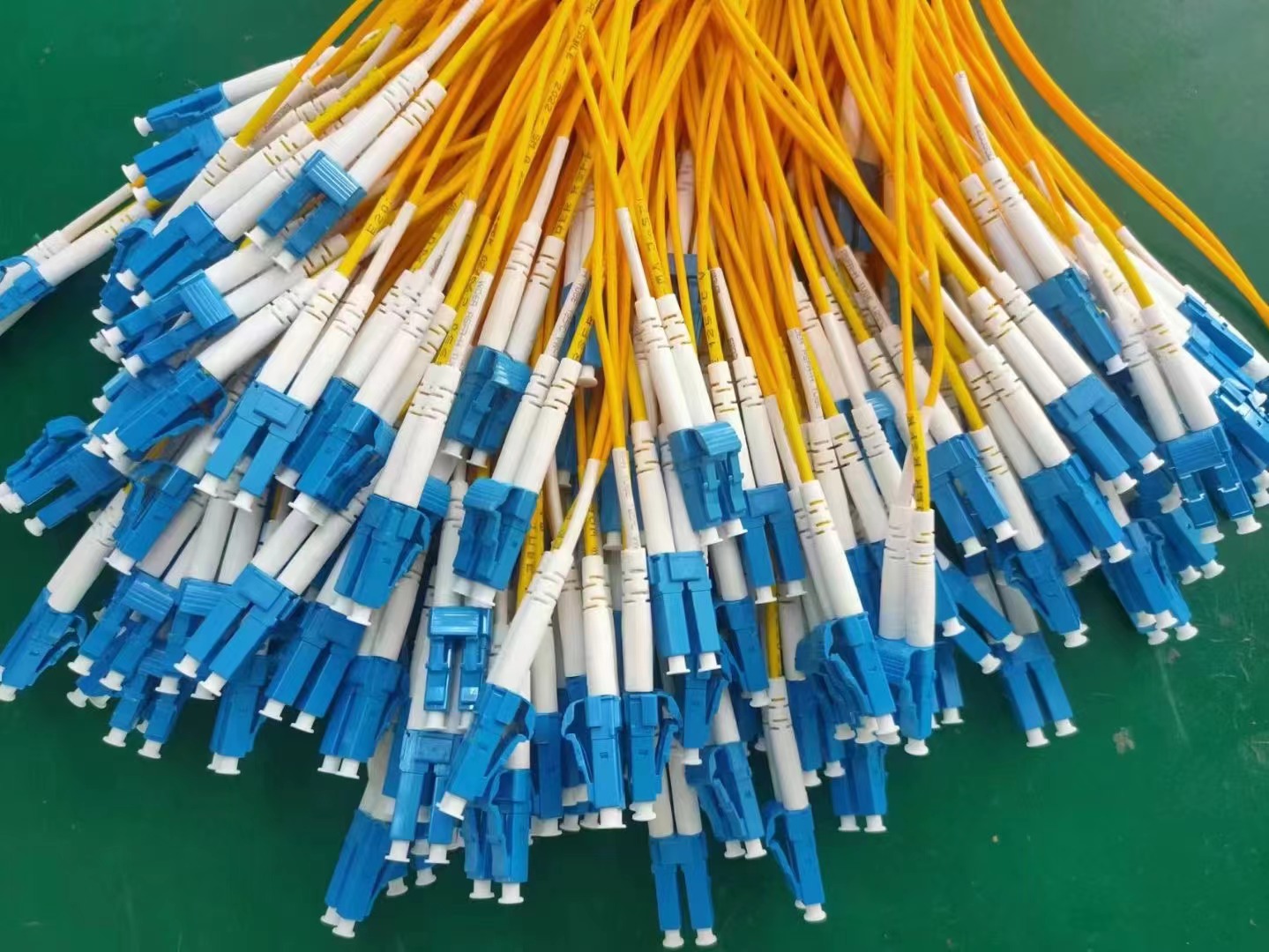

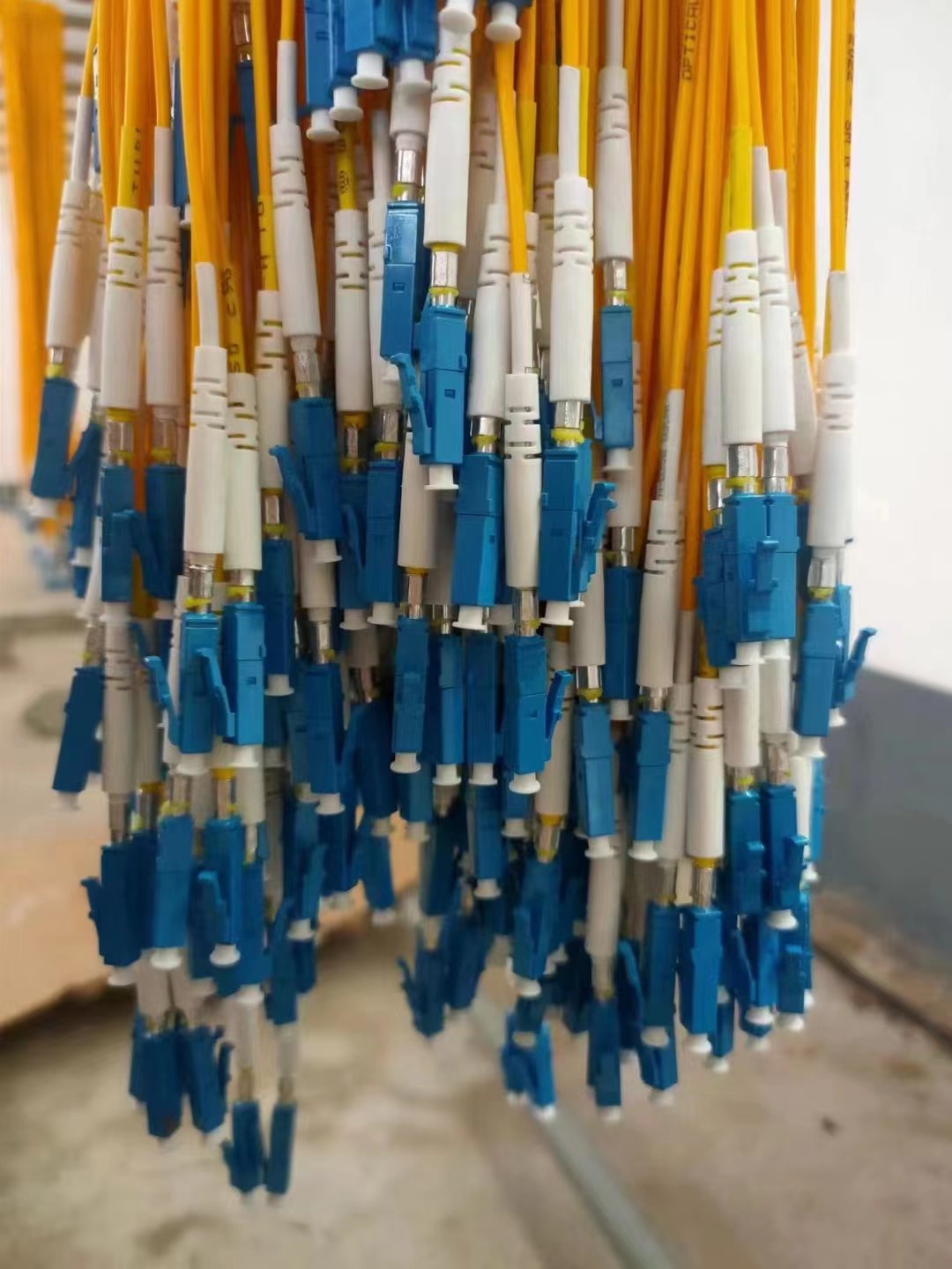

- Connector Type: We offer a variety of connectors, including LC, SC, ST, FC, MPO, and MTP.
- Mode Type: Options include Single-mode and Multimode patch cords.
- Connector Quantity: We provide both Simplex and Duplex patch cords.
- Cable Length: Available lengths range from 1m to 50m and beyond.
- Connector Polish Type: Choices include APC and UPC types.
- Cable Jacket Type: Our jackets come in PVC, LSZH, OFNP, and Armored options.
- Innovative Patchcord Type: We also supply the latest MTP/MPO patch cords.
Lead Time for Bulk Orders of Optical Fiber Patch Cords:

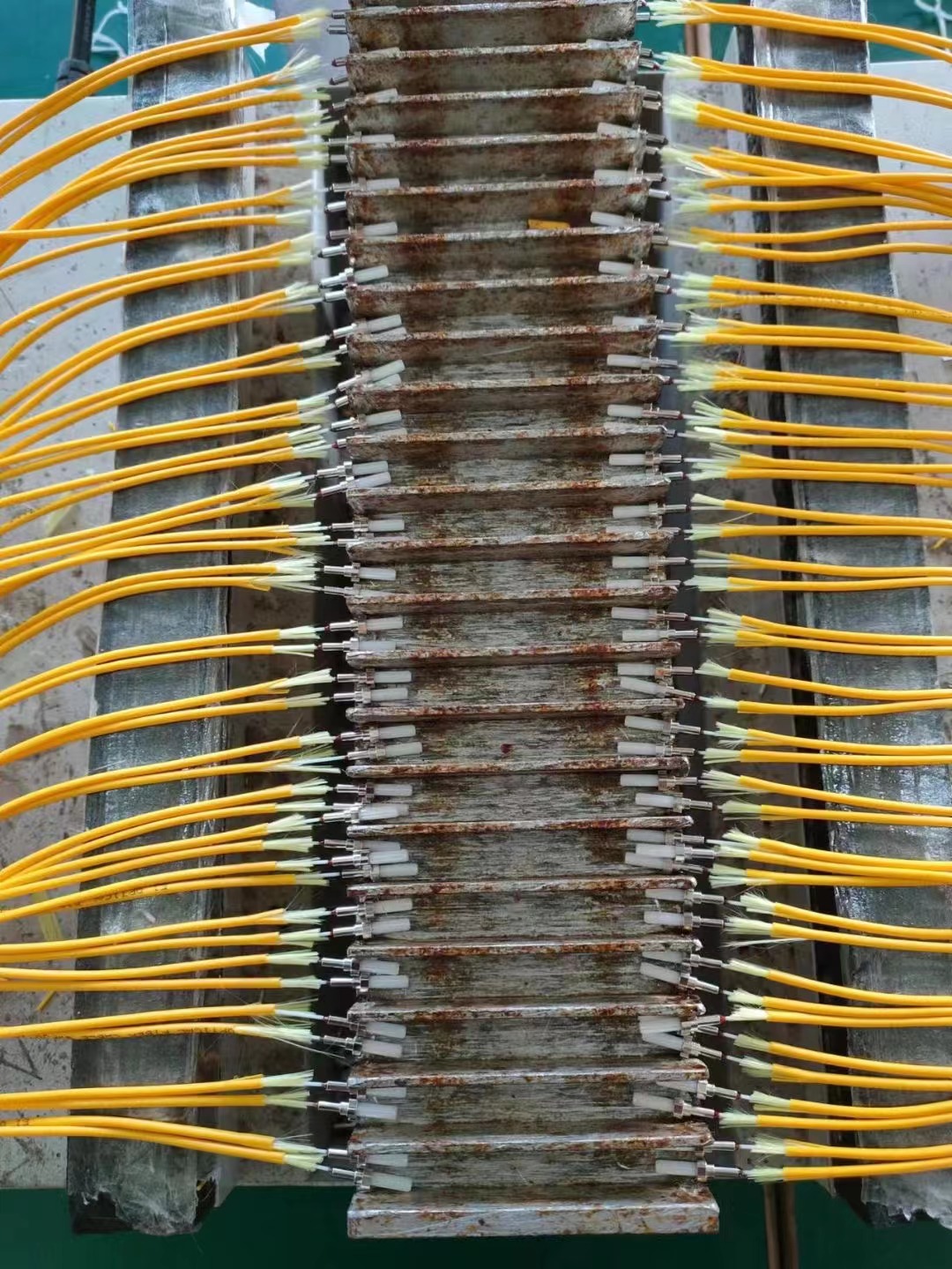

A stable and rapid delivery time is crucial for international procurement, and our production capacity is the cornerstone of this stability. Our patch cord factory typically produces 3,000 pieces per day, with a maximum capacity of 10,000 pieces. Our production line is versatile, handling not only patch cords but also pigtails and splitters, allowing us significant flexibility. For urgent orders, we excel in managing prompt delivery.
Competitive Pricing of Fiber Patch Cords:
Thanks to our large-scale factory operations, we benefit from lower raw material procurement
costs. Coupled with efficient company management, this allows us to offer very competitive prices for our optical fiber patch cords. For inquiries and quotations, potential clients can reach out to us at vance@ycable-electronics.com anytime. Our commitment to quality, along with our ability to provide cost-effective solutions, makes us a go-to manufacturer in the optical fiber patch cord industry.
Design and Order Custom Optical Fiber Patch Cords
At our optical fiber patch cord manufacturing facility, we offer a streamlined process to design and order customized cables. You can select from various options including single fiber (simplex), two fiber (duplex), or multi-fiber cables tailored for different environments like indoor, indoor/outdoor, industrial settings with interlocking armor, or ruggedized constructions for burial or aerial applications predominantly in outdoor settings. Our stock includes bend-insensitive Singlemode and Multimode fibers (OM1, OM2, OM3, OM4, and OM5), allowing for a wide range of applications.
Creating a custom optical fiber patch cord is straightforward. Just specify your requirements: Fiber Type, Connector Type, Cable Length, Cable Construction, Polarity, and Packaging. YCABLE ELECTRONICS specializes in manufacturing custom cable assemblies ranging from 1 to 288 fibers. These high fiber count assemblies demand precision, detailed schematics, specialized breakouts, and specific packaging to ensure quality and performance.
Our cables are guaranteed to be free from performance defects. Opting for a pre-terminated cable minimizes on-site costs associated with installing fiber optic connectors. It also reduces the need for highly experienced technicians and cuts down on overall project time. This is achieved by ensuring careful installation of the cable and confirming that test results align with the network owner’s specifications. Our service is designed to provide both quality and efficiency, making us a reliable choice for optical fiber patch cord needs.
As a proficient optical fiber patch cord manufacturer, YCABLE ELECTRONICS excels in fabricating custom fiber optic assemblies to meet a diverse range of customer requirements. Our state-of-the-art manufacturing facilities enable us to produce the highest quality fiber optic assemblies.
The array of custom fiber optic cables we frequently construct includes, but is not restricted to:
- Duplex fiber patch cords
- 6-strand breakout fiber cables
- 12-strand, 24-strand, and 48-strand breakout/fanout fiber cables
- Fiber optic pigtails
- 12-strand and 24-strand MTP/MPO fiber optic cables
- MTP/MPO fanout fiber optic cables
- Armored fiber optic cables
- Mode conditioning cables
In our manufacturing process, we commonly utilize a variety of connectors, such as:
- LC
- SC
- ST
- MTRJ
- MTP/MPO
- FC
Our manufacturing capabilities extend to all standard types of fiber optic cables, including:
- 62.5 micron multimode (OM1)
- 50 micron multimode (OM2)
- 50 micron multimode 10gig (OM3)
- 50 micron multimode 40/100gig (OM4)
- 9 micron singlemode
YCABLE ELECTRONICS is committed to providing bespoke solutions in the realm of optical fiber patch cords, catering to the unique specifications and needs of our clients. With our advanced technology and extensive expertise, we stand as a reliable source for top-tier, custom-made optical fiber patch cords.
