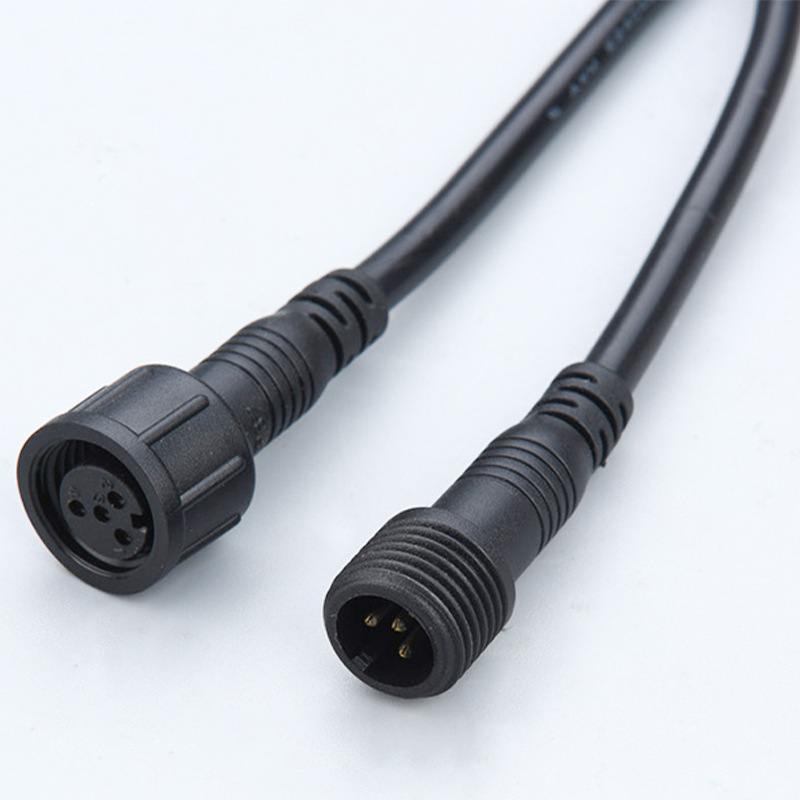

M15 Connector Waterproof Cable Assembly

Item Number:M15 Connector Waterproof Cable Assembly

Pin:: 2p，3p, 4p, 5p, 6p, 7p, 8p, 9p, 10p, 11p, 12pin 15Pin
Connector:: According to customer's request to produce
Type:: Same direction/Opposite direction
Color:: Custom
Length:: Custom
Wire Gauge:: Custom 26AWG 28AWG 24AWG 22AWG 20AWG 18AWG
Service:: OEM；Custom

Environmental Specifications:

Environmental Space – Non-plenum
Flame Test Method – CMR
Installation Temperature – 0 °C to +60 °C (+32 °F to +140 °F)

Operating Temperature – -20 °C to +60 °C (-4 °F to +140 °F)

Temperature Rating – 75 °C

General Specifications:

Cable Type

M15 cable assembly

Conductor, quantity
2pin 3pin 4pin 5pin 12pin/Custom

Cable Component Type
PE, PVC, Horizontal/Custom

Conductor Gauge, singles
23AWG/Custom

Conductor Type, singles
Solid/Stranded/Custom

Characteristics:

M15 cable assembly

In

M15 Cable Assembly

Electrical Specifications
ITEM	M15 Cable Assembly
Diameter	15mm
Number of Pins	2,3,4,5,6 8 10 12 PIN/Custom
Cable Length	Custom
Rated Current	1A~6A Custom
Operating Voltage, maximum	60V~200V, Custom
Operating Temperature	-40~125C
Waterproof Grade	IP65 IP66 IP67 IP68

Description

M15 Cable Assembly with Waterproof Design

Category: Waterproof Cable Assemblies

Cable Specifications: Meets IEC 60945 standards for environmental testing

Connection Security: Secured via screw fastening

Surface Finish: Tin-plated over Nickel or alternative options

Hue: Matte Black

Environmental Standards: Compliant with RoHS regulations

Fire Resistance: Cable material rated at UL94V-0 for thermoplastics, with cable performance of FT4/CL2

M15 cable

Utilization Fields

Illumination for LED boulevards
Power units for LED systems
Modules for exterior displays

Advantages & Utility

Enhanced connection stability through screw locking mechanism
Protection grade of IP68/IP67 or tailored configurations
Durability against severe weather conditions for outdoor applications

Mechanical Integrity

Operational temperature span: -40℃ to 85℃
Durability of connection: Minimum 50 insertions
Strength of terminal hold: Not less than 60G

Electrical Characteristics

Amperage Capacity: 10A
Voltage Capacity: 220V
Dielectric Strength: 500 VAC sustained for 1 minute without failure
Minimum Insulation Resistance: 100 MOhm
Maximum Contact Impedance: 1mOhm

Constituent Materials

Male connector pins: Brass
Female connector sockets: Phosphor bronze
Insulating body: High-grade Thermoplastic
Sealing against moisture: Silicone rubber

Compliance with Product Environment Standards

RoHS 2.0: Fully compliant
Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) SVHC: Affirmative

This meticulously crafted M15 cable assembly is designed to offer unparalleled reliability and performance for critical outdoor and industrial applications, assuring both mechanical robustness and exceptional electrical performance under a broad array of environmental conditions.
