M6 Connector Waterproof Cable Assembly

Description

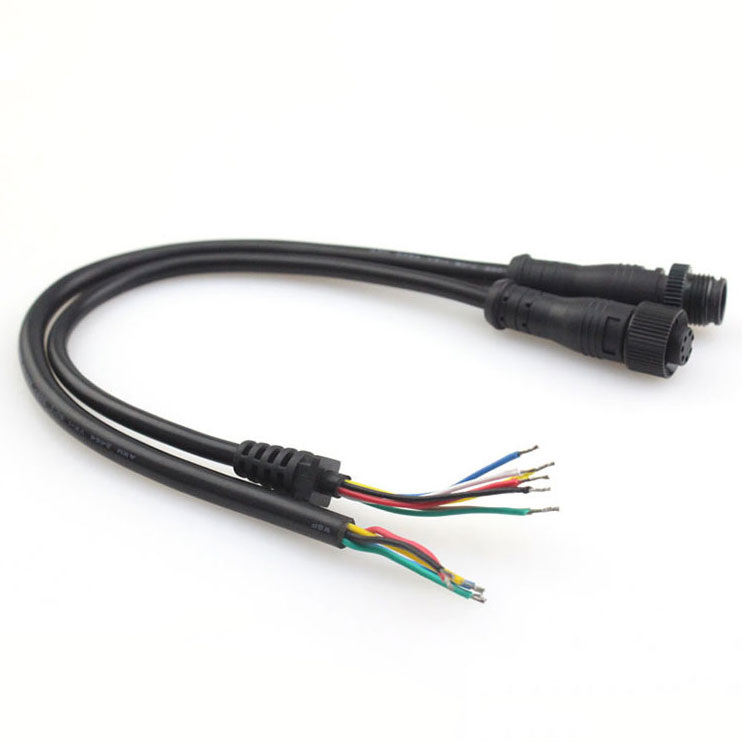

What is M6 Waterproof Cable Assembly

The M6 Waterproof Cable Assembly, a marvel in the world of electrical connectivity, embodies a cluster of wires nestled within a tube, typically sheathed in PVC insulation. These assemblies are tailored to diverse applications, manifesting in assorted sizes, colors, thicknesses, and lengths. Each assembly is uniquely outfitted with various termination options like plugs or sockets, catering to specific application requirements. A quintessential example of such versatility is the M6 Cable Assembly.

Versatile Tools for Waterproof Connectors

We offer a broad spectrum of tools for both original and locally equivalent waterproof connectors. Adhering to IP65, IP67, and IP68 waterproof standards, our range covers the M6, M8, M12, M16 series, and more. Our overmolding mold designs are customizable, featuring options like 90 or 180-degree molding, or T-type conversions. The precision in designing the o-ring and nut is pivotal in fulfilling the waterproof standard requirements.

Your Destination for IP68 Waterproof Molded Connectors

Seeking the ultimate IP68 waterproof molded connector manufacturer and supplier? Our selection boasts great variety and pricing, sparking creativity in electrical designs. Assured quality is the hallmark of our molded waterproof connectors, proudly originating from our factory in China, a hub for such innovative connectors.

Waterproof Connectors: Beyond Simple Water Resistance

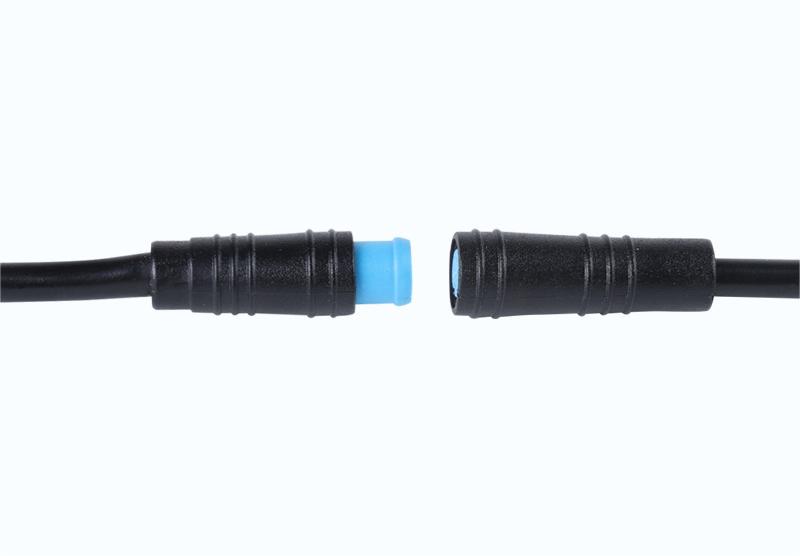

Waterproof connectors, as suggested by their nomenclature, offer water resistance. However, their distinction goes beyond this singular feature. Unlike standard plugs, which are a composition of plugs and sockets, waterproof plugs typically involve waterproof male and female connectors. When joined, they form a comprehensive waterproof plug unit, also known as a waterproof connector. This duality in naming is similar to referring to a bicycle as a 'bike'. Our collection encompasses 2-pin, 3-pin, 4-pin, 5-pin, and 6-pin male and female waterproof connector cables for the M6 series, accommodating a vast array of connectivity needs.

M6 Waterproof Cable Assembly Specification

Technical Specifications:

• Connector Diameter: M6 (6mm)
• Number of Pins: Typically ranges from 2 to 5, but can vary based on the specific model and application.
• Rated Voltage: Commonly around 60V to 250V, depending on the application.
• Rated Current: Approximately 1A to 5A, subject to the design and application.
• Protection Rating: IP67 or IP68, ensuring protection against dust and water immersion.
• Operating Temperature: Typically -25°C to 85°C, but can vary based on materials used.
• Material:
• Contact: Gold or silver-plated brass or copper.
• Insulation: PBT, PA66, or other high-quality plastics.
• Shell: Nickel-plated brass, stainless steel, or other durable metals.
• Seal & Gasket: Silicone or rubber to ensure waterproof integrity.
• Connection Type: Screw locking mechanism for quick and secure connections.
• Cable Specifications:
• Type: Multi-core, shielded or unshielded based on application.
• Material: PVC, TPE, or other relevant materials based on environment and flexibility requirements.
• Length: Customizable based on user requirements.
• Termination Options: Solder, crimp, or screw terminals.

Applications:

• LED Lighting: Particularly for outdoor or underwater lights.
• Sensors & Detectors: Environmental, proximity, or industrial sensors.
• Communication Devices: For devices exposed to moisture or wet conditions.
• Industrial Equipment: Machines that operate in humid or wet environments.

Advantages:

• Compact design suitable for tight spaces.
• Quick and secure connection mechanism.
• Robust waterproof capabilities ensuring durability and uninterrupted operation.
• Versatility in applications ranging from industrial to consumer electronics.

China OEM M6 Waterproof Cable Assembly

Introduction:

China, being a global hub for manufacturing, offers a vast array of cable assembly solutions. Among these, the OEM M6 waterproof cable assembly stands out for its compact design tailored to specific client requirements.

Features of OEM M6 Waterproof Cable Assembly:

• Bespoke Design: Tailored to fit the unique specifications of clients.
• Compact Size: The M6 moniker (6mm connector diameter) ensures a minimalistic design suitable for space-constrained applications.
• Protection: Typically rated IP67 or IP68, ensuring robust protection against dust and water immersion.
• Versatile Applications: Suitable for industries ranging from LED lighting to communication devices, sensors, and industrial equipment.
