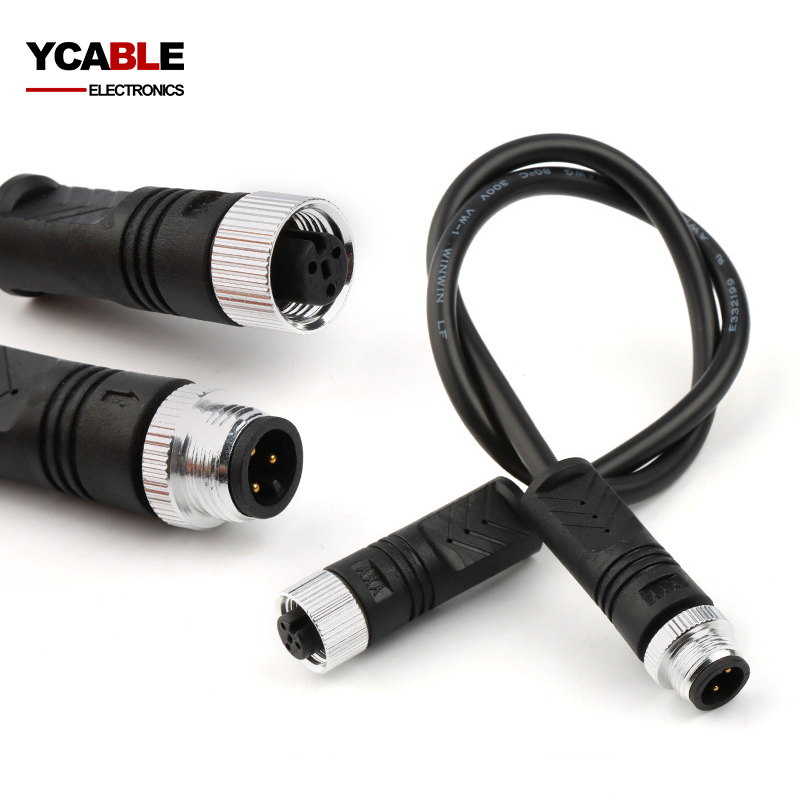

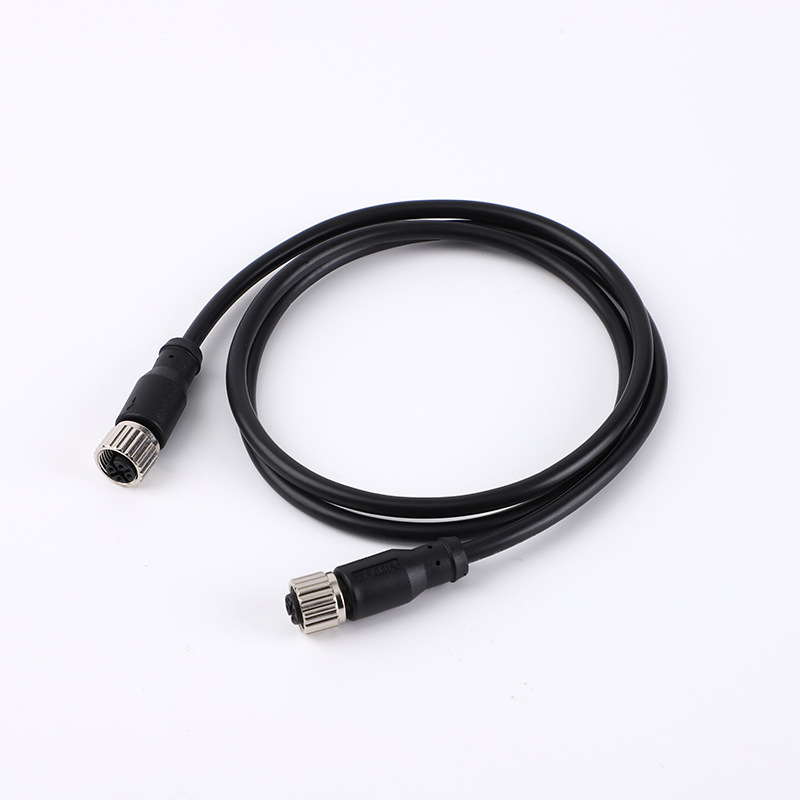

M12 Connector Waterproof Cable Assembly

Description

What is M12 cable assembly?

In the realm of factory automation, the M12 connector emerges as a key player. This circular connector, boasting a 12-mm locking thread, is a linchpin in linking actuators, sensors, and various industrial network systems like ethernet and Fieldbus. Tailored for environments where washdowns and corrosive conditions are the norm, M12 connectors are versatile, available in pin configurations of 3, 4, 5, 8, and 12, each tailored to specific application demands. For sensors and power-centric tasks, 3 and 4 pins are pivotal; whereas, for PROFINET and ethernet, 4 and 8 pins are the go-to. In the realms of Fieldbus, CAN bus, and DeviceNet, the preference often lies with 4 and 5 pins, with 12 pins serving complex signal demands. Our comprehensive M12 system not only includes connectors but extends to IO modules and a variety of M12 cable assemblies. These connectors find their place in a plethora of fields ranging from agriculture and alternative energy to communications, robotics, and beyond.

In the sphere of M12 cables and connectors, we see a deliberate design for a multitude of sectors including sensor and industrial automation, network and telecommunication realms, as well as LED lighting, marine environments, packaging, and manufacturing equipment. YCABLE ELECTRONICS caters to a wide spectrum of needs, offering solutions for signal, power, Ethernet, and hybrid M12 cable and connector configurations. Constructed to withstand demanding conditions, these robust cables and connectors adhere to the highest manufacturing standards. When engaged and locked, each component boasts an IP67 rating. YCABLE ELECTRONICS doesn’t just stop at offering a range of standard M12 connectors and cables, but also excels in providing bespoke cable assemblies with prompt delivery times. The M12 connectors and cables from YCABLE ELECTRONICS stand as cost-efficient, adaptable solutions for various onsite installations, available in an array of pole options from 3 to 12, and diverse build materials, orientations, and mounting options.

Key Features Include:

• IP67 rating upon mating and locking
• Compliance with UL94V-0 standards
• A 5 A/60 V rating
• Operational temperature tolerance from -40°C to +100°C

Applications Extend To:

• Industrial automation
• Network and telecommunications
• Marine applications
• LED lighting systems
• Manufacturing equipment

M12 Coding Varieties:

• A-coded for sensors and DC power
• B-coded for PROFIBUS
• D-coded for 100Mbit Ethernet and Profinet
• X-coded for high-speed 10Gbit Ethernet (10GbE)

Power Supply M12 Coding:

• S-Coded and K-Coded for AC power supplies up to 630V/16 A
• T-Coded and L-Coded for DC power supplies up to 63V DC/16 A

M12 connector cable are synonymous with resilience in industrial settings, offering IP67-rated protection against elements like dust and water, and resistance to impact, vibration, UV, and temperature changes. For extreme conditions, such as frequent washdowns, options with IP68 and IP69K sealing are available. The longevity of these connectors is also defined by their mating cycle ratings, influenced by the quality of contact and plating materials used. Premium options like gold-plated beryllium copper contacts outperform lower-end alternatives like tin-plated copper alloy contacts, offering over 100 mating cycles.
