M8 Cable Assembly Waterproof Cable Assemblies Manufacturer

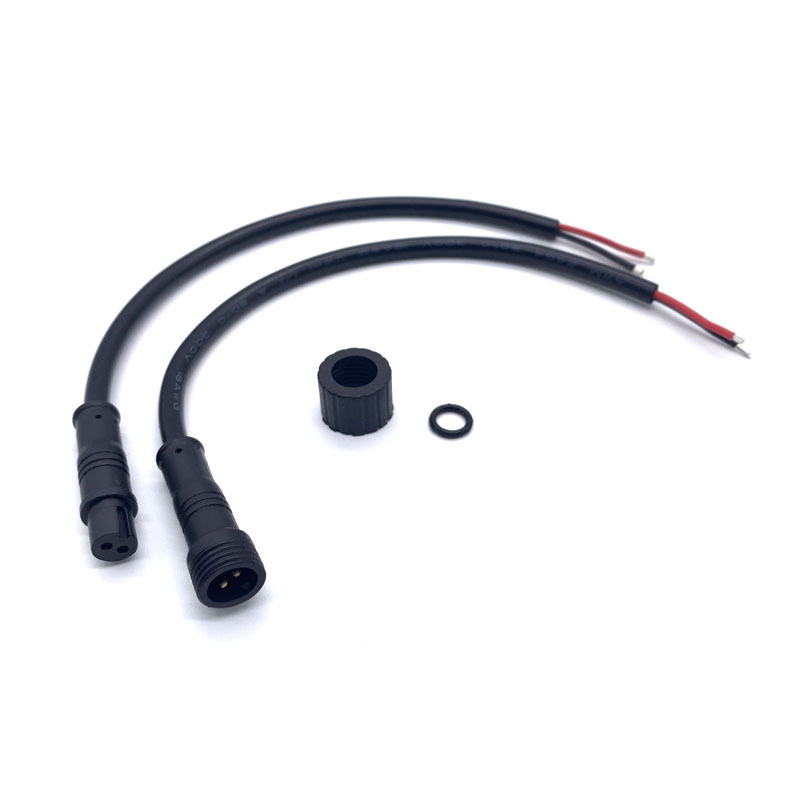

M8 Connector Waterproof Cable Assembly

Item Number:M8 Connector Waterproof Cable Assembly

Pin:: 2p，3p, 5p, 6p/Custom
Connector:: According to customer's request to produce
Type:: Same direction/Opposite direction
Color:: Custom
Length:: Custom
Wire Gauge:: Custom
Service:: OEM, ODM, Custom

Environmental Specifications:

Environmental Space – Non-plenum
Flame Test Method – CMR
Installation Temperature – 0 °C to +60 °C (+32 °F to +140 °F)

Operating Temperature – -20 °C to +60 °C (-4 °F to +140 °F)

Temperature Rating – 75 °C

General Specifications:

Cable Type

Custom

Conductor, quantity
Custom

Cable Component Type
PE, PVC, Horizontal/Custom

Conductor Gauge, singles
Custom

Conductor Type, singles
Solid/Stranded

Characteristics:

M8 cable assembly

In

M8 Cable Assembly

Electrical Specifications
ITEM	M8 Cable Assembly
diameter	8mm
Number of Pins	2,3,4,5,6PIN/Custom
Cable Length	Custom
Rated Current	1A~6A Custom
Operating Voltage, maximum	60V~200V, Custom
Operating Temperature	-40~125C
Waterproof Grade	IP65 IP66 IP67 IP68

Description

M8 Cable Assembly: Industrial Precision and Durability

The M8 cable assembly, an integral component in industrial sensor technology, boasts a robust 3-pin screw configuration and ensures a waterproof seal. These assemblies, pre-fabricated for immediate use, maintain their integrity even under submersion. Designed for strenuous conditions, the M8 connectors are a staple in challenging industrial settings.

M8 Cable Assembly

Utilization in Industry

The M8 connector, recognizable by its 8-mm circular coupling design, is primarily employed in industrial automation systems. It forms vital connections between sensors, actuators, and switches. While comparable to the M12 in function, the M8 differentiates itself with a more compact 8mm threaded head, suitable for applications where space efficiency is key.

Features of M8 Cable Assemblies

Varied configurations: 3 pin, 4 pin, & 5 pin options.
Diverse connector types: Male to Male, Female to Female, Male to Female, Double Ended, Single End to Blunt Cut.
Compliance with IP67/IP68 waterproof standards.

Material Specifications

Connector Shell: Options of Nickel Plated Brass or Stainless Steel (for unshielded variants).
Connector Insulator: Standard PBT-Black, UL94 V-0 (alternative materials available upon request).
Connector Contacts: Brass with 10u" Gold Plating.
M8 Cable: 26 AWG, 2.5 Twisted Pairs featuring Foil, Drain, Braid Shield.
Cable Insulation Material: Standard SR-PVC (custom materials available).
Cable Jacket Material: PVC as standard (other options available).
Operating Temperature Range: -40°C to 80°C.

Diverse Connector and Cable Assembly Options

M8 circular connectors and cable assemblies are available in a range of configurations, including 3, 4, 5, 6, and 8 pin models in both male and female jack or plug forms. These units are designed for electrical currents from 1.5 A to 3 A, and voltage ranges between 30 VAC and 60 VAC. With A-coding for 1 Gbit Ethernet compatibility and B-coding suitable for Profibus systems, these models are versatile for various industrial applications. All variants are built with the rigors of factory automation and industrial settings in mind, evidenced by their IP67 certification for environmental resilience.
