M14 Cable Assembly

Electrical Specifications
ITEM	M14 Cable Assembly
Diameter	14mm
Number of Pins	2,3,4,5,6 8 10 12 PIN/Custom
Cable Length	Custom
Rated Current	1A~6A Custom
Operating Voltage, maximum	60V~200V, Custom
Operating Temperature	-40~125C
Waterproof Grade	IP65 IP66 IP67 IP68

Description

M14 Cable Overview

Product Description:

The M14 cable, a robust member of our Waterproof Cable Assembly series, is specifically engineered for resilience. This cable is aligned with the IEC 60945 standards, focusing on environmental endurance.

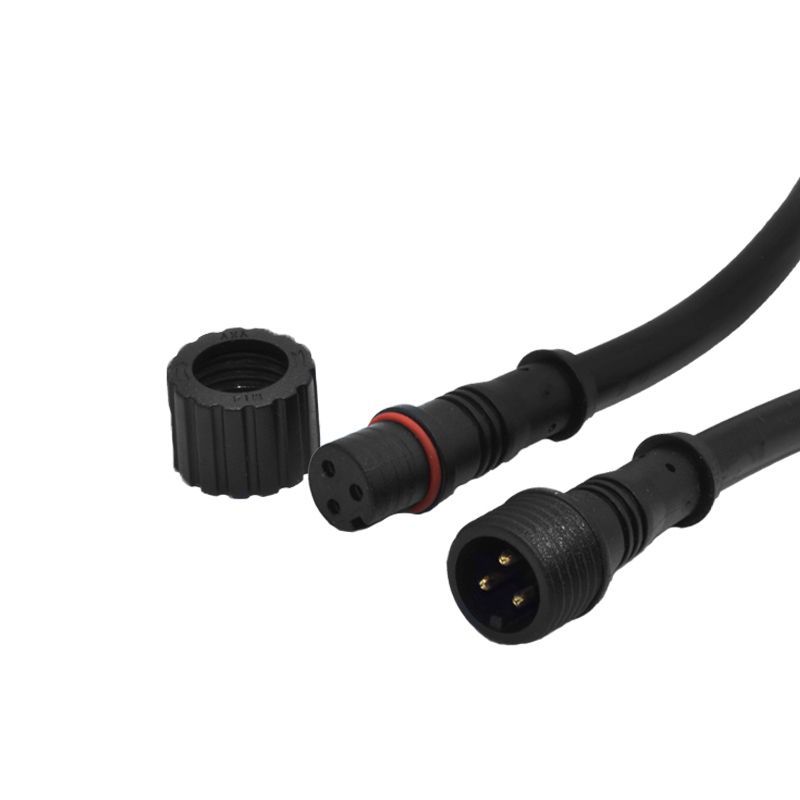

M14 Cable

Key Specifications:

Connector Compliance: Adheres to IEC 60945 for environmental testing.
Connection Security: Ensured through a screw lock mechanism.
Plating Variety: Options include Tin over Nickel, among others.
Visual Design: Sleek Black finish.
Eco-friendly Standards: Meets RoHS requirements.
Material Safety: Constructed with UL94V-0 Thermoplastic for flame resistance.

Primary Applications:

Illumination of streets with LED lighting.
Serving as a power conduit for LED setups.
Modules for outdoor displays.

Advantages and Features:

Enhanced connection stability through screw locking.
Rated with an IP67, indicating significant protection against elements.
Capable of enduring the rigors of outdoor environments.

Mechanical Attributes:

Operational Temperature Range: From a chilly -40℃ to a warm 85℃.
Durability of Connection: Guaranteed for a minimum of 50 mating cycles.
Terminal Holding Strength: A minimum of 60G.

Electrical Characteristics:

Amperage Capacity: Rated at 10A.
Voltage Compatibility: 220V.
Electrical Integrity: Can withstand 500 VAC for 1 minute without failure.
Resistance to Insulation Breakdown: At least 100 MOhm.
Maximum Contact Resistance: Capped at 1mOhm.

Materials Used:

Male Terminal Composition: Crafted from Brass.
Female Terminal Build: Phosphor Copper.
Insulation Material: Durable Thermoplastic.
Seal for Water Resistance: Silicon Rubber.

Compliance with Environmental Standards:

RoHS2.0: Fully aligned.
REACH SVHC: Compliant.

This M14 cable and its assembly are tailored for applications that demand high durability and compliance with environmental standards, making them ideal for various industrial and outdoor purposes.
