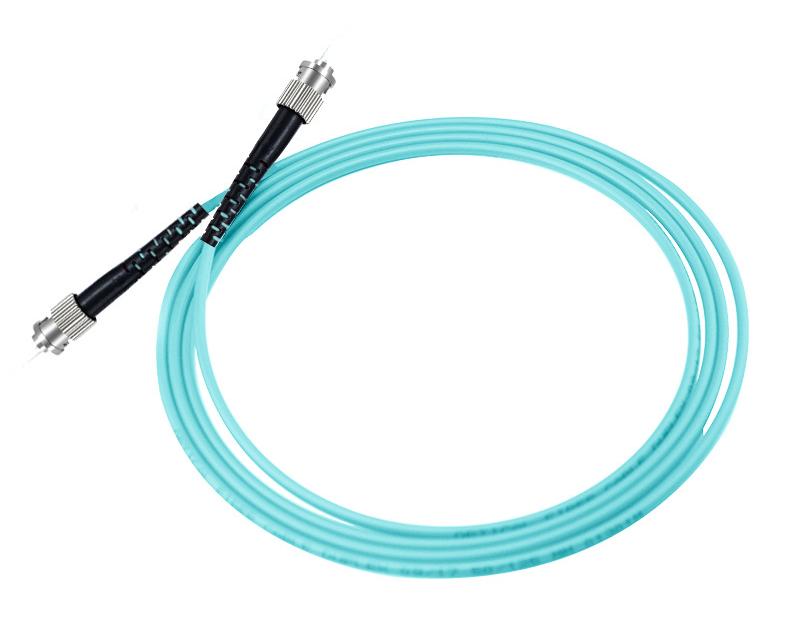

ST-ST Optical Fiber Patch Cable

Description

What is ST ST Optical Fiber Patch Cord?

The ST ST fiber patch cord, a vital component in fiber optic networks, is designed to connect devices for efficient signal routing. The "ST" in ST ST stands for Straight Tip, a quick-release bayonet style connector. These connectors are cylindrical in shape, featuring a twist lock coupling mechanism, operating on a push-in and twist basis.

Core Features

• Signal Transmission Efficiency: Characterized by low insertion loss and high return loss.
• Ease of Operation: Designed for high-density connections and user-friendly operation.
• Reliability and Stability: Known for its high credibility and stability in performance.
• Consistency and Interchangeability: Excelling in repeatability and exchangeability, making it versatile for various applications.

Applications

• Testing and Diagnostic Equipment: Suitable for a range of testing scenarios.
• FTTX+LAN Networks: Ideal for fiber-to-the-x and local area network systems.
• Optical Fiber CATV: Useful in cable television networks.
• Optical Communication and Telecom Systems: Essential in wide-ranging communication networks.

ST ST Patch Cord Design and Usage

The ST ST fiber optic patch cord, a bayonet-mount type cable, incorporates a push-in and twist mechanism. It is recognized as an earlier generation patch cord, primarily known for its role in Ethernet solutions from the 1980s and 1990s. The ST connector resembles the BNC (Bayonet Nut Connector) in design and functionality.

Technical Aspects and Durability

• Standard Compliance: Manufactured in line with the IEC 61754-2 standard, these connectors are suitable for high-speed data communication.

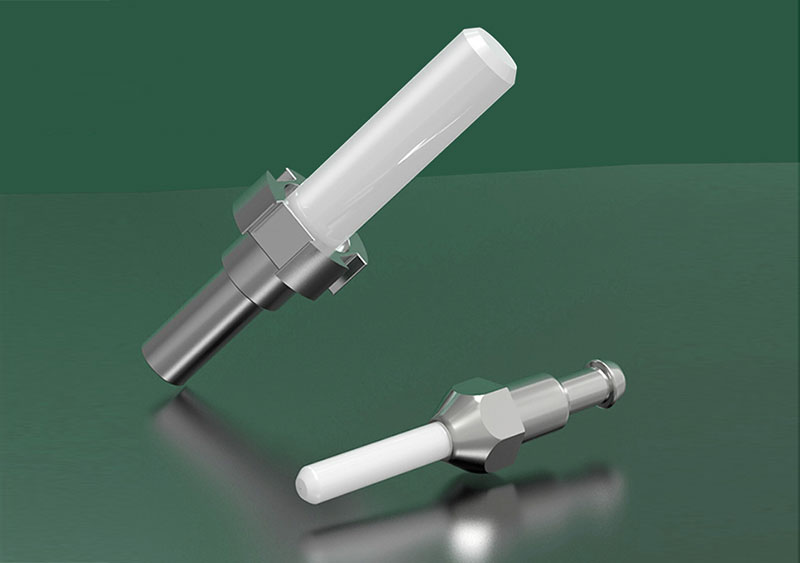

• Secure Bayonet Locking Mechanism: Features a unique design that ensures a locking coupling, preventing any movement of the 2.5mm ceramic ferrule.
• Robustness: Designed to withstand strains, pulls, and impacts during installation and maintenance, ensuring prolonged durability.

Performance and Affordability

• High-Speed Bandwidth: Delivers uninterrupted and high-speed bandwidth with minimal network losses.
• Cost-Effectiveness: Offered at competitive prices, as YCABLE ELECTRONICS is a direct manufacturer and supplier.

Quality Assurance and Customization

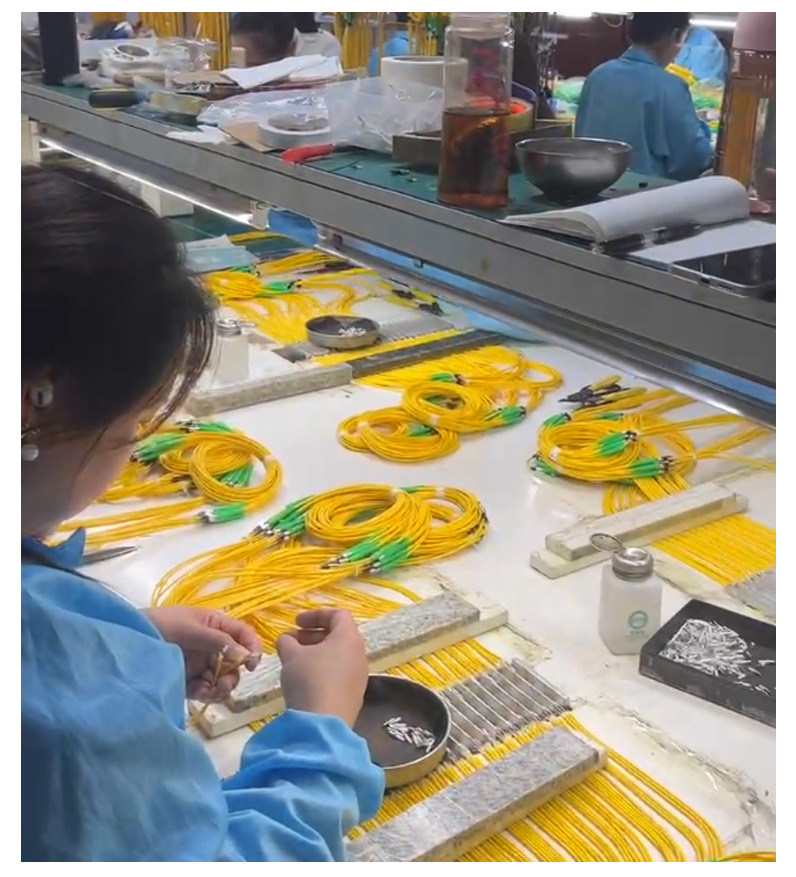

• Optical Inspection and Testing: Each patch cord undergoes thorough inspection, guaranteeing low insertion loss, not exceeding 0.02 dB.
• Variety and Customization Options: YCABLE ELECTRONICS provides these cable assemblies in single mode (9/125) and multimode (50/125 and 62.5/125) options, suitable for both riser and plenum applications. Complete customization and OEM/ODM services for ST ST patch cords are available.

What is the advantage of ST connector?

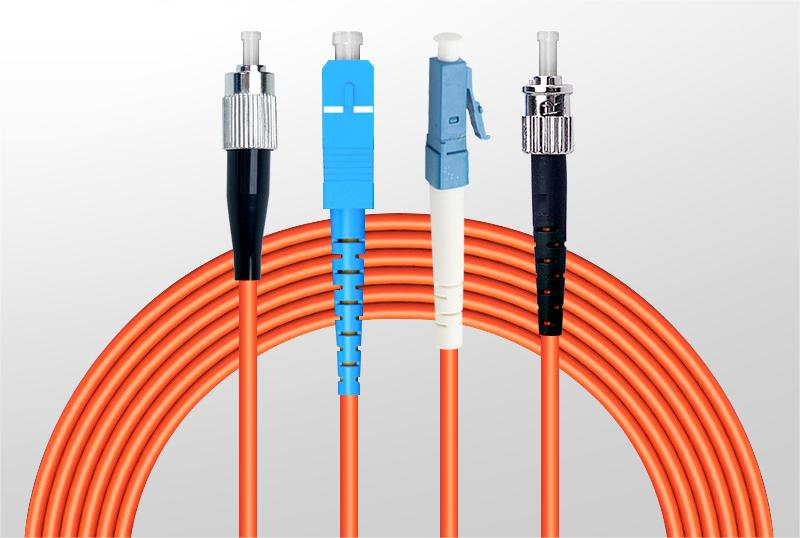

In the intricate landscape of fiber optic connectors, understanding the pivotal role of the ST Patch Cord demands a broad perspective. Let's navigate through various connectors to contextualize the ST Patch Cord's prominence.

LC Connectors: A Compact Powerhouse

The LC Connector, small yet mighty, represents a modern alternative to the traditional SC connector. Characterized by its latch mechanism and small form factor, this connector shines in settings crammed with an abundance of connections, such as datacom racks.

FC Connectors: Precision's Ally

With a design comprising a ceramic ferrule and a unique alignment feature, the FC Connector stands out for its complex build. This translates into a premium choice for precision-centric equipment, like OTDRs, where accuracy is non-negotiable.

SC Connectors: The Square Pioneer

Dubbed “the square connector” for its distinctive end-face, the SC Connector is a trailblazer in utilizing ceramic ferrules. Its journey from costly production to affordable efficiency marks its evolution into a market favorite.

MTP/MPO Connectors: The High-Capacity Challenger

Boasting the ability to accommodate up to 24 fibers, the MTP/MPO Connector is a giant among connectors. Its notable capacity comes with a trade-off of higher attenuation loss, and its necessity for gendered pairing raises questions about its long-term viability in data centers.

The Rise of the ST Connector

With the scene set, let's delve into the ST Connector, or Straight Tip Connector. A keystone in telecom, this connector combines round ceramic ferrules with a unique bayonet-style lock. This blend ensures stellar performance across a spectrum of distances.

Installation: Precision Matters

The effectiveness of ST Connectors hinges on meticulous installation. Missteps here can lead to significant light loss, a common grievance among technicians. Proper installation, however, unlocks the connector's full potential.

Variations: ST and ST-II

The ST realm is bifurcated into ST and ST-II, with the former featuring a push-in mechanism and the latter a spring-loaded twist design. This diversity caters to a range of application needs.

ST Connectors: The Jack of All Trades

Surpassing the once-dominant SC Connectors, ST Connectors have become a mainstay in telecom due to their adaptability. Their 90-degree flexibility is a boon in confined spaces.

ST in Fiber Patch Cables

In the realm of fiber patch cables, ST Connectors enable a bandwidth bonanza, bridging short and long distances with high-speed proficiency. Their utility extends to a variety of network components, making them a versatile ally.

Ceramic Excellence

The ceramic composition of ST Connectors guarantees minimal signal loss and robust performance, particularly in electronically dense environments. Their interference immunity is a key advantage in crowded settings.

In summary, ST Connectors have emerged as ubiquitous elements in Local Area Networks, Data Processing Networks, and Premises Distribution Applications, owing to their superior attributes and versatile applications.
