SC-SC Optical Fiber Patch Cord

Description

What is SC SC Fiber Optic Patch Cord?

SC SC Simplex 9/125 Single Mode Patch Cord

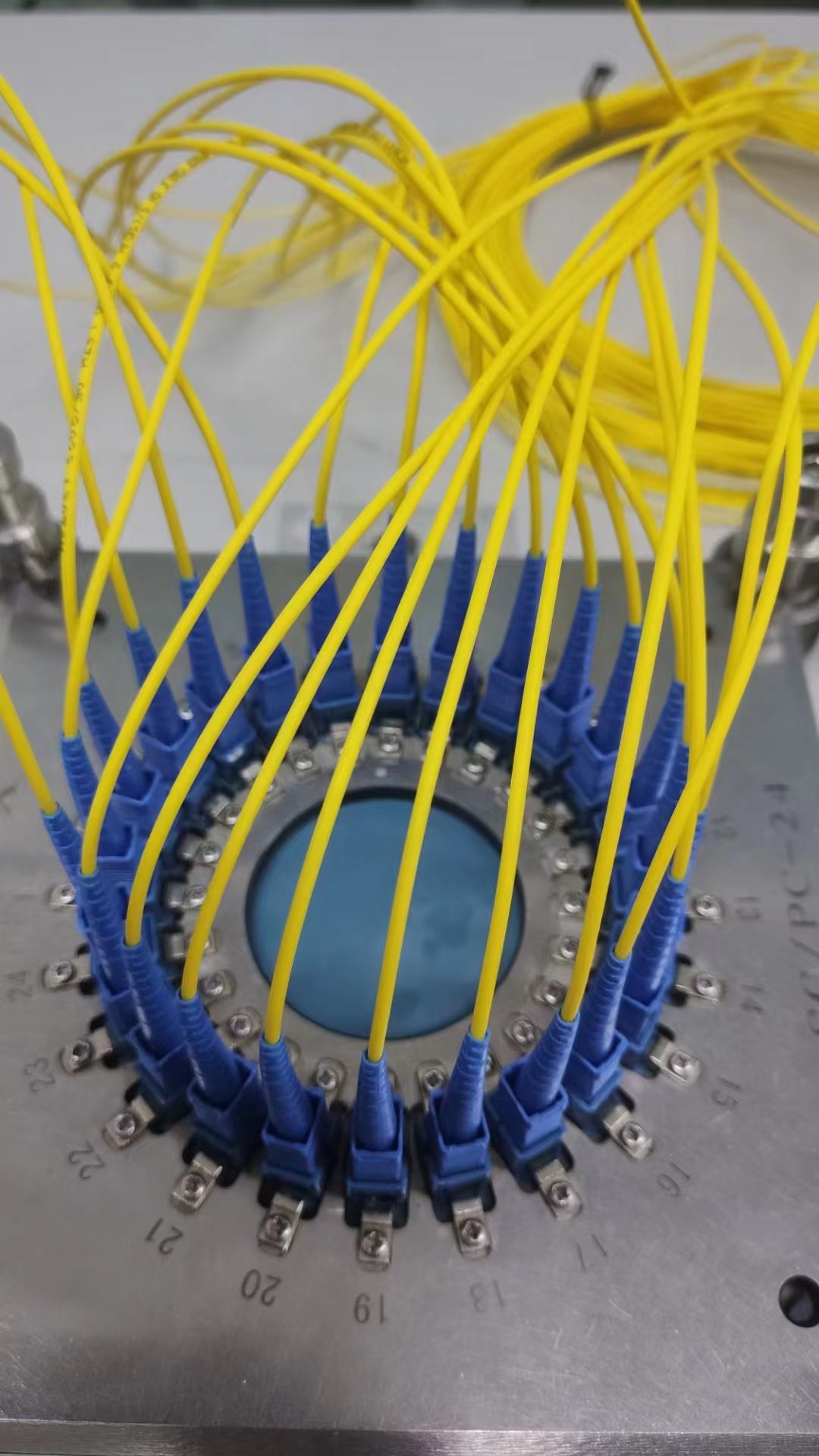

The SC SC single mode fiber optic patch cord, featuring a 3.0mm diameter, is optimally designed for extended cable runs in single mode networks. This 3-meter(Custom Length) patch cord is sheathed in a Yellow(Custom) cable jacket, ensuring both visibility and durability. Each cable undergoes rigorous functional testing to ensure peak performance upon delivery. Utilizing this SC SC patch cord enhances network reliability. Customizable options in length, connector types, and polishes are available to meet specific requirements.

Detailed Characteristics

• SC SC Fiber Patch Cord: Designed for connecting devices in a network for efficient signal transmission.
• Connector Style: SC, short for Subscriber Connector, is a square-shaped, push-pull style connector, easy to engage and disengage, and is keyed for accurate alignment.

Key Features

• Low Insertion Loss, High Return Loss: Ensures efficient signal transmission.
• Ease of Operation: The connector's design facilitates simple handling.
• Reliability and Stability: Maintains consistent performance.
• Repeatability and Interchangeability: Ensures versatility across various network setups.

Applications

• Network Testing Equipment: Essential for diagnostic and operational checks.
• FTTX+LAN: Ideal for fiber to the home or local area networks.
• Optical Fiber CATV: Enhances cable television systems.
• Optical Communication and Telecom: Fundamental in broad-scale communication infrastructure.

SC SC Fiber Optic Patch Cords

These cords, crucial for connecting network devices, feature the popular SC (Standard Connector or Subscriber Connector) in networking industries.

Options and Quality

• Mode and Configuration: Available in both singlemode (OS1, OS2) and multimode (OM1, OM2, OM3, OM4) with options for single or duplex SC/SC configurations.
• Durability: Designed to withstand bends up to 90 degrees with minimal signal loss.
• Space Efficiency: Ideal for high-density cabling in various network environments.

Versatility in Networking Applications

• Broad Application Range: Suitable for data communication and telecom in multiple formats including GPON, EPON, GBIC, and MADI.
• Compatibility with Transceivers: Accommodates 10G SR, 10G LRM, and SFP+ transceivers, making it suitable for Ethernet applications (10G/40G/100G).
• Ideal for 10G Fiber Connections: This SC SC patch cord is also perfectly suited for 10G fiber optic connections, enhancing network efficiency and performance.

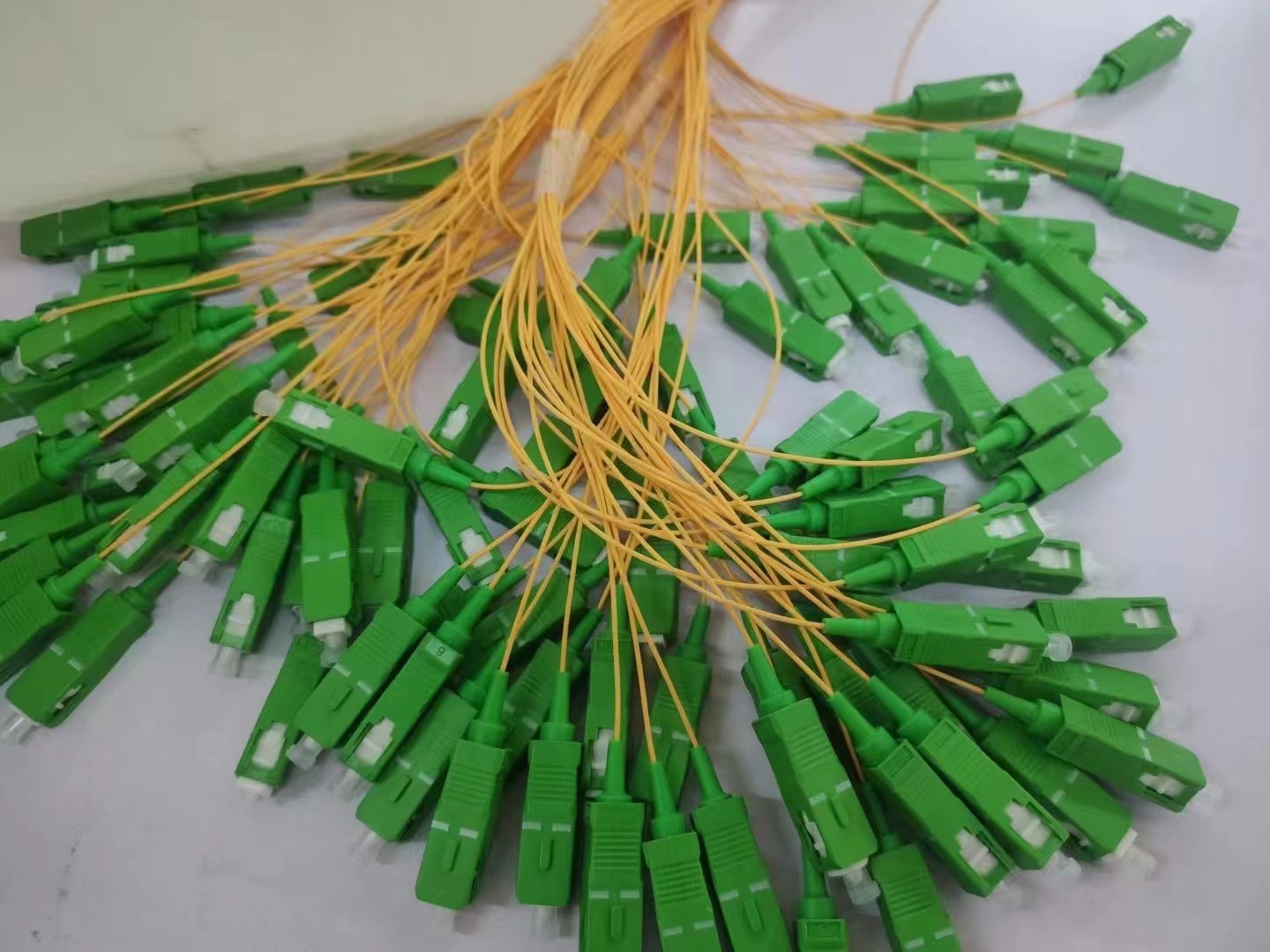

SC Fiber-Optic Cable Connectors

Introduction to SC Connectors SC connectors, a vital component in the world of fiber-optic cable connectivity, are prevalently used in optical network domains like internet services and cable TV. The acronym SC has various interpretations, including Square Connector, Standard Connector, Subscriber Connector, or Stick-and-Click Connector. Despite being called a square connector, its actual form is rectangular.

Key Features of SC Connectors

• Design: The SC connector is recognized for its snap-in arrangement paired with a push-pull latching mechanism, allowing for straightforward connections and disconnections.
• Construction: It incorporates a 2.5 mm ceramic ferrule, a commonality it shares with ST, FC, FDDI, and ESON connectors, to bolster performance and longevity. While its square shape renders it more compact and manageable than earlier models, it is notably larger than the later-developed LC connector.

Development and Adoption Originating in the mid-1980s from Nippon Telegraph and Telephone (NTT) labs, the SC connector was initially a high-cost alternative to the ST connector. Over time, advancements in manufacturing and materials have rendered SC connectors more cost-effective and widely utilized.

Design Specifics

• System Compatibility: SC connectors are frequently chosen for both single-mode and multimode systems, thanks to their outstanding performance.
• Duplex Capability: Available in both single and duplex configurations, the latter facilitating full duplex communication using two cables and connectors.
• Durability and Efficiency: Rated for up to 1000 mating cycles, these connectors boast a low insertion loss of just 0.25 dB. Their square design and keying features ensure accurate and easy alignment during connection, with the snap feature securing the connection.
• Color Coding: SC connectors employ a color-coding system for easy identification.

Standards and Applications

• Telecommunications Standard: The SC connector was the inaugural choice as the standard connector for TIA-568-A specifications.
• Market and Usage: Widely used in data communication, telecommunications, and various optical network applications, including internet and CATV. They are also integral in optical cabinets, media converters, and FTTX systems like EPON and GPON.
