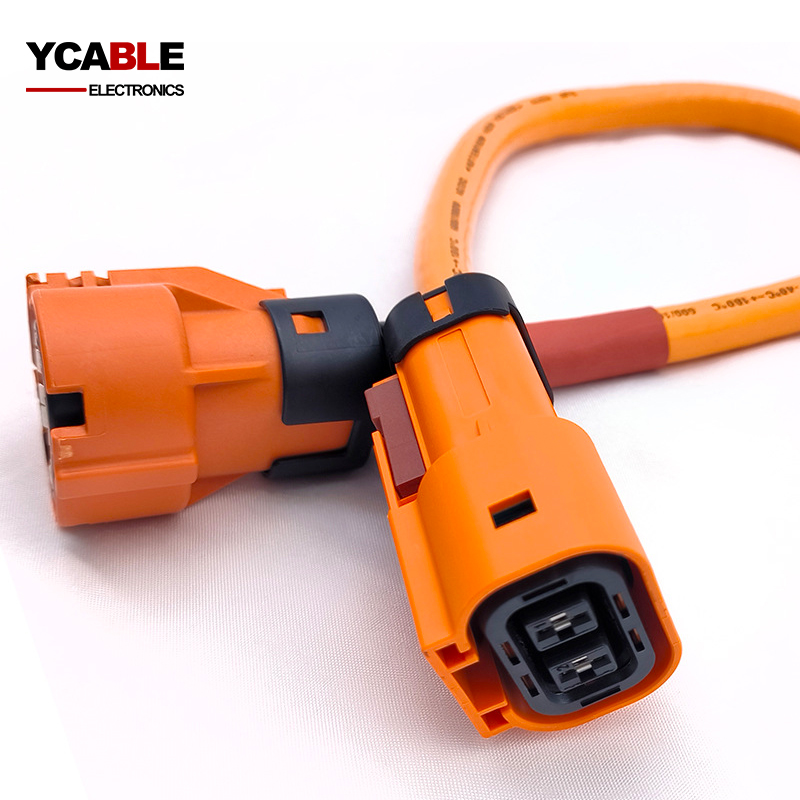

High Voltage Wire Harness For Automotive

High Voltage Wire Harness For Automotive

Item Number:High Voltage Wire Harness For Automotive

• Pin:: 2.5mm2, 3mm2, 4mm2, 5mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2,95mm2, 120mm2
• Connector:: According to customer's request to produce
• Type:: Same direction/Opposite direction
• Color:: Custom
• Length:: Custom
• Wire Gauge:: Custom 26AWG 28AWG 24AWG 22AWG 20AWG 18AWG
• Service:: OEM；Custom

Environmental Specifications:

Environmental Space – Non-plenum
Flame Test Method – CMR
Installation Temperature –  0 °C to +60 °C (+32 °F to +140 °F)

Operating Temperature –  -20 °C to +60 °C (-4 °F to +140 °F)

Temperature Rating –  75 °C

General Specifications:

Cable Type

RG58 Coaxial Cable

Conductor, quantity
1

Cable Component Type
PE, PVC, Horizontal

Conductor Gauge, singles
23AWG

Conductor Type, singles
Solid/Stranded

Characteristics:

• Performance up to 250-300 MHz,
• Enhanced protection against crosstalk and system noise.
• There are many brands sold on the market, so everyone must choose a large brand to ensure the quality
• Suitable for car wiring harness
