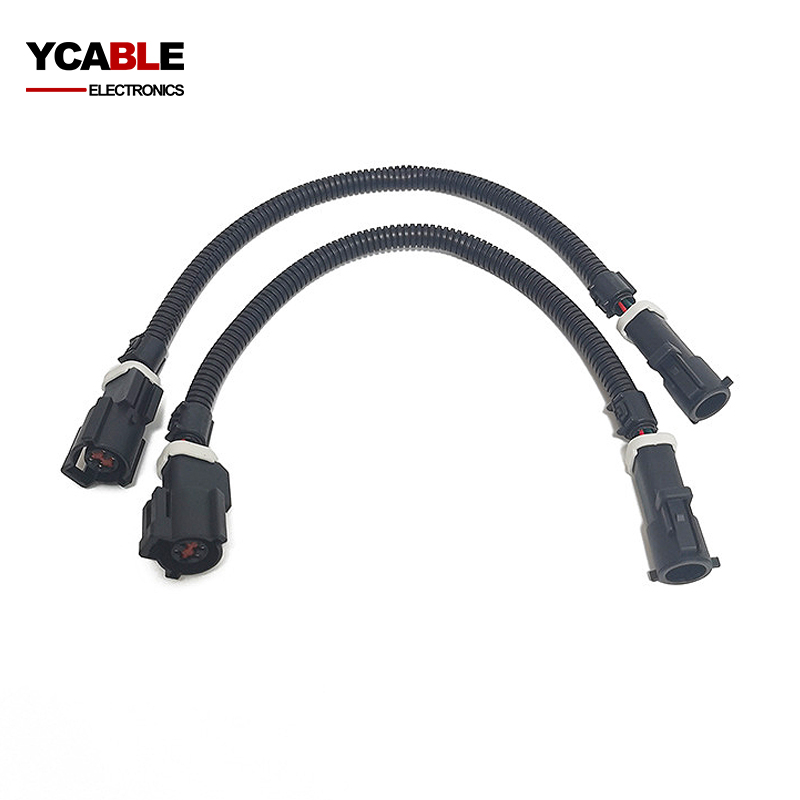

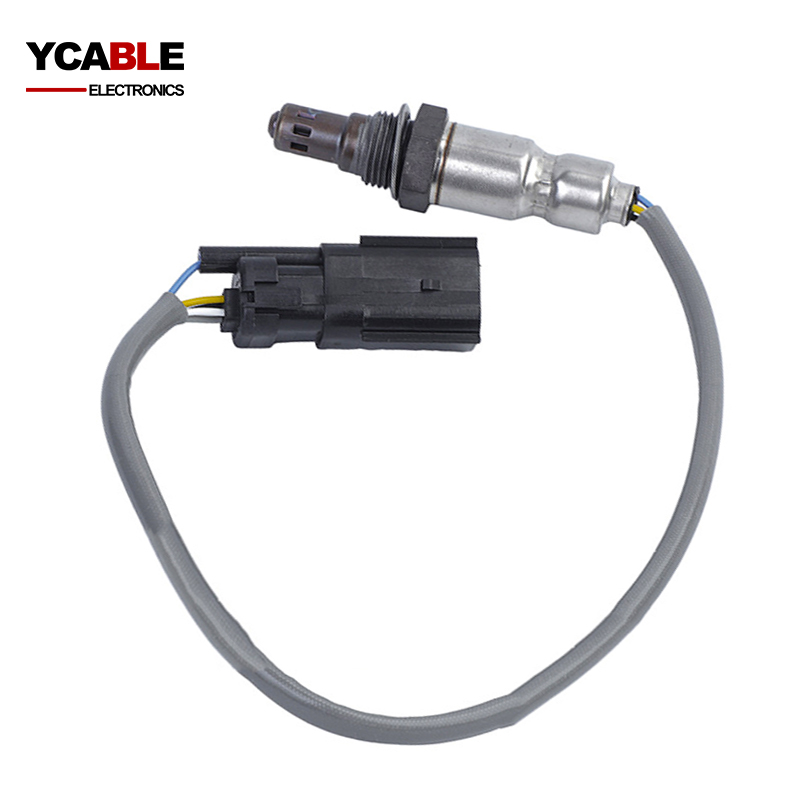

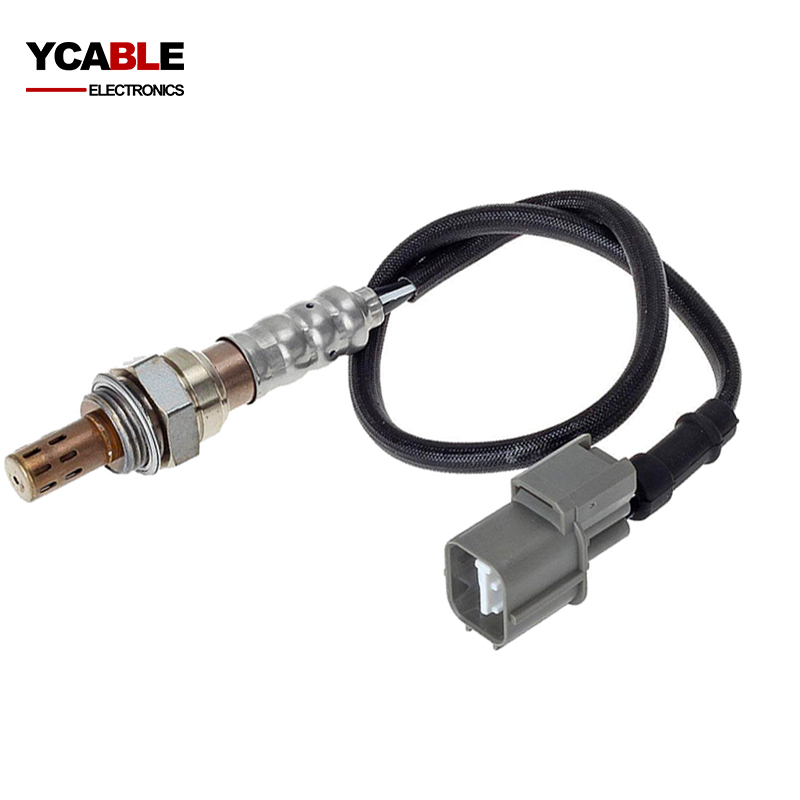

Custom O2 Sensor Wiring Harness


Item Number:Custom O2 Sensor Wiring Harness

  • Pin:: 2p,3p, 4p, 5p, 6p, 7p, 8p, 9p, 10p, 11p, 12p
  • Connector:: According to customer's request to produce
  • Type:: Same direction/Opposite direction
  • Color:: Custom
  • Length:: Custom
  • Wire Gauge:: Custom 26AWG 28AWG 24AWG 22AWG 20AWG 18AWG
  • Service:: OEM;Custom

Environmental Specifications:

Environmental Space – Non-plenum
Flame Test Method – CMR
Installation Temperature –  0 °C to +60 °C (+32 °F to +140 °F)

Operating Temperature –  -20 °C to +60 °C (-4 °F to +140 °F)

Temperature Rating –  75 °C


General Specifications:

Cable Type

RG58 Coaxial Cable

Conductor, quantity
1

Cable Component Type
PE, PVC, Horizontal

Conductor Gauge, singles
23AWG

Conductor Type, singles
Solid/Stranded


Characteristics:

  • Performance up to 250-300 MHz,
  • Enhanced protection against crosstalk and system noise.
  • There are many brands sold on the market, so everyone must choose a large brand to ensure the quality
  • Suitable for car wiring harness
In
Contact Us Now
Categories

Car Wiring Harness Terminal Wires


Electrical Specifications
ITEM
Car Wiring Harness Terminal Wires
dc Resistance Unbalance, maximum
5 %
dc Resistance, maximum
7.61 ohms/100 m
Mutual Capacitance
5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)
69 %
Operating Frequency, maximum
300 MHz
Operating Voltage, maximum
80 V
Transmission Standards
 ANSI/TIA-568-C.2  CENELEC EN 50288-6-1   ISO/IEC 11801 Class E
Dielectric Strength, minimum
1500 Vac                   2500 Vdc

Description
