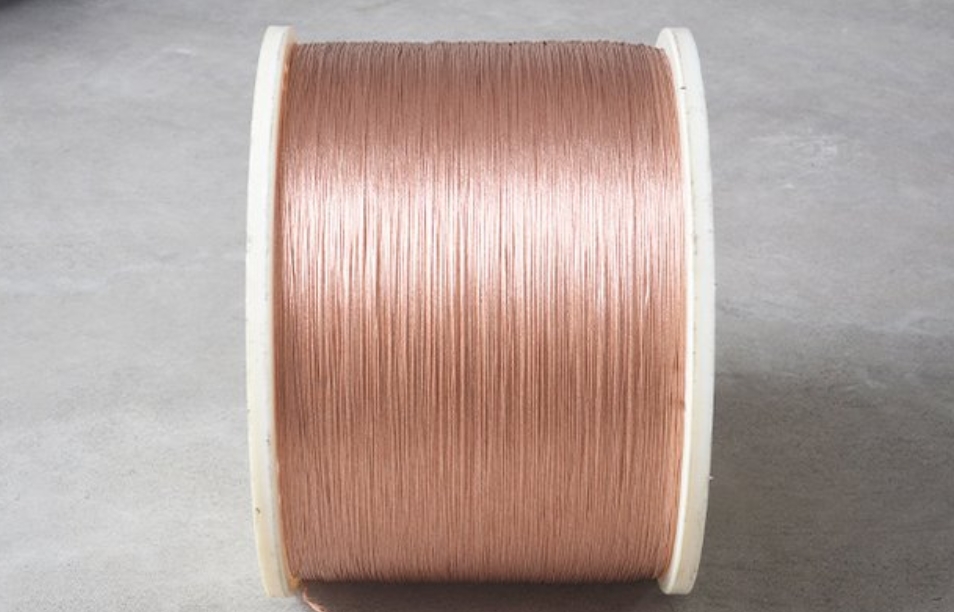

CCA Wire 5% Stranded Copper Clad Aluminum Wire

Description

CCA wire copper clad aluminum wire

Diameter specification: 0.12mm -8.00mm

Product Description: Copper clad aluminum wire, commonly referred to as CCAW or CCA wire, is an electrical conductor composed of an internal aluminum core and an external copper clad layer. This combines the advantages of two metal materials on a single wire, combining the excellent conductivity of copper with the lightweight characteristics of aluminum, overcoming the shortcomings of aluminum wire and forming copper clad aluminum wire with good conductivity, low density, softness, corrosion resistance, easy welding, and low price. Thus developing into a new type of metal conductive material. CCA wires are divided into hard drawn (H) and annealed (A). According to the process, it can be divided into cladding CCA wire and plating CCA wire. The difference is the size of the copper content, which ranges from 5% to 25%. We also support customized copper content.

Copper Clad Aluminum Wire Advantages:

1.Under the same weight and diameter, the length of CCA wire is 2.6-3.2 times that of copper wire.

2. The price of copper clad aluminum is much lower than that of pure copper, with a significant price advantage.

3.CCA wire is more ductile than copper wire. Unlike aluminum, aluminum produces insulating oxides, which are easier to process and have good conductivity.

4. CCA wire is lightweight, easy to transport and install, reducing labor costs.

5. CCA welding cable and wire has significant social benefits and can save a large amount of copper raw material resources.

Copper Clad Aluminum Wire Application:

CCA wires are widely used for the transmission of cable TV signals and high-capacity communication network signals, control signal wires, welding wires, etc.

High frequency signal transmission:

• 1. Conductor materials for coaxial cable of cable television;
• 2. Conductor material for 2.50 Ω radio frequency (RF) cables;
• 3. Flexible RF coaxial cable inner conductor material;
• 4. Inner conductor materials for computer cables and other data cables;
• 5. Inner conductor material of ultrafine coaxial cables;

Power transmission:

• 1. Conductor material of enameled wire;
• 2. Power cable conductor materials;
• 3. Control cable conductor material;
• 4. Inner conductors of automotive and locomotive cables;
• 5. Building cable conductor materials;
• 6. Bus conductor material;
• 7. Fuse material;
• 8. RF shielded cable network;

Special electromagnetic wire:

• 1. Computer conductor materials;
• 2. Mobile communication wire;
• 3. Coils or cylinders used in aerospace or military equipment;

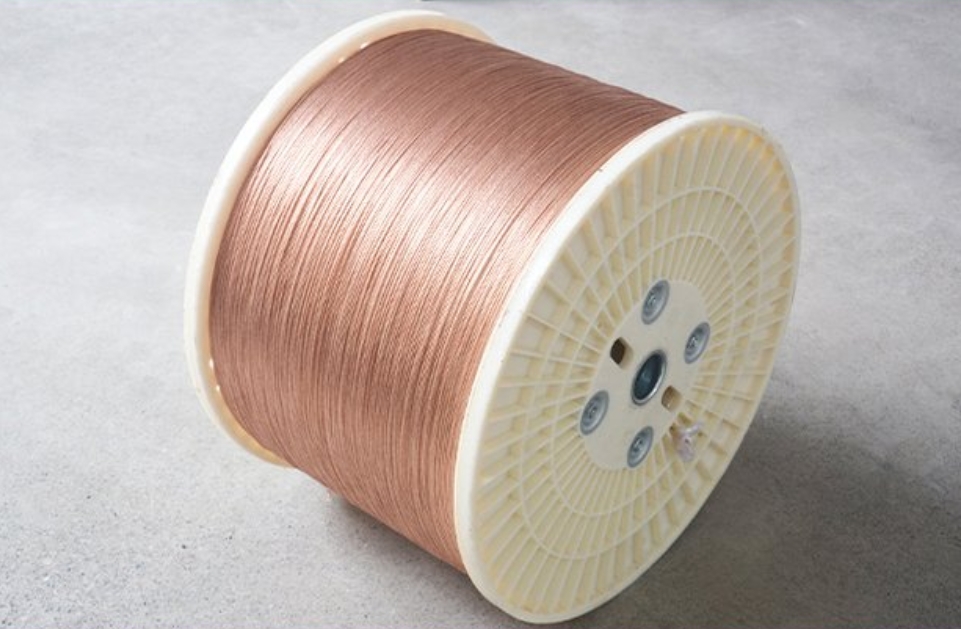

Ordinary Packaging With Plastic Spool:

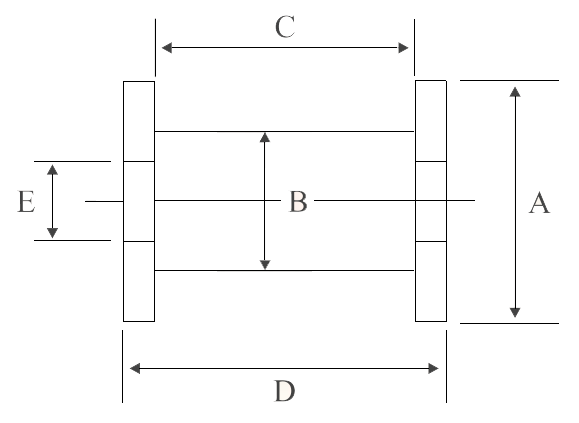

Dimensions of spool: DIN 130, DIN 160, DIN 185, DIN 200, DIN250, DIN 400, DIN 500, DIN630, DIN 780;

We export CCA wire to many countries, including Russia, Belarus, Türkiye, Mexico, India, Vietnam, Thailand, Malaysia, Indonesia, South Africa, Yemen, etc., and CCA wire(copper clad aluminum) is used to produce power cable, socket wires, coaxial RF cables, building electrical wire and cable, battery cables, welding cables, speaker cables, etc.

We have been producing copper clad aluminum wire CCA wire for 10 years and copper clad aluminum wires for 8 years, with rich production experience. When stranding different sizes of copper clad aluminum wires, we can judge the distance of the strands based on experience to ensure that the speed is increased during insulation production and there is no wire breakage or wire jumping phenomenon.
