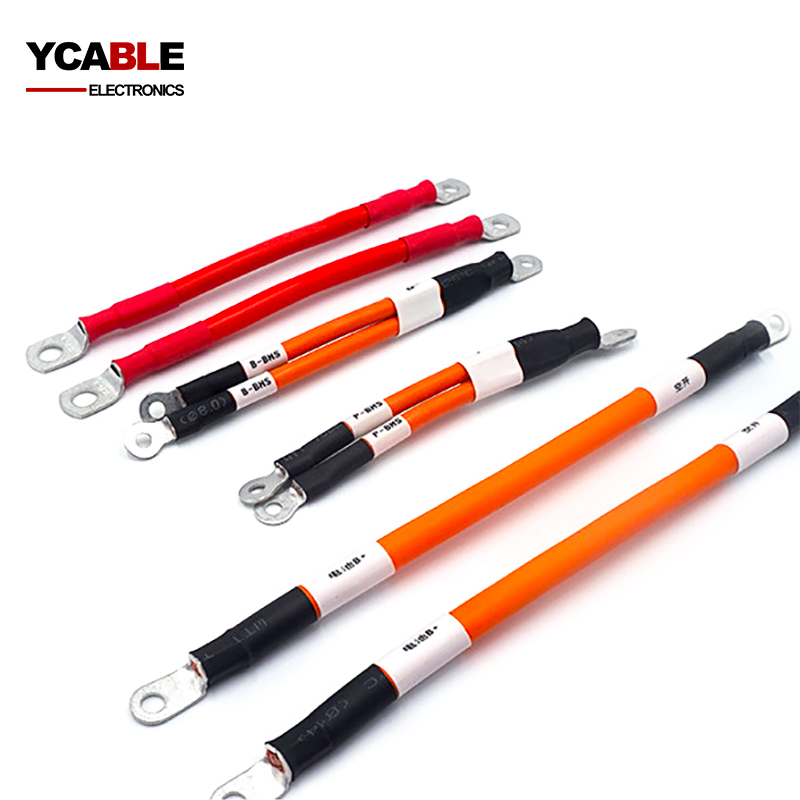

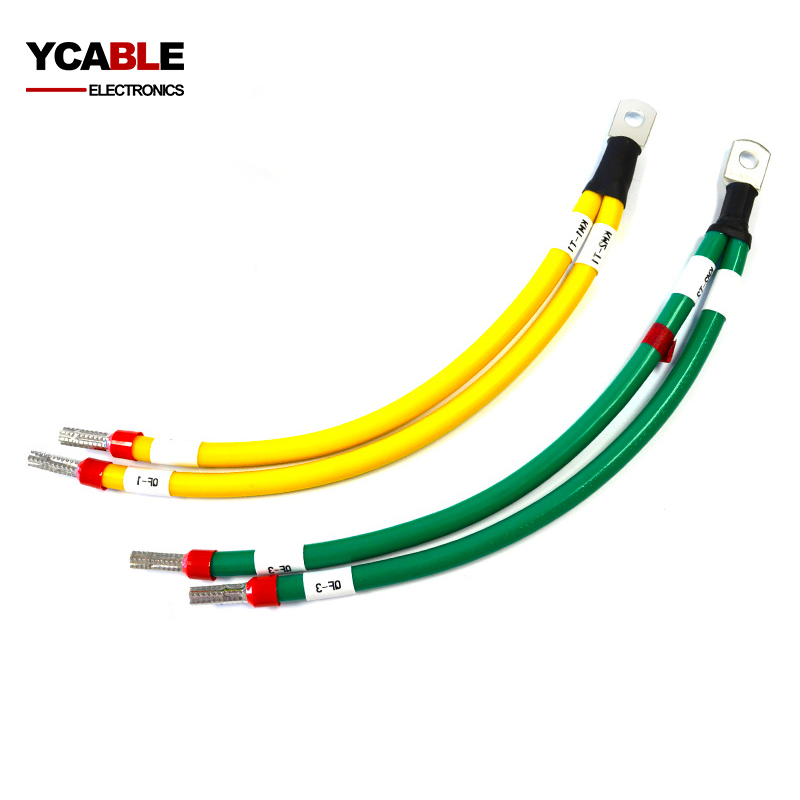

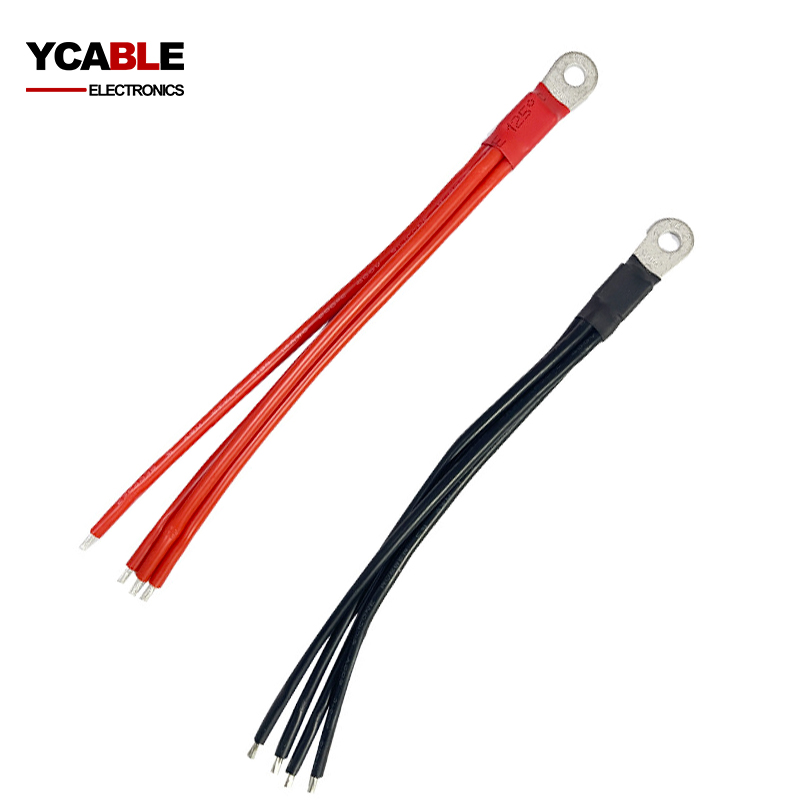

Battery Cable Lugs Assemblies
Battery Cable Lugs Assemblies
Item Number:Battery Cable Lugs Assemblies
- Pin:: -
- Connector:: According to customer's request to produce
- Type:: Custom Copper Ground Strap, Copper braided, Tinned copper braided
- Color:: Custom
- Length:: Custom
- Wire Gauge:: Custom
- Service:: OEM；Custom
Environmental Specifications:
Environmental Space – Non-plenum
Flame Test Method – CMR
Installation Temperature – 0 °C to +60 °C (+32 °F to +140 °F)
Operating Temperature – -20 °C to +60 °C (-4 °F to +140 °F)
Temperature Rating – 75 °C
General Specifications:
Cable Type
RG58 Coaxial Cable
Conductor, quantity
1
Cable Component Type
PE, PVC, Horizontal
Conductor Gauge, singles
23AWG
Conductor Type, singles
Solid/Stranded
Characteristics:
- Performance up to 250-300 MHz,
- Enhanced protection against crosstalk and system noise.
- There are many brands sold on the market, so everyone must choose a large brand to ensure the quality
- Suitable for car wiring harness
In
Contact Us Now
Categories
Custom Copper Ground Strap
| Electrical Specifications | |
| ITEM | Custom Copper Ground Strap |
| dc Resistance Unbalance, maximum | 5 % |
| dc Resistance, maximum | 7.61 ohms/100 m |
| Mutual Capacitance | 5.6 nF/100 m @ 1 kHz |
| Nominal Velocity of Propagation (NVP) | 69 % |
| Operating Frequency, maximum | 300 MHz |
| Operating Voltage, maximum | 80 V |
| Transmission Standards | ANSI/TIA-568-C.2 CENELEC EN 50288-6-1 ISO/IEC 11801 Class E |
| Dielectric Strength, minimum | 1500 Vac 2500 Vdc |
