best cable for 6mm2 solar panels twin 2 core solar cable 4mm or 6mm solar PV cable

2 core solar cable twin core solar cable

Item Number:twin core solar cable

Model: Twin Core Solar Cable
Size: 1.5mm, 4mm, 6mm - 300mm
Color: White/Blue/Black/Gray/Custom
Insulation: XLPO, XLPE, PVC
Shield: None
Jacket: XLPE, PVC
Packing: 305M(1000FT)/610M/1000M/Custom
OD: According to the size
Conductor Material: Bare Copper, tinned copper
Drain wire: None

Environmental Specifications:

Environmental Space – Non-plenum
Flame Test Method – Complies with UL 1581, IEC 60332-1
Installation Temperature – 0 °C to +120 °C

Operating Temperature – -20 °C to +120 °C

Temperature Rating – 120°C

General Specifications:

Cable Type

Twin Core Solar Cable

Conductor, quantity
2cores, twin core, copper or tinned copper

Cable Component Type
XLPE, PVC,

Conductor Gauge, singles
1.5mm2-300mm2

Conductor Type, singles
Stranded

Characteristics:

Conductor: Two cores made of high-stranded tinned copper, ensuring excellent conductivity and flexibility.
Insulation: XLPE (cross-linked polyethylene) or similar material, offering high thermal resistance and durability.
Outer Sheath: UV, ozone, and weather-resistant sheath that protects against harsh environmental conditions.
Voltage Rating: Typically rated for 600/1000V DC or 1500V DC, suitable for various photovoltaic systems.
Temperature Range: Operating temperature: -40°C to +90°C, with short-term peaks up to +120°C. UV and Weather
Resistance: Designed for prolonged outdoor exposure with excellent performance under direct sunlight.
Mechanical Properties: High tensile and abrasion resistance for better longevity and ease of handling during installation.
Flame Retardant: Complies with IEC, UL, and EN standards for flame retardancy.
Halogen-Free: Low smoke, halogen-free material for safer use in case of fire.

In general, A solar cable is a specialized wire designed to connect and transfer energy in photovoltaic (PV) systems. Key attributes include UV resistance, weather durability, and high voltage tolerance, ensuring safe and efficient power transmission between solar panels, inverters, and batteries.

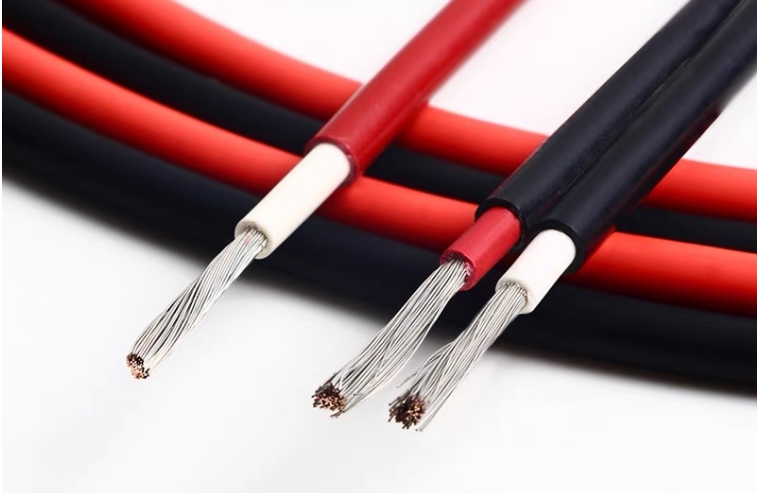

Twin Core Solar Cable

Twin Core Solar Cable Specifications
ITEM
Rated Voltage	600/1000V DC or 1500V DC
Operating Temperature Range	-40°C to +90°C (short-term up to +120°C)
Max. Conductor Temperature	120°C
UV Resistance	Yes (designed for direct sunlight exposure)
Weather Resistance	Ozone, moisture, and water-resistant
Min. Bending Radius	4 x outer diameter
Mechanical Strength	High tensile and abrasion resistance
Halogen-Free	Yes, low smoke halogen-free (LSHF)

Description

What is a Twin Core Solar Cable?

A twin core solar cable is a specialized electrical cable designed for photovoltaic (PV) systems, consisting of two insulated conductors within a single sheath. It is commonly used to connect solar panels to inverters or junction boxes.

Two Conductors: Each conductor is individually insulated, allowing for simultaneous transmission of positive and negative currents.
Outer Sheath: Provides additional mechanical protection and resistance to UV radiation, moisture, and extreme weather.
Compact Design: The twin core configuration reduces cable clutter and simplifies installation compared to using two single cables.
Application: Ideal for solar power systems where durability, weather resistance, and ease of installation are crucial. It is commonly used in residential, commercial, and industrial solar installations

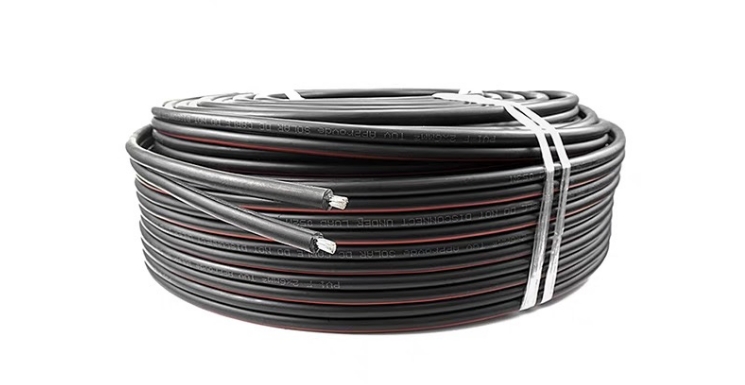

twin core solar cable

Advantages of Twin Core Solar Cable

Simplified Installation, Combines two conductors (positive and negative) into a single cable, reducing installation time and complexity.
Reduced Cable Clutter, Compact design minimizes the number of cables running between solar panels and inverters, making systems more organized.
High UV and Weather Resistance, Designed to withstand prolonged exposure to sunlight, moisture, and harsh environmental conditions.
Enhanced Safety, Double insulation and flame-retardant sheath reduce risks of electrical faults and fire hazards.
Durable and Long-Lasting, High tensile strength and abrasion resistance ensure durability over the system's lifespan, typically 25+ years.
Low Voltage Drop, High-quality tinned copper conductors ensure low resistance, minimizing energy loss.
Cost-Effective, Reduces overall cabling and labor costs compared to using two separate single-core cables.

2 core solar cable

No. Of cores x Construction (mm2)	Conductor Construction(n/mm)	Conductor Diameter (mm)	Outer Diameter (mm)
2x2.5mm	48*0.25	2	6.2*9.9
2x4.0mm	56*0.30	2.6	6.9*11.3
2x6.0mm	81*0.30	3.3	7.1*14.5
