Solar Panel Wire 4mm2 10 awg PV Wire Solar Extension Cable Solar Panel Cable Solar Cable

10 AWG Solar Cable

Item Number:10 AWG Solar Cable

Model: Solar Cable
Size: 10AWG
Color: White/Blue/Black/Gray/Custom
Insulation: XLPO, XLPE, PVC
Shield: None
Jacket: XLPE, PVC/Custom
Packing: 305M(1000FT)/610M/1000M/Custom
OD: Custom
Conductor Material: Bare Copper, tinned copper
Drain wire: None

Environmental Specifications:

Environmental Space – Non-plenum
Flame Test Method – CMR
Installation Temperature – 0 °C to +60 °C (+32 °F to +140 °F)

Operating Temperature – -20 °C to +60 °C (-4 °F to +140 °F)

Temperature Rating – 75 °C

General Specifications:

Cable Type

Solar Cable

Conductor, quantity
1

Cable Component Type
XLPE, PVC,

Conductor Gauge, singles
1.5mm2-300mm2

Conductor Type, singles
Stranded

Characteristics:

Conductor: Stranded tinned or bare copper, providing flexibility and corrosion resistance.
Voltage Rating: 600V to 2000V DC, depending on the specification.
Temperature Range: -40°C to +90°C (operating), can handle up to 120°C short-term.
Insulation: XLPE or cross-linked polyethylene, offering UV resistance and durability.

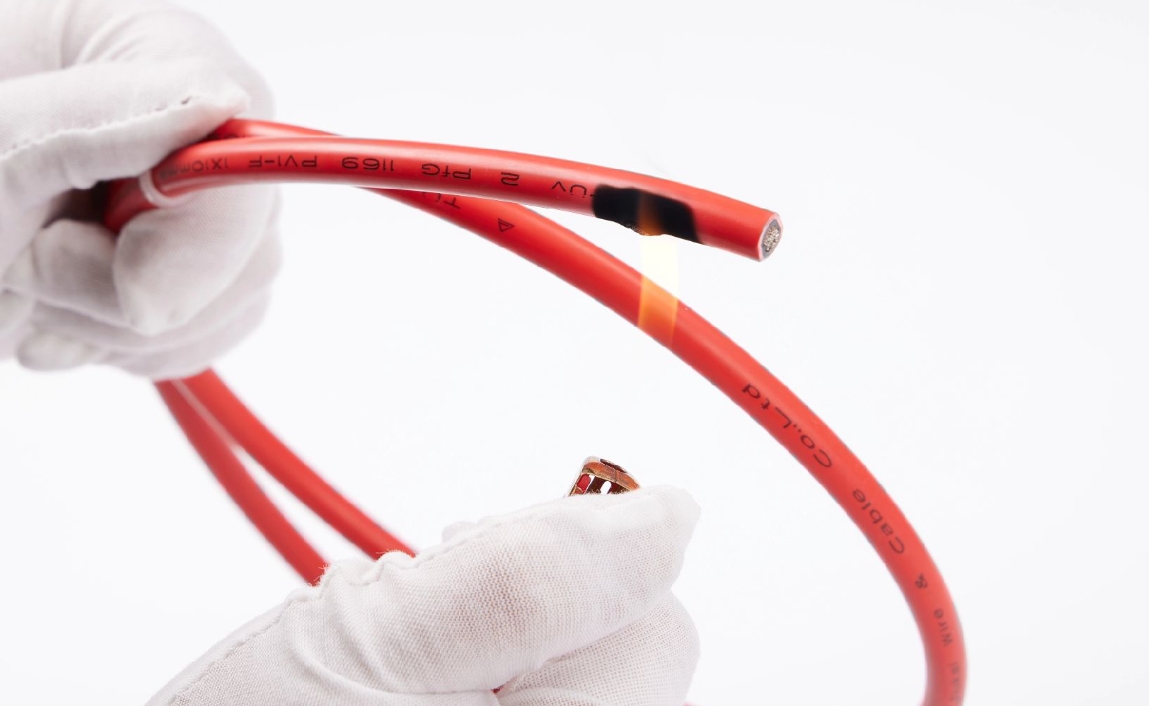

Flame Resistance: Complies with fire safety standards (UL, IEC).
Weather Resistance: UV and ozone resistant for outdoor use. Certifications: UL 4703, TÜV, or IEC 62930, ensuring quality for photovoltaic systems.
Outer Diameter: Typically around 5.5-6.0 mm.
Current Capacity: Up to 40A, depending on installation conditions.
Low Smoke Emission: Suitable for safety-critical applications.

In general, A solar cable is a specialized wire designed to connect and transfer energy in photovoltaic (PV) systems. Key attributes include UV resistance, weather durability, and high voltage tolerance, ensuring safe and efficient power transmission between solar panels, inverters, and batteries.

Solar Cable

Electrical Specifications
ITEM	Solar Cable
Cross-Section Area	5.26mm2
dc Resistance, maximum	≤ 3.39 Ω/km
Current Carrying Capacity	40A (free air)
Dielectric Strength	≥ 20 kV/mm
Temperature Range	-40°C to +90°C (up to 120°C for short duration)
Operating Voltage, maximum	DC:1.5KV AC:1.0/1.0KV
Flame Retardant	Compliant with UL 1581 and IEC 60332-1
Weight	~60 kg/km

Description

What is a Solar Cable?

A solar cable is a specialized wire that connects and transfers energy in photovoltaic (PV) systems. Key attributes include UV resistance, weather durability, and high voltage tolerance, ensuring safe and efficient power transmission between solar panels, inverters, and batteries. These cables typically use XLPE insulation for long-term outdoor exposure. Common types include single-core and twin-core cables. They are available in various sizes, such as 10 AWG and 12 AWG, optimized for different current ratings.

Is 10 Gauge Wire Good for Solar Panels?

Yes, 10 gauge solar cable is widely regarded as a reliable option for solar panels due to its balance of current-carrying capacity, voltage drop control, and flexibility. This size is commonly used in residential solar systems to connect panels to combiner boxes, charge controllers, and inverters.

Popularly searched factors like wire ampacity and maximum power output suggest that 10 AWG wire can handle up to 30-40 amps, making it suitable for typical PV systems with 12V, 24V, or 48V configurations.

Additionally, its low resistance helps minimize energy loss over longer distances, which is critical in off-grid and rooftop solar installations.

For outdoor applications, UV-resistant insulation and TÜV/UL certification are essential features, ensuring safety and durability. Thus, 10 gauge wire is often recommended for most medium to large-scale solar installations.

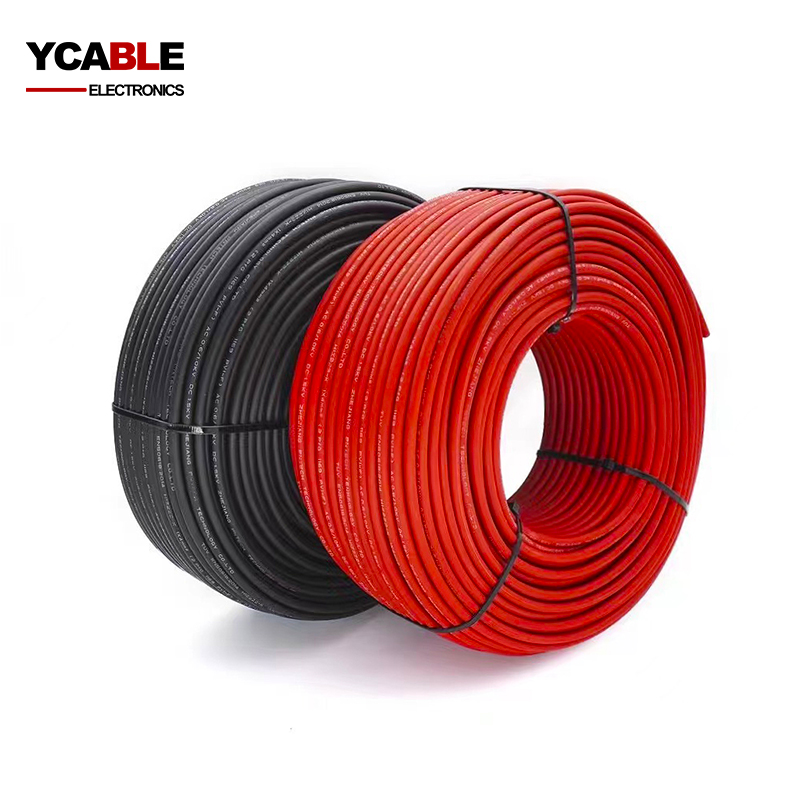

10awg solar cable

How Many Amps Will 10 Gauge Solar Wire Carry?

A 10 gauge solar wire can carry 30 to 40 amps, depending on key factors like wire length, temperature, and installation method (e.g., in free air or conduit). In solar applications, ensuring proper ampacity is critical to prevent energy loss and overheating, especially when connecting solar panels, charge controllers, and inverters.

For shorter distances, 10 AWG wire can handle up to 40 amps efficiently. However, if the wire run is long, calculating voltage drop becomes essential to maintain system performance. Commonly searched terms such as wire ampacity chart, voltage drop calculator, and solar cable size guide highlight the importance of proper sizing for solar installations.

When selecting 10 AWG solar cable, look for UL or TÜV-certified solar cables with UV-resistant insulation and high temperature tolerance to ensure safety and durability in outdoor environments.

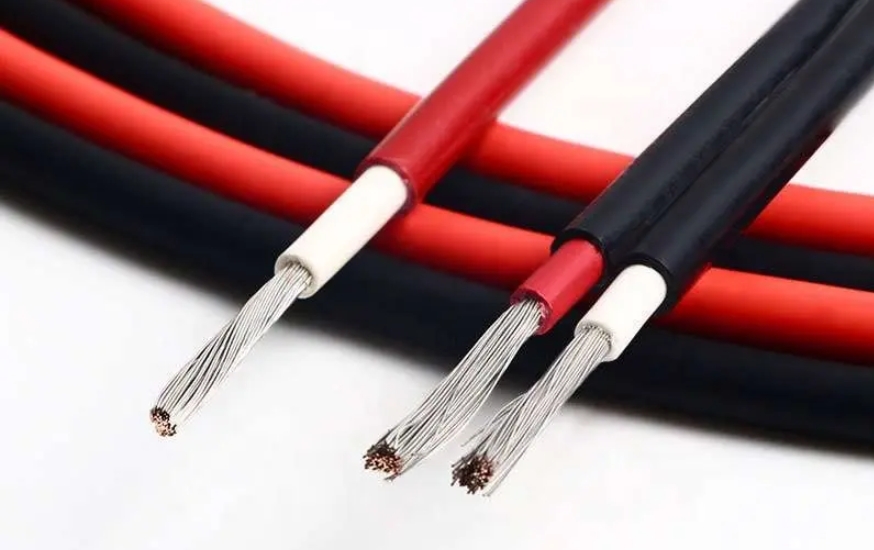

xlpe pv cable
