Transparent Battery Cable Manufacturer Automotive Car Power Cables 4GA 8GA 0GA

Transparent Battery Cable

Item Number:Transparent Battery Cable

Model: Transparent Battery Cable
Size: 0GA, 2GA, 4GA, 8GA, 10GA/Custom
Color: Red/Blue/Yellow/Orange/Custom
Insulation: PVC/Smoke PVC/Transparent PVC
Shield: None
Jacket: None
Packing: 100FT/50FT/250FT/Custom
OD: Custom
Conductor Material: CCA/Copper clad aluminum/Cu/OFC/Tinned Copper
Drain wire: None

Environmental Specifications:

Environmental Space – Non-plenum
Flame Test Method – CMR
Installation Temperature – 0 °C to +60 °C (+32 °F to +140 °F)

Operating Temperature – -20 °C to +60 °C (-4 °F to +140 °F)

Temperature Rating – 75 °C

General Specifications:

Cable Type
Transparent Battery Cable

Conductor, quantity
1

Cable Component Type
PVC, Horizontal

Conductor Gauge, singles
0-28AWG

Conductor Type, singles
Solid/Stranded

Characteristics:

Transparent Battery Cable

Transparent Battery Cable

Electrical Specifications
ITEM	Custom Transparent Battery Cable
Size	0GA 2GA 4GA 8GA 10GA 12GA 14GA 16GA 18GA 20GA
dc Resistance, maximum	7.61 ohms/100 m
Operating Voltage, maximum	80 V
Transmission Standards	ANSI/TIA-568-C.2 CENELEC EN 50288-6-1 ISO/IEC 11801 Class E
Dielectric Strength, minimum	1500 Vac 2500 Vdc

Description

Transparent Battery Cable Manufacturer

In the intricate world of vehicular electrical frameworks, battery cables emerge as the pivotal conduits, bridging your power hub, the battery, to the myriad of starting, charging, and electrical subsystems. YCABLE ELECTRONICS stands as your artisanal source for a broad spectrum of battery cable and wire necessities. Our inventory spans a versatile range from the robust 4/0 gauge down to the nimble 20 AWG. No matter your preference—be it SGT, SGX, or the versatile parallel/duplex configurations, even the crystal-clear battery cables—rest assured, YCABLE ELECTRONICS has your requirements meticulously cataloged. And the icing on the cake? Each strand of our automotive conductors boasts a formidable resistance to the everyday automotive adversaries: oil, grease, and wear-and-tear, all while ensuring compatibility with high-amp, Herculean inline fuse holders.

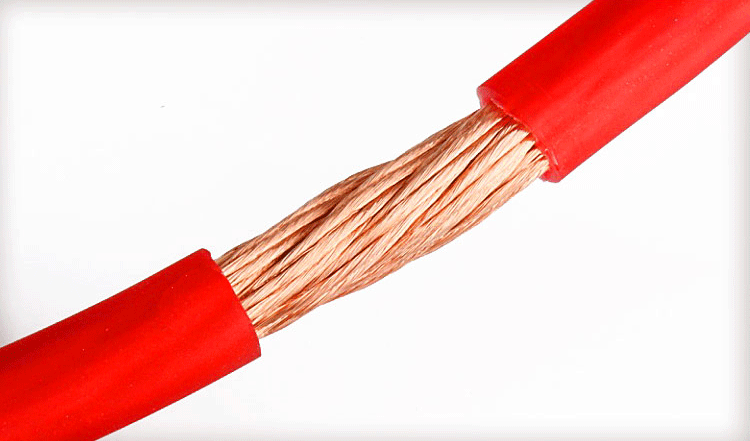

transparent battery cable

Consider YCABLE ELECTRONICS your comprehensive hub for all things battery cable and accessory-related. To achieve a flawless battery setup, marry your choice of cable with our electrical eyelets or lugs, not forgetting the protective battery terminal covers. Poised to elevate your vehicle's electrical ensemble with battery cables and additional accouterments? Dive into our assortment of supplementary battery aids to refine your cable ensemble or extend your battery's lifespan.

Battery Cable Specification

AWG	OD		AREA(mm2)	Resistance (Ω/km)
AWG	(mm)	(inch)	AREA(mm2)	Resistance (Ω/km)
2/0 AWG	9.27	0.3548	67.43	0.26
1/0 AWG	8.25	0.3249	53.49	0.33
2 AWG	6.54	0.2576	33.62	0.53
4 AWG	5.19	0.2043	21.15	0.84
6 AWG	4.11	0.162	13.3	1.33
8 AWG	3.26	0.1285	8.37	2.11
10 AWG	2.59	0.1019	5.23	3.36
12 AWG	2.05	0.0808	3.332	5.31
14 AWG	1.63	0.0541	2.075	8.45
16 AWG	1.29	0.0508	1.318	13.5
18 AWG	1.02	0.0403	0.8107	21.4
20 AWG	0.813	0.032	0.5189	33.9
22 AWG	0.643	0.0253	0.3247	54.3

Ideal Applications Include:

Automotive Battery Cables
Marine / Boat Battery Cables
Solar Battery Bank Arrays
Forklift Charging Cables
Power Inverter Cables
Welding Cable Leads
Amplifier Wiring

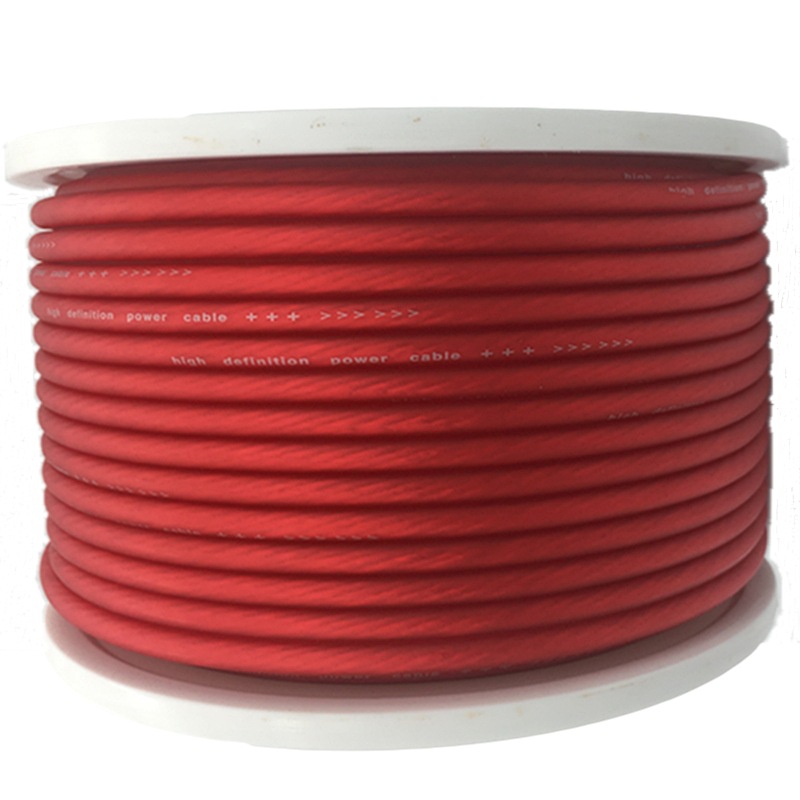

4 GA battery cable

Battery Cable Customization

At our factory, the power of choice is in your hands: select the desired color, length, and terminations for your cables. Our copper lugs (ring terminals) and the distinguished copper top post battery terminals are finished with a tin coat, offering a shield against corrosion—a clear step above bare copper alternatives.

These copper connectors are affixed to your chosen cable with a UL certified crimping technique, recommended directly by us, the creators. We then encapsulate the joint with a color-coordinated adhesive heat shrink, fortified with a glue lining designed to fuse the seal against air and moisture intrusion.

Should your project require a unique touch in terms of length or terminal types beyond our standard offerings, don't hesitate to reach out. We're here to tailor our solutions to your specific demands.
