Microphone Cable

Microphone Cable

Item Number:Microphone Cable

• Model: Microphone Cable
• Size: 2x22AWG/2x24AWG/2x26AWG/2x20AWG
• Color: Black/Gray/Blue/Purple/Pink/White/Custom
• Insulation: Soft PVC/Transaprent PVC/Smoke PVC
• Shield: Al-Foil Shielding + Braiding Copper Shielding
• Jacket: Soft PVC/Transaprent PVC/Smoke PVC
• Packing: 25FT/50FT100FT/100M/300M
• OD: 6.0mm/6.5mm
• Conductor Material: Tinned Copper/Bare Copper /CCA
• Drain wire: Tinned Copper

Environmental Specifications:

Environmental Space – Non-plenum
Flame Test Method – Custom
Installation Temperature –  0 °C to +70 °C

Operating Temperature –  -20 °C to +80 °C

Temperature Rating –  70 °C

General Specifications:

Cable Type

Microphone Cable

Pairs, quantity
1

Cable Component Type
Horizontal/Twist

Conductor Size, singles
20AWG/22AWG/24AWG/26AWG

Conductor Type, singles
Stranded

Characteristics:

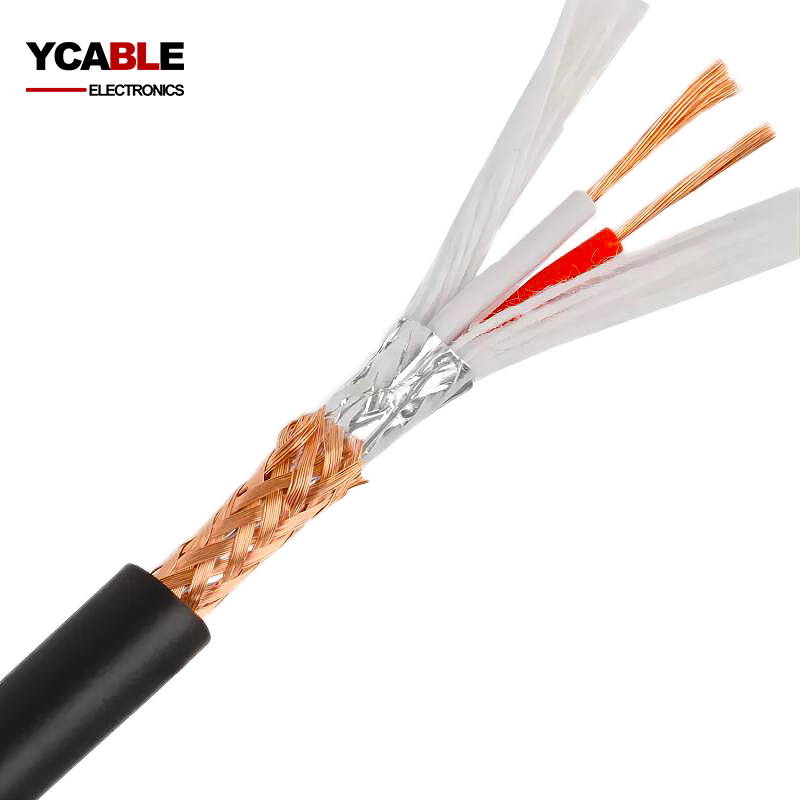

• 2 conductors stranded bare copper, polyethylene insulated, overall braid shielded, PVC jacketed microphone cable
• Adopting the pure copper conductor, has low attenuation, low signal loss, and a high transmission rate utilizing.
• The aluminum foil shield and copper braiding shield make it a much stronger anti-interference ability.
• Flexible soft elastic PVC Jacket for Ultimate Wire Flexibility

Microphone cable: Line-level connection of balanced microphones and audio equipment, Fixed and mobile applications. YCABLE gives you an Excellent price/quality ratio and great performance for the microphone cables.
